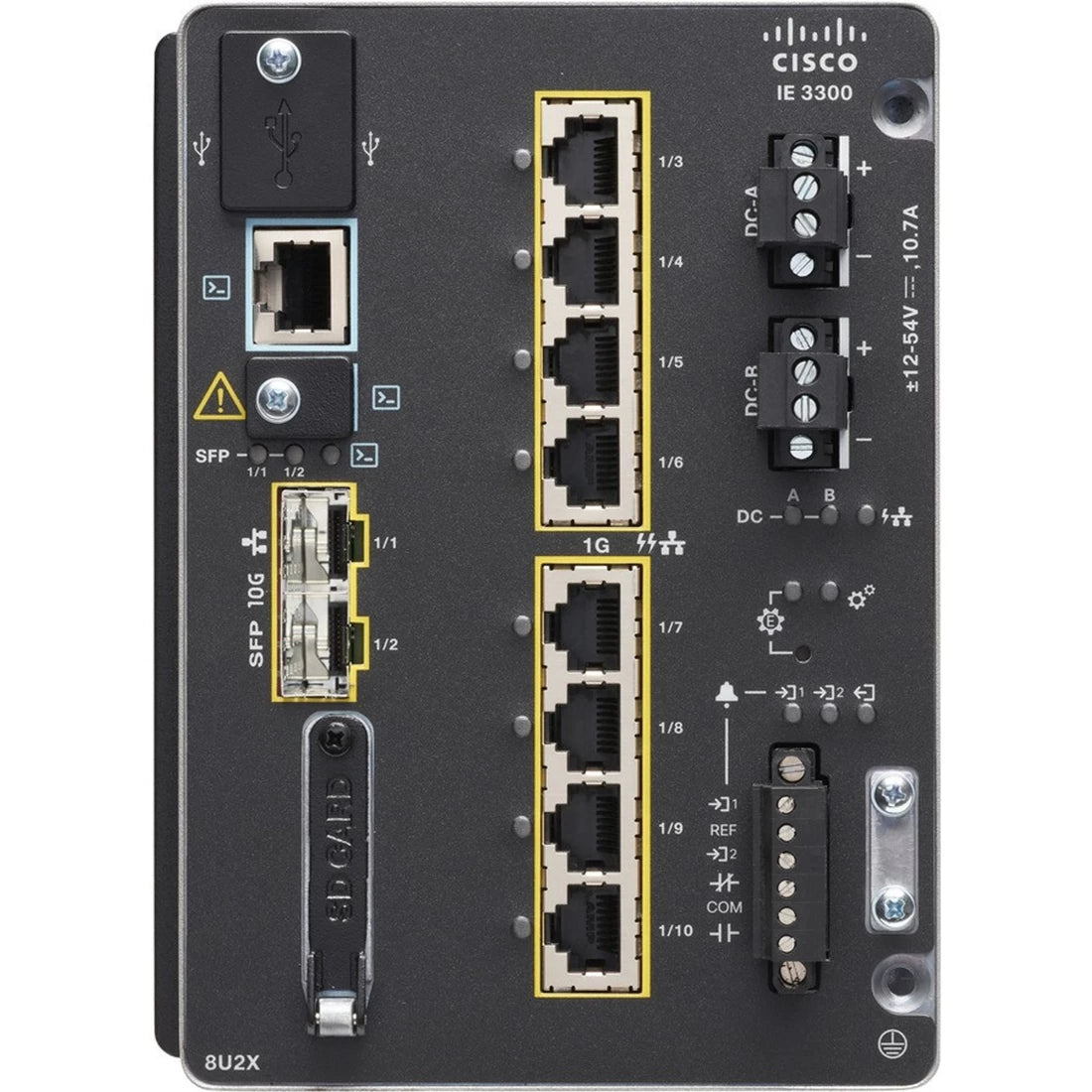

Cisco IE-3300-8U2X-A Catalyst IE3300 Rugged Series Managed Switch F/S | USED

Cisco IE-3300-8U2X-A Catalyst IE3300 Rugged Series Managed Switch F/S | USED

Part Number: IE-3300-8U2X-A

Condition: Used

**CISCO IE-3300-8U2X-A Catalyst Ie3300 Rugged Series - Switch Advantage - Managed - 8 X 10/100/1000 (poe++) + 2 X 1 Gigabit / 10 Gigabit Sfp+ - Din Rail Mountable - Poe++ (480 W) :**

**Key Features :**

Device Type : Switch - 10 Ports - Managed

Enclosure Type : Din Rail Mountable

Subtype : Gigabit Ethernet

Ports : 8 X 10/100/1000 (poe++) + 2 X 1 Gigabit / 10 Gigabit Sfp+

Power Over Ethernet (poe) : Poe++

Poe Budget : 480 W

Capacity : Queues: 8 ¦ Igmp Multicast Groups: 1000 ¦ Vlans Supported: 256 ¦ Indirect Ipv4 Routes: 2000 ¦ Indirect Ipv6 Routes: 512 ¦ Stp Instances: 128 ¦ Access Control Lists (pacl/vacl/racl): 1500

Mac Address Table Size : 8000 Entries

Jumbo Frame Support : 8996 Bytes

Routing Protocol : Ospf, Bgp-4, Rip-1, Rip-2, Eigrp, Igmpv2, Hsrp, Igmp, Vrrp, Pim-sm, Static Ip Routing, Pim-dm, Igmpv3, Eigrp For Ipv6, Msdp, Policy-based Routing (pbr), Is-isv6, Bgp For Ipv6, Vrrp6, Mstp, Stp, Is-isv4

Remote Management Protocol : Snmp 1, Snmp 2, Rmon, Telnet, Snmp 3, Http, Https, Tftp, Ssh, Scp, Netconf, Restconf, Ntp, Icmp, Dhcp, Ipv4, Ipv6, Yang, Tacacs+, Radius

Authentication Method : Secure Shell (ssh), Radius, Tacacs+

features : Modular Design, Bootp Support, Arp Support, Igmp Snooping, Syslog Support, Diffserv Support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (rstp) Support, Port Aggregation Protocol (pagp) Support, Access Control List (acl) Support, Quality Of Service (qos), Dhcp Server, Virtual Route Forwarding-lite (vrf-lite), Dynamic Arp Inspection (dai), Uni-directional Link Detection (udld), Fanless, Lacp Support, Lldp Support, Dhcp Relay, Port Security, Remote Switch Port Analyzer (rspan), Management Information Base (mib), Neighbor Discovery Protocol (ndp), Static Routing, Flexible Netflow (fnf), 802.1x Authentication, Precision Time Protocol (ptp), Macsec Support, Profinet, Igmp Filtering, Ip Source Guard, Resilient Ethernet Protocol (rep), Smartport Technology, Igmp Querier, Voice Vlan, Ra Guard, Guest Vlan, User Datagram Protocol (udp), Switched Port Analyzer (span), Protocol Independent Multicast (pim), Vlan Trunking Protocol (vtp) V.3, First Hop Security (fhs), Bpdu Guard, Q-in-q Tunneling, Vlan Trunking Protocol (vtp) V.2, Media Redundancy Protocol (mrp), Etherchannel Support, CISCO Discovery Protocol (cdp), Rapid Pvst+ (rpvst+), Dns Support

Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.3ah, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3bt

Ram : 4 Gb

Flash Memory : 1.5 Gb

Built-in Devices : Sd Card Reader

**Expansion / Connectivity :**

Interfaces :

8 X 10/100/1000 Base-t Rj-45 Poe++

2 X 1/10gbase-x Sfp+

1 X Console (mini-usb) Type B

2 X Alarm Input

1 X Alarm Output

1 X Serial (rs-232) Rj-45

**Power :**

Max Supported Qty : 2

Power Redundancy : Optional
