(特價全新水貨) FORTINET FortiGate FG-100F 100F NG Firewall - 100% NEW
Hurry up! Only 2 left
Couldn't load pickup availability
(特價全新水貨) FORTINET FortiGate FG-100F 100F NG Firewall - 100% NEW
Sale price
HKD 28,000.00
Regular price
HKD 36,000.00
The FortiGate 100F series combines next generation firewall and SD-WAN capabilities for mid-sized to large enterprise distributed locations. Powered by purpose-built Secure SD-WAN ASIC, FortiGate 100F delivers optimal performance for business-critical applications along with best security effectiveness.
|
|

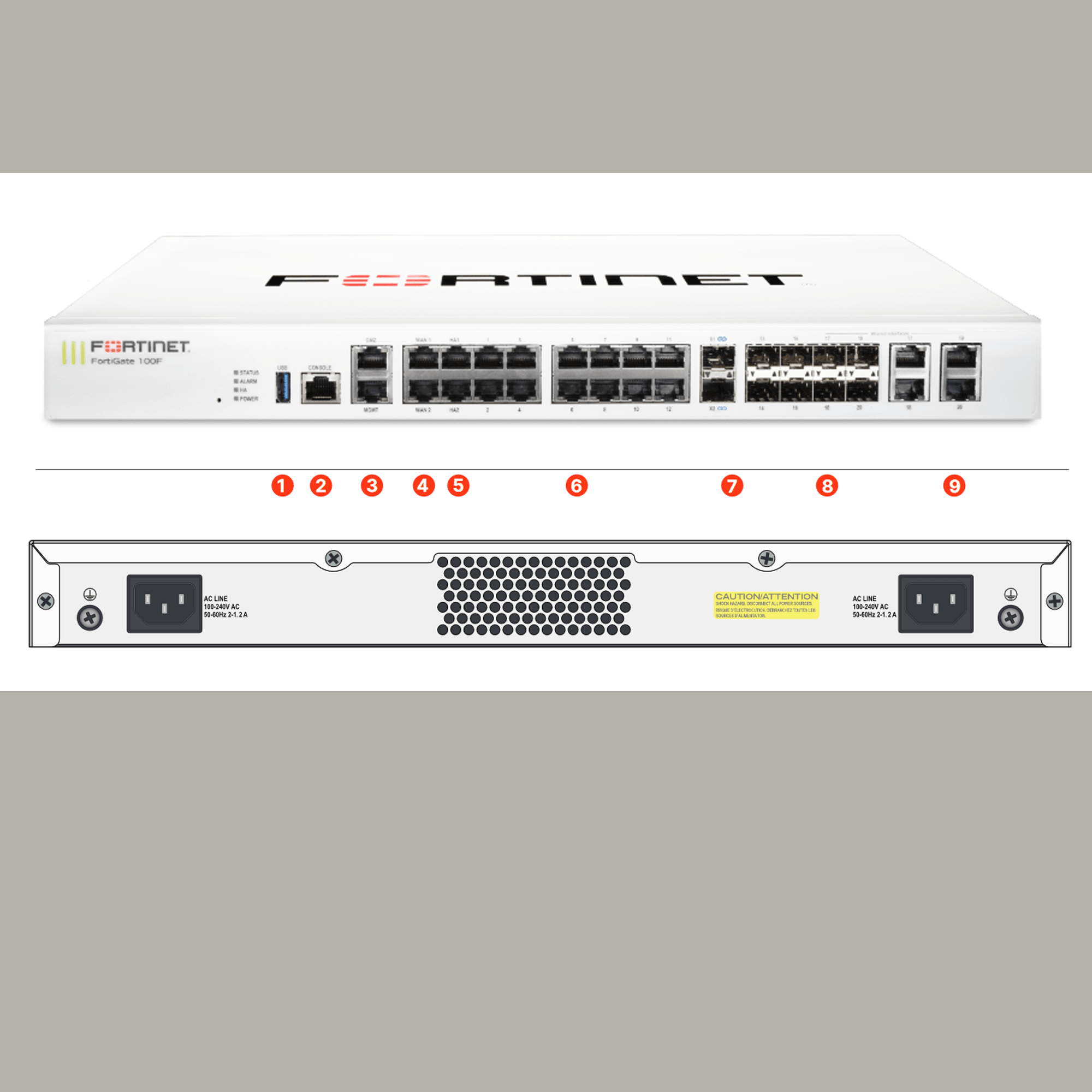

FORTIGATE 100F | FORTIGATE 101F |
|---|---|---|
| Hardware Specifications | ||
| GE RJ45 Ports | 12 | |
| GE RJ45 Management/HA/DMZ Ports | 1 / 2 / 1 | |
| GE SFP Slots | 4 | |
| 10 GE SFP+ Slots | 2 | |
| GE RJ45 WAN Ports | 2 | |
| GE RJ45 or SFP Shared Ports * | 4 | |
| USB Port | 1 | |
| Console Port | 1 | |
| Internal Storage | — | 1x 480 GB SSD |
| Included Transceivers | 0 | |
| System Performance — Enterprise Traffic Mix | ||
| IPS Throughput2 | 2.6 Gbps | |
| NGFW Throughput2, 4 | 1.6 Gbps | |
| Threat Protection Throughput2, 5 | 1 Gbps | |
| System Performance | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 20 / 18 / 10 Gbps | |
| Firewall Latency (64 byte UDP packets) | 5 μs | |
| Firewall Throughput (Packets Per Second) | 15 Mpps | |
| Concurrent Sessions (TCP) | 1.5 Million | |
| New Sessions/Second (TCP) | 56,000 | |
| Firewall Policies | 10,000 | |
| IPsec VPN Throughput (512 byte)1 | 11.5 Gbps | |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,500 | |
| Client-to-Gateway IPsec VPN Tunnels | 16,000 | |
| SSL-VPN Throughput | 750 Mbps | |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 | |
| SSL Inspection Throughput (IPS, avg. HTTPS) 3 | 1 Gbps | |
| SSL Inspection CPS (IPS, avg. HTTPS)3 | 1,800 | |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS)3 | 135,000 | |
| Application Control Throughput (HTTP 64K) 2 | 2.2 Gbps | |
| CAPWAP Throughput (1444 byte, UDP) | 15 Gbps | |
| Virtual Domains (Default / Maximum) | 10 / 10 | |
| Maximum Number of FortiSwitches Supported | 24 | |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 64 / 32 | |
| Maximum Number of FortiTokens | 5,000 | |
| Maximum Number of Registered FortiClients | 600 | |
| High Availability Configurations | Active / Active, Active / Passive, Clustering | |
| Dimensions | ||
| Height x Width x Length (inches) | 1.73 x 17 x 10 | |
| Height x Width x Length (mm) | 44 x 432 x 254 | |
| Form Factor | Rack Mount, 1 RU | |
| Weight | 7.25 lbs (3.29 kg) | 7.56 lbs (3.43 kg) |
| Environment | ||
| Power Required | 100–240V AC, 60–50 Hz | |
| Maximum Current | 100V / 1A, 240V / 0.5A | |
| Power Consumption (Average / Maximum) | 35.1 W / 38.7 W | 35.3 W / 39.1 W |
| Heat Dissipation | 119.77 BTU/h | 121.13 BTU/h |
| Environment | ||
| Operating Temperature | 32–104°F (0–40°C) | |
| Storage Temperature | -31–158°F (-35–70°C) | |
| Operating Altitude | Up to 7,400 ft (2,250 m) | |
| Humidity | 10–90% non-condensing | |
| Noise Level | 40.4 dBA | |
| Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI | |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6 | |
Note: All performance values are “up to” and vary depending on system configuration.
1. IPsec VPN performance test uses AES256-SHA256.
2. IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured with Logging enabled.
3. SSL Inspection performance values use an average of HTTPS sessions of different cipher suites.
4. NGFW performance is measured with Firewall, IPS and Application Control enabled.
5. Threat Protection performance is measured with Firewall, IPS, Application Control and Malware Protection enabled.
