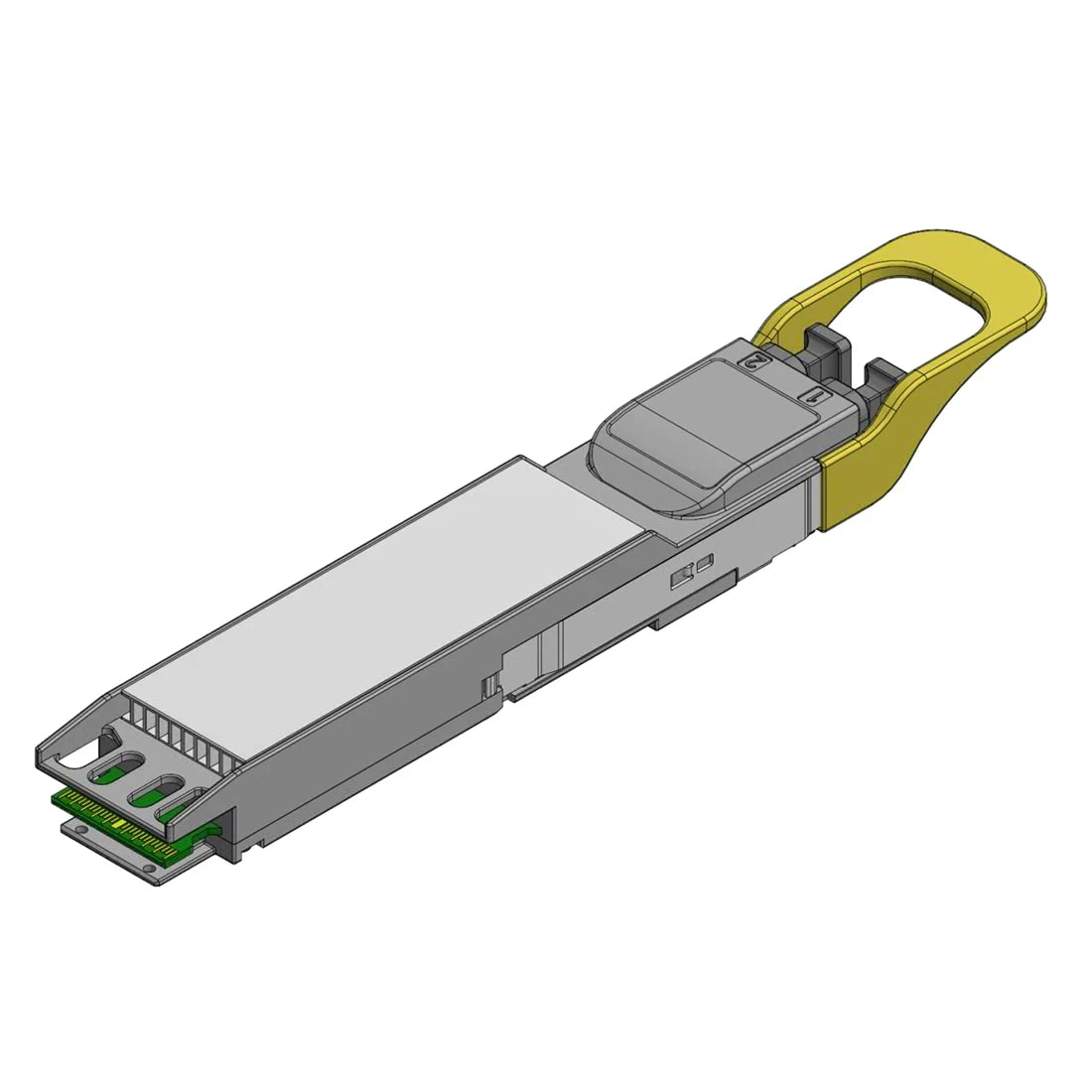

NVIDIA MMS4X00-NM-T Twin Port Transceiver 800Gbps 2X400GbE OSFP 2XMPO 1310nm SMF UP to 500m Finned

|
Product Overview
NVIDIA MMS4X00-NM-T Twin Port Transceiver 800gbps 2x400gbe Osfp 2xmpo 1310nm Smf Up To 500m Finned
Overview
The NVIDIA MMS4X00-NM-T Is An Ethernet 800gb/s 2x400gb/s Twin-port Osfp, 2xdr4 Single Mode, Parallel, 8-channel Transceiver Using Two, 4-channel Mpo-12/apc Optical Connectors At 400gb/s Each. The Parallel Single Mode, Datacenter Reach 8-channel (2xdr4) Design Uses 100g-pam4 Modulation, And Has A Maximum Fiber Reach Of 500-meters Using 8 Single Mode Fibers. The 100-meter Length Assumes Two Optical Patch Panels In The Link
The Twin-port 2xdr4 Transceiver Is A Key NVIDIA Innovation With Two Internal Transceiver Engines Enabling 128-ports Of 400gb/s In A 64 Cages Spectrum-4 Switches.
The Spectrum-4 Switches Require Finned-top Osfp Shells For Extra Transceiver Cooling. The Main Application For Mms4x00-ns-t Is Linking Two Switches Together With Up To 500-meters.
The Transceiver Combinations Guarantee Optimal Operation In NVIDIA End-to-end Ethernet Systems And A Rigorous Production Tested To Ensure The Best Out-of-the-box Installation Experience, Performance, And Durability.
Key Features
800g 2xdr4 Single Mode Transceiver
8-channels Of 100g-pam4 Electrical Modulation
Two Mpo-12/apc Optical Connectors
Two Ports Of 4-channel 100g-pam4 Optical Modulation
Supports Two Straight 400gb/s Or Two 1:2 Splitter Fiber Cables For 200gb/s
Finned-top Osfp For Air-cooled Switches
1310nm Laser
Maximum Reach: 500m
17-watts Max Power
Single 3.3v Power Supply
Class 1 Laser Safety
Hot Pluggable, Rohs Compliant
Osfpmsa.org Compliant
Cmis 4.0 Compliant
Case Temperature Range Of 0°c To +70°c
Condition:
New Factory Sealed.
Availability:
In Stock.
Our Warranty:
90 Days.
