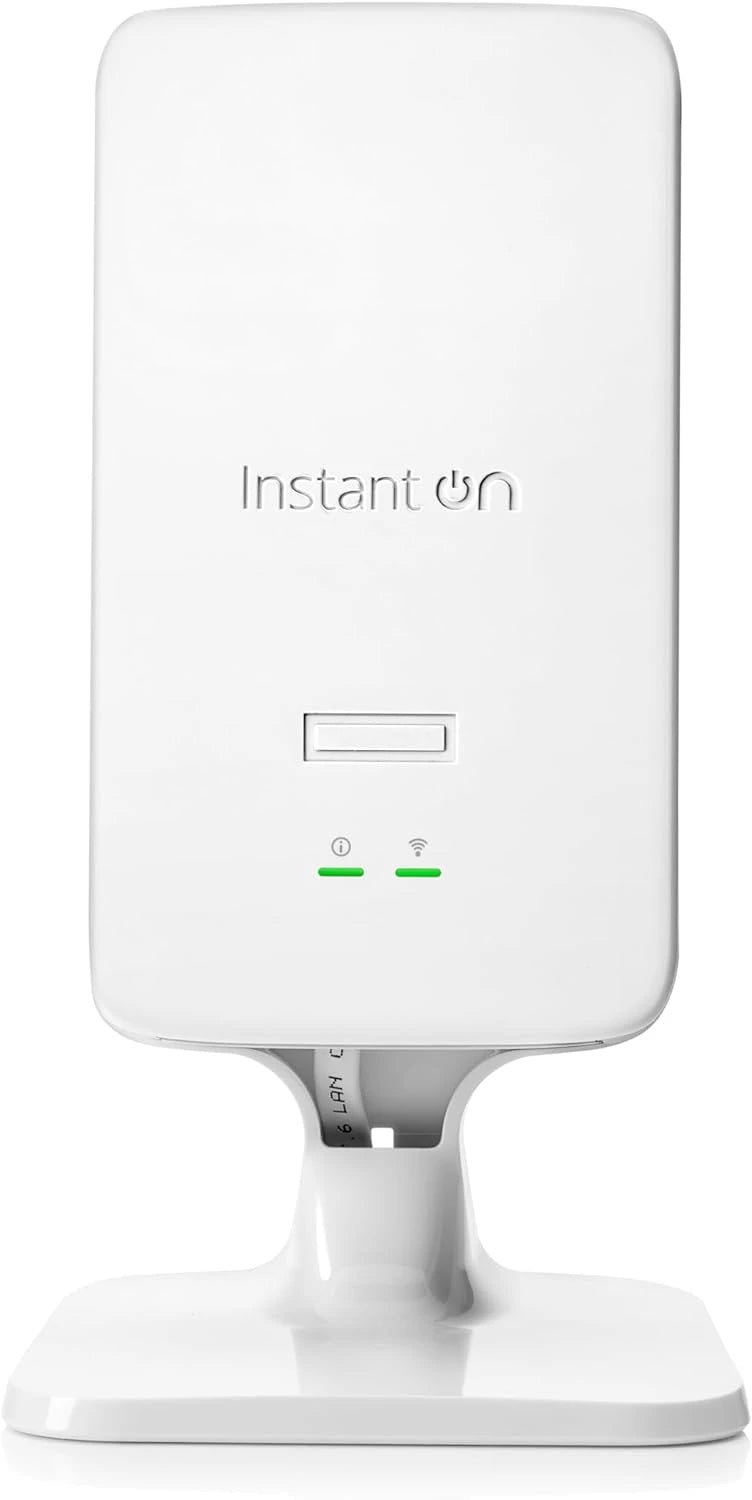

HPE S1U75A Networking Instant On Access Point Dual Radio 2x2 Wi-Fi 6 (US) AP22D | USED

HPE S1U75A Networking Instant On Access Point Dual Radio 2x2 Wi-Fi 6 (US) AP22D | USED

Part Number: S1U75A

Condition: Used

The HPE Networking Instant On Access Points Ap22d Is The More Versatile Version Of The Ap22. It Has The Same Antenna Array And

Spatial Streams (2x2:2) But Has A 2.5 Gbe Uplink Port And Four 1 Gbe Downlink Ports For Hardwired Devices. The Ap22d Is Great For Ip

Phones Or Receipt Printers In Areas That Need More Ethernet Ports And Only One In-room Ethernet Port Is Available.

**Key Features :**

**Certifications**

Wi-fi Alliance Certified (wfa) 802.11ax With (wi-fi 6), Wpa2, Wpa3

**input Voltagepoe:**

802.3bt (class 6) Full Functionality Or 802.3at (class 4) Limited Functionality Dc Power (48v)

poe In: 802.3at/802.3bt

poe Out: 2x 15w Poe (802.3af)

**wi-fi Antennaantennas:**

dual Semi-directional 2x2 Mimo

antenna Gain: 5.2 Dbi In 2.4ghz And 5.4 Dbi In 5 Ghz

maximum Transmit Power:

5 Ghz Band: +21 Dbm (+18 Dbm Per Chain, 3 Db Mimo Gain)

2.4 Ghz Band: +20 Dbm (+17 Dbm Per Chain, 3 Db Mimo Gain)

**connectivity, Standard**

ultra-fast 802.11ax

**ports**

1x 2.5 Gbe Base-t Poe Class 4/6 Uplink

2x 1 Gbe Base-t Poe Class 3 Downlink

2x 1 Gbe Base-t Downlink

Dc Power Connector

Led Status Indicators

Reset/led Control Button

Kensington Security Slot

**mounting**

gang Wall Box-mount Kit Or Desk-mount Kit

**power Consumption**

51w (poe) Or 50w (dc)

**radio Coverage**

dual-radio 802.11ax

2x2 5 Ghz/2.4 Ghz Mimo
