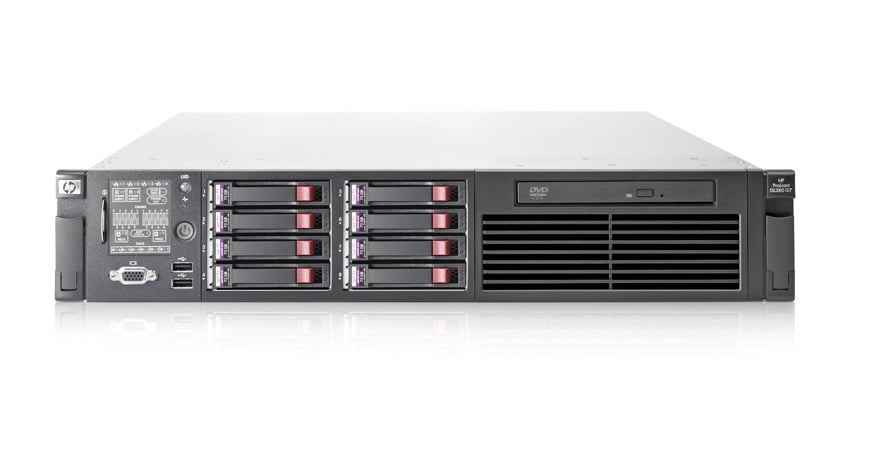

HPE 656765-S01 Proliant DL380 G7 X5660 2P 24G 8Sff Server/S-Buy | USED

HPE 656765-S01 Proliant DL380 G7 X5660 2P 24G 8Sff Server/S-Buy | USED

Part Number: 656765-S01

Condition: Used

**General Information :**

Manufacturer : Hewlett Packard Enterprise

Manufacturer Part Number: 656765-S01

Manufacturer Website Address : WWW.HPE.COM

Product Name: Proliant Dl380 G7 - 2-way 2u Rack Server ( Smart Buy)

**Processor & Chipset :**

Processor Type: Intel Xeon X5660/ 2.80 Ghz

Max Turbo Speed : 3.2 Ghz

Number Of Cores : 6-core

Installed Qty: 2

Max Supported Qty: 2

Upgradability: Upgradable

64-bit Computing: Yes

Chipset Type: Intel 5520

Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology

Cache Memory :

Cache Memory Type: L3 Cache

Installed Size: 24 Mb

Cache Per Processor: 12 Mb

**Memory :**

Installed Size : 24 Gb / 288 Gb (max)

Technology : Ddr3 Sdram

Effective Memory Speed : 1333 Mhz

Rated Memory Speed : 1333 Mhz

Memory Specification Compliance : Pc3-10600

Form Factor : Dimm 240-pin

Slots : 18 (total) / 12 (empty)

Features : Registered

Configuration Features : 6 X 4 Gb

Ram Supported : Pc3-8500 - 384 Gb Registered Pc3-10600 - 288 Gb Registered Pc3-10600 - 48 Gb Unbuffered - Ecc

**Storage & Optical Storage :**

Hard Drive : None

Optical Drive : None

**Storage Controller :**

Type : 1 X Raid - Integrated - Pcie 2.0 X4

Controller Interface Type : Sata 3gb/s / Sas 6gb/s

Storage Controller Name : Smart Array P410i With 1gb Fbwc

Raid Level : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50

Buffer Size : 1 Gb

**Display & Graphics Controller :**

Graphics Processor : Ati Es1000

Video Memory : 64 Mb

Video Interfaces : Vga

**Networking :**

Type : Integrated

Interface (bus) Type : Pci Express X4

Ethernet Ports : 4 X Gigabit Ethernet

Ethernet Controller : 2 X Hp Nc382i

Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management Controller : Integrated Lights-out 3

Features : Wake On Lan (wol), Acpi Support

Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (lacp)

**Expansion / Connectivity :**

Expansion Bays Total (free):

1 (total) / 1 (free) X Front Accessible - 5.25inch Slim Line

8 (total) / 8 (free) X Hot-swap - 2.5inch Sff

Expansion Slots Total (free) :

2 (total) / 0 (free) X Cpu

18 (total) / 12 (free) X Dimm 240-pin

1 (total) / 1 (free) X Pcie 2.0 X16 - Full-length, Full-height (x8 Mode)

2 (total) / 2 (free) X Pcie 2.0 X8 - Half-length, Full-height (x4 Mode)

1 (total) / 1 (free) X Sd Card

Interfaces :

1 X Ps/2 Keyboard

1 X Ps/2 Mouse

1 X Serial

2 X Vga (1 Front, 1 Rear)

4 X Usb (2 Front, 2 Rear)

4 X Lan (gigabit Ethernet)

1 X Hp Ilo

**Miscellaneous :**

Features :

Administrator Password

Power-on Password

Keyboard Password

Serial Port I/o Control

Quicklock

Compliant Standards :

Acpi 2.0, Fcc Class A Certified, En 61000-3-2, En55022, Ices-003, En 61000-3-3, En55024, Cispr 22, Fcc Cfr47 Part 15, Iec 60950-1, En 60950-1, Weee, Bsmi Cns 13438

Manufacturer Selling Program :

Hp Smart Buy

**Power Device :**

Device Type : Power Supply - Hot-plug

Power Redundancy : Yes

Power Redundancy Scheme : 1+1

Installed Qty : 2

Max Supported Qty : 2

Nominal Voltage : Ac 120/230 V (50/60 Hz)

Power Provided : 750 Watt

**Dimension & Weight:**

Height : 3.38 In

Width : 17.54 In

Depth : 27.25 In

Weight : 47.18 Lbs

**Availability : In Stock.**
