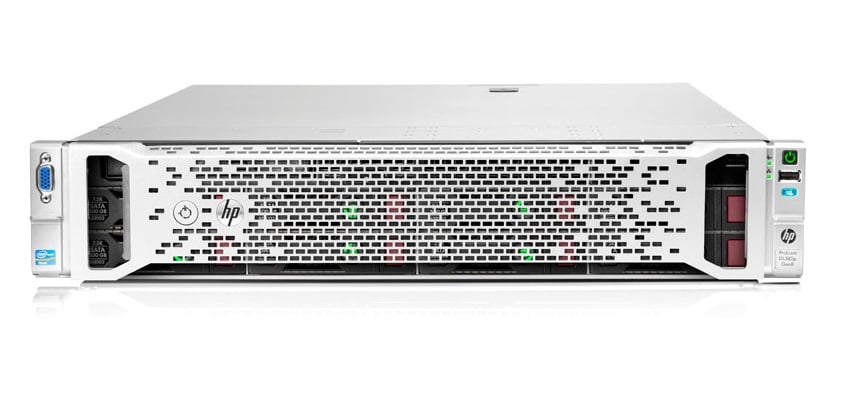

HPE 670856-S01 Proliant DL380P Gen8 E5-2620 1P 16G 8Sff Server/S-Buy | USED

HPE 670856-S01 Proliant DL380P Gen8 E5-2620 1P 16G 8Sff Server/S-Buy | USED

Part Number: 670856-S01

Condition: Used

**General Information :**

Manufacturer : Hewlett Packard Enterprise

Manufacturer Part Number : 670856-S01

Manufacturer Website Address : WWW.HPE.COM

Product Name : Proliant Dl380p Gen8 - 2-way 2u Rack Server ( Smart Buy Model)

**Processor & Chipset :**

Processor Type : Intel Xeon E5-2620 / 2 Ghz

Max Turbo Speed : 2.5 Ghz

Number Of Cores : 6 Core

Installed Qty : 1

Max Supported Qty : 2

64-bit Computing : Yes

Upgradability : Upgradable

Chipset Type : Intel C600

Processor Main Features : Intel Quickpath Interconnect

Cache Memory :

Cache Memory Type : L3 Cache

Installed Size : 15 Mb

Cache Per Processor : 15 Mb

**Ram :**

Installed Size : 16 Gb / 384 Gb (max)

Technology : Ddr3 Sdram

Effective Memory Speed : 1333 Mhz

Rated Memory Speed : 1333 Mhz

Memory Specification Compliance : Pc3-10600

Form Factor : Dimm 240-pin

Slots : 24 (total) / 22 (empty)

Features : Registered, Dual Rank, Quad Channel Memory Architecture, Hp Smartmemory

Configuration Features : 2 X 8 Gb

Ram Supported : Pc3-12800 - 384 Gb Registered Pc3-10600 - 768 Gb Pc3-10600 - 128 Gb Unbuffered - Advanced Ecc

**Storage & Optical Storage:**

Hard Drive : None

Optical Drive Type : None

**Storage Controller :**

Type : 1 X Raid - Integrated - Pcie 3.0 X8

Controller Interface Type : Sata 6gb/s / Sas 6gb/s

Storage Controller Name : Smart Array P420i With 512mb Fbwc

Channel Qty : 8

Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10

Buffer Size : 512 Mb

**Display & Graphics Controllers :**

Type : Integrated

Graphics Processor : Matrox G200

Video Interfaces : Vga

**Network & Communication :**

Type : Plug-in Card

Interface (bus) Type : Pci Express X4

Ethernet Ports : 4 X Gigabit Ethernet

Ethernet Controller : Hp 331flr

Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management Controller : Integrated Lights-out 4

Features : Wake On Lan (wol), Pxe Support

Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab, Ieee 802.3ad (lacp)

**Expansions & Connectivity :**

Expansion Bays Total (free) :

1 (total) / 1 (free) X External 5.25 Slim Line

8 (total) / 8 (free) X Hot-swap 2.5inch Sff

Expansion Slots Total (free) :

24 (total) / 22 (free) X Dimm 240-pin

2 (total) / 1 (free) X Cpu

1 (total) / 1 (free) X Pcie 3.0 X16 - Full-length, Full-height

1 (total) / 1 (free) X Pcie 3.0 X8 - Half-length, Full-height

1 (total) / 1 (free) X Pcie 2.0 X8 - Half-length, Full-height (x4 Mode)

1 (total) / 1 (free) X Sd Card (internal)

Interfaces & Ports :

1 X Serial

2 X Vga ( 1 Front, 1 Rear )

4 X Lan (gigabit Ethernet)

1 X Hp Ilo

7 X Usb 2.0 ( 2 Front, 4 Rear, 1 Internal )

**Miscellaneous :**

Included Accessories :

Hp Ball Bearing Rail Kit

Cable Management Arm

Features :

Administrator Password

Power-on Password

Serial Port I/o Control

Compliant Standards :

Acpi 2.0b, Fcc Class A Certified, En 61000-3-2, En55022, Ices-003, En 61000-3-3, En55024, Cispr 22, Fcc Cfr47 Part 15, Iec 60950-1, En 60950-1, Weee, Bsmi Cns 13438, Gb 9254

Manufacturer Selling Program :

Hp Smart Buy

**Power Device :**

Device Type : Power Supply - Hot-plug

Power Redundancy : Yes

Power Redundancy Scheme : 1+1

Installed Qty : 2

Max Supported Qty : 2

Nominal Voltage : Ac 120/230 V (50/60 Hz)

Power Provided : 460 Watt

80 Plus Certification : 80 Plus Platinum

Efficiency : 94%

**Dimensions & Weight :**

Width : 17.5 In

Depth : 27.5 In

Height : 3.4 In

Weight : 40.98 Lbs

**Availability : In Stock**
