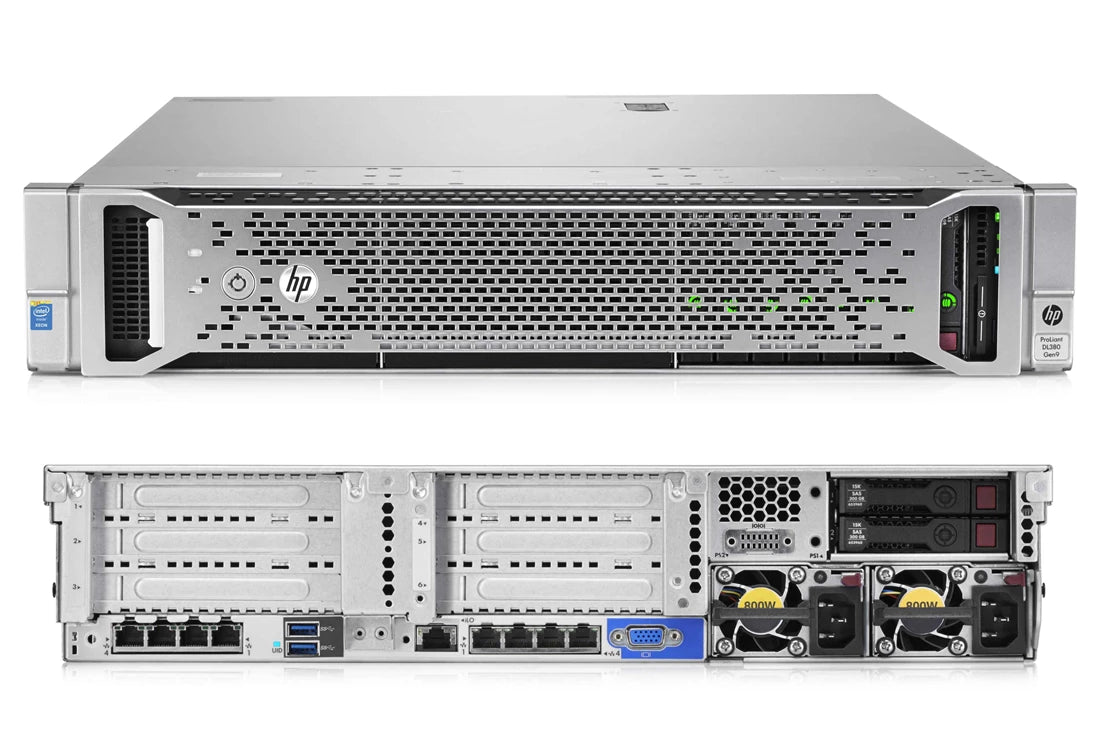

HPE 752689-B21 DL380 Gen9 E5-2650v3 2P 32GB-R P440ar 8SFF 2x10Gb 2x800W Perf Server | USED

HPE 752689-B21 DL380 Gen9 E5-2650v3 2P 32GB-R P440ar 8SFF 2x10Gb 2x800W Perf Server | USED

Part Number: 752689-B21

Condition: Used

**General Information :**

Manufacturer : Hewlett Packard Enterprise

Manufacturer Part Number : 752689-B21

Manufacturer Website Address : WWW.HPE.COM

Product Name : Proliant Dl380 G9 - 2u Rack-mountable Server ( Performance Model)

**Processor & Chipset :**

Processor Type : Intel Xeon E5-2650v3/ 2.3ghz

Max Turbo Speed : 3 Ghz

Quickpath Interconnect : 9.60 Gt/s

Number Of Cores : 10-core

64-bit Computing : Yes

Compatible Processor Socket : Fclga2011-3

Installed Qty : 2

Max Supported Qty : 2

Chipset Type : Intel C610 Series

Cache Memory :

Cache Memory Type : Smart Cache

Installed Size : 50 Mb

Cache Per Processor : 25mb

**Memory :**

Installed Size : 32 Gb / 384 Gb (max)

Technology : Ddr4 Sdram - Advanced Ecc

Effective Memory Speed : 2133 Mhz

Form Factor : Dimm 288-pin

Slots : 24 (total) / 22 (empty)

Features : Registered, Hp Smartmemory

Configuration Features : 2 X 16 Gb

Ram Supported : Pc4-17000 - 384 Gb Registered Pc4-17000 - 1.5 Tb Load-reduced

**Storage & Storage Controller :**

Hard Drive : None.

Optical Drive Type : Dvd-rw Dvd-writer

**Storage Controllers:**

Storage Controller Name : Smart Array P440ar

Buffer Size : 2 Gb

Disk Drive : 12gb/s Sas / 6gb/s Sata

Sas Port Link Rate : 12gb/s Per Physical Link Supported

Pcie Link Rate : Pci Express 3.0 X8 (pcie3 X8)

Physical Drives : Up To 26 Drives

Logical Drives Supported : Up To 64 Logical Drives

Raid Support : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm

**Display & Graphics Controllers :**

Type : Integrated

Graphics Processor : Matrox G200eh2

Video Memory : 16 Mb

Video Interfaces : Vga

**Network & Communication:**

Ethernet Controller : Hp Ethernet 1gb 4-port 331i Adapter

Network Processor : Broadcom Bcm5719 Chipset

Ethernet Ports : 4 X Gigabit Ethernetduplex Theoretical Bandwidth

Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management Protocol : Integrated Lights-out 4

Remote Management Controller : Rj-45 (two)

Features : Wake On Lan (wol), Pxe Support

Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab

**Expansion/ Connectivity :**

Expansion Bays Total (free) :

8 (total) / 8 (free) X Hot-swap 2.5 Sff

Expansion Slots Total (free) :

24 (total) / 22 (free) X Dimm 288-pin

2 (total) / 0 (free) X Cpu

2 (total) / 2 (free) X Pcie 3.0 X16 - Half-length, Full-height ( X8 Mode )

2 (total) / 2 (free) X Pcie 3.0 X8 - Half-length, Full-height

2 (total) / 2 (free) X Pcie 3.0 X16 - Full-length, Full-height

1 (total) / 1 (free) X Microsd Card (internal)

Interfaces & Ports :

4 X Lan (gigabit Ethernet) - Rj-45

1 X Hp Ilo - Rj-45

2 X Vga (1 Front, 1 Rear)

5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)

2 X Lan (10gigabit Ethernet)

2 X Usb 2.0 (2 In Front)

**Miscellaneous :**

Included Accessories :

Cable Management Arm

Hp Easy Install Rails

Features :

Administrator Password

Power-on Password

Serial Port I/o Control

Uefi Bios

Compliant Standards :

Acpi 2.0b, Fcc Class A Certified, En 61000-3-2, En55022, Ices-003, En 61000-3-3, En55024, Cispr 22, Fcc Cfr47 Part 15, Iec 60950-1, En 60950-1, Weee, Gb 9254, Cns 13438

**Power Description :**

Device Type : Power Supply - Hot-plug

Power Redundancy : Yes

Power Redundancy Scheme : 1+1

Installed Qty : 2

Max Supported Qty : 2

Nominal Voltage : Ac 120/230 V

Power Provided : 800 Watt

80 Plus Certification : 80 Plus Platinum

Efficiency : 94%

**Dimensions & Weight :**

Width : 17.5 Inch

Depth : 26.7 Inch

Height : 3.4 Inch

Weight : 32.5 Lbs

**Availability : In Stock**
