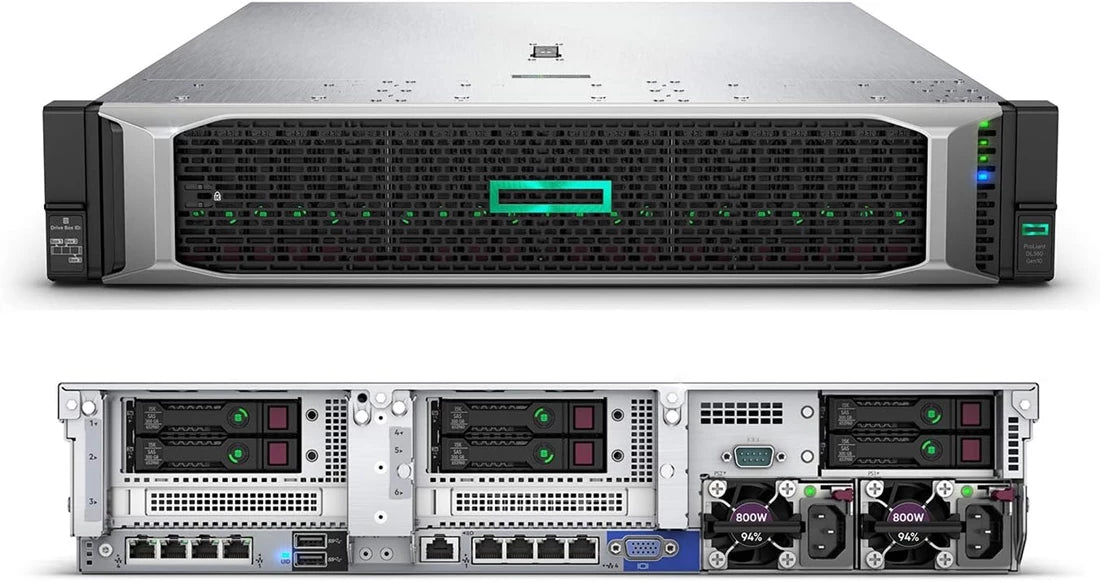

HPE P39380-B21 DL380 Gen10 5220 1P 32GBR P408i-a NC 8SFF 800W PS Server | USED

HPE P39380-B21 DL380 Gen10 5220 1P 32GBR P408i-a NC 8SFF 800W PS Server | USED

Part Number: P39380-B21

Condition: Used

**General Information :**

Manufacturer : Hewlett Packard Enterprise

Manufacturer Part Number : P39380-B21

Manufacturer Website Address : WWW.HPE.COM

Server Scalability : 2-way

Height (rack Units) : 2u

Product Name : Proliant Dl380 Gen10 - Rack Mountable Server ( Smb Networking Choice Model)

**Processor & Chipset :**

Cpu : 2nd Gen Intel Xeon Gold 5220 / 2.2 Ghz

Max Turbo Speed : 3.9 Ghz

Number Of Cores : 18-core

Cpu Qty : 1

Max Cpu Qty : 2

Cpu Upgradability : Upgradable

Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2

Cpu Socket : Fclga3647 Socket

Chipset Type : Intel C621

Cache Memory :

Installed Size : L3 Cache - 24.75 Mb

Cache Per Processor : 24.75 Mb

**Ram :**

Installed Size : 32 Gb / 1.5 Tb (max)

Technology : Ddr4 Sdram - Advanced Ecc

Effective Memory Speed : 2666 Mhz

Rated Memory Speed : 2933 Mhz

Form Factor : Dimm 288-pin

Slots : 24 (total) / 23 (empty)

Features : Registered, Dual Rank, Slots 13 - 24 Are Available In Two-processor Configuration Only, HPE Smartmemory

Configuration Features : 1 X 32 Gb

Ram Supported : 3 Tb Load-reduced - Ecc 1.5 Tb Registered - Ecc 192 Gb Non-volatile - Ecc

**Hard Drive :**

Type : No Hdd

**Storage Controllers :**

Type : 1 X Raid

Controller Interface Type : Sata 6gb/s / Sas 12gb/s

Storage Controller Name : HPE Smart Array P408i-a

Channel Qty : 8

Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm

Buffer Size : 2 Gb

**Optical Storage :**

Type: No Optical Drive

**Card Reader :**

Type : Card Reader

Supported Flash Memory Cards : Microsd

**Graphics Controller :**

Video Memory : 16 Mb

Video Interfaces : Vga

**Network & Communication :**

Ethernet Ports : 2 X 10/25 Gigabit Ethernet Sfp28

Ethernet Controller : Broadcom Bcm57414

Data Link Protocol : 10 Gigabit Ethernet, 25 Gigabit Ethernet

Remote Management Controller : Integrated Lights-out 5

Features : Wake On Lan (wol), Pxe Support

**Expansion / Connectivity :**

Expansion Bays Total (free) :

8 (total) / 8 (free) X Hot-swap 2.5 Sff

Expansion Slots Total (free) :

1 (total) / 1 (free) X Microsd Card (internal)

1 (total) / 1 (free) X Pcie 3.0 X8 - Full-length, Full-height

1 (total) / 1 (free) X Pcie 3.0 X16 - Full-length, Full-height

1 (total) / 1 (free) X Pcie 3.0 X8 - Half-length, Full-height

1 (total) / 0 (free) X Flexiblelom

Interfaces & Ports :

3 X Usb 3.0 (1 Front, 2 Rear)

1 X Vga

2 X Lan (10gigabit Ethernet)

1 X HPE Ilo

1 X HPE Ilo (service Port)

**Miscellaneous :**

Included Accessories : Cable Management Arm, 4 Standard Fans, Sff Easy Install Rails

Compliant Standards : Weee, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.1

**Power Description :**

Device Type : Power Supply - Hot-plug

Power Redundancy : Optional

Power Redundancy Scheme : 1+1 (with Optional Power Supply)

Installed Qty : 1

Max Supported Qty : 2

Voltage Required : Ac 120/230 V (50/60 Hz)

Power Provided : 800 Watt

80 Plus Certification : 80 Plus Platinum

**Operating System / Software :**

Os Provided : No Operating System

**Environmental Standards :**

Energy Star Certified : Yes

Energy Star Version : 3.0

**Environmental Parameters :**

Min Operating Temperature : 50 °f

Max Operating Temperature : 95 °f

Humidity Range Operating : 8 - 90% (non-condensing)

**Dimensions & Weight :**

Width : 17.5 In

Depth : 26.7 In

Heigh : 3.4 In

Weight : 32.54 Lbs
