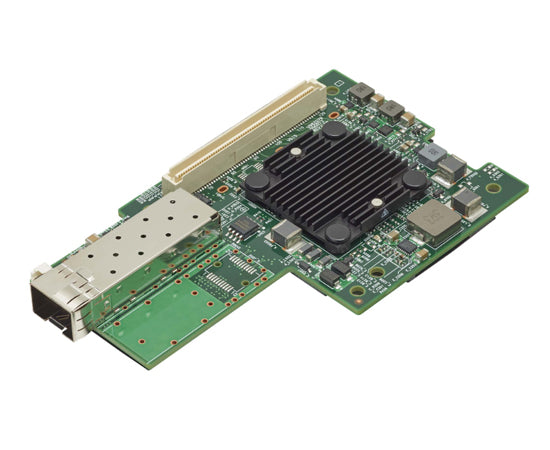

Broadcom BCM957412M4122C Single-Port 25 Gb/s SFP28 Ethernet PCI Express 3.0 x8 OCP 2.0 Mezzanine Card Ref | USED
Couldn't load pickup availability
Broadcom BCM957412M4122C Single-Port 25 Gb/s SFP28 Ethernet PCI Express 3.0 x8 OCP 2.0 Mezzanine Card Ref | USED
HKD 1,073.00
Broadcom BCM957412M4122C Single-Port 25 Gb/s SFP28 Ethernet PCI Express 3.0 x8 OCP 2.0 Mezzanine Card Ref | USED
Part Number: BCM957412M4122C
Condition: Used
**BROADCOM BCM957412M4122C Single-port 25 Gb/s Sfp28 Ethernet Pci Express 3.0 X8 Ocp 2.0 Mezzanine Card.**
**Overview** The BROADCOM BCM957412M4122C Is A Single-port 25 Gb/s Pci Express 3.0 X8 Mezzanine Card Designed To The Open Compute Project (ocp) Mezzanine Card 2.0 Design Specification With An Sfp28 Network Connector As A Type 1 Adapter, With The Board Outline Adhering To A Form Factor Called Out In V0.5 Of The Specification. The Adapter Supports Both Sfp28/sfp+ Optical Modules And Copper Direct-attach Cables. The Card Uses The BROADCOM Bcm57412 25gbe Mac Controller With An Integrated Single-channel 25gbe Sfi Transceiver.
**Features**
Single-port Pluggable Media Interface, Which May Be Equipped With 25g Sfp28 Or 10g Sfp+ Optical Transceiver Or With A Copper Direct-attach Cable.
Fully Compliant With The Sff-8402 Standard.
X8 Pci Express 3.0 Compliant.
Sr-iov With Up To 128 Virtual Functions (vfs).
Function-level Reset (flr) Support.
Truflow™ Flow Processing Engine.
Virtual Network Termination—vxlan, Nvgre, Geneve, Gre Encap/decap.
Vswitch Acceleration.
Tunnel-aware Stateless Offloads.
Dcb Support: Pfc, Ets, Qcn, Dcbx.
Rdma Over Converged Ethernet (roce)
Network Controller Sideband Interface (ncsi).
Smbus 2.0.
Mctp Over Smbus.
Pcie-based Uart And Kcs.
Jumbo Frames Up To 9 Kb.
Advanced Congestion Avoidance.
Multiqueue, Netqueue, And Vmq.
Ipv4 And Ipv6 Offloads.
Tcp, Udp, And Ip Checksum Offloads.
Large Send Offload (lso).
Large Receive Offload (lro).
Tcp Segmentation Offload (tso).
Receive-side Scaling (rss).
Transmit-side Scaling (tss).
Vlan Insertion/removal.
Interrupt Coalescing.
Network Boot—pxe, Uefi.
Iscsi Boot.
Wake-on-lan (wol).
Msi And Msi-x.
Conforms To The Ocp Mezzanine Card 2.0 Design Specification Type 1 Vertical Stack
**Applications** Single-port 25-gigabit Ethernet Adapter For Open Compute
platform Systems.
