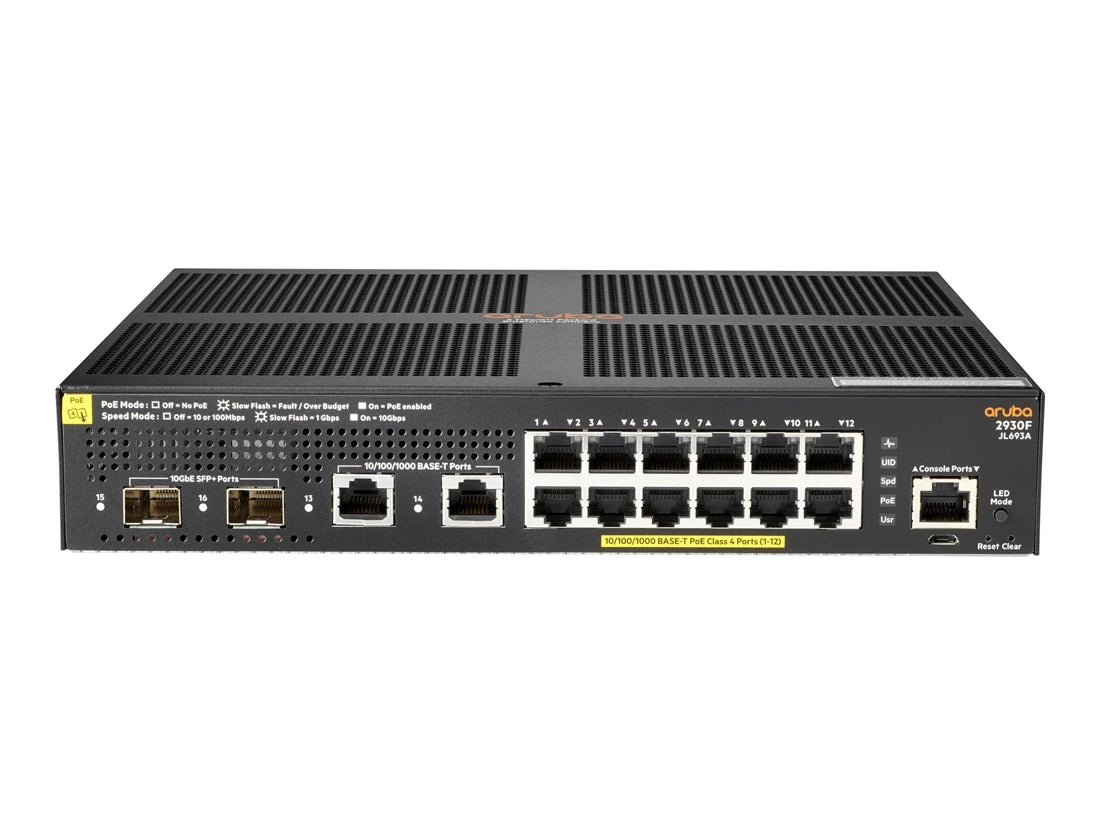

HPE JL693-61001 Aruba 2930F 12G PoE+ 139W Switch | USED

HPE JL693-61001 Aruba 2930F 12G PoE+ 139W Switch | USED

Part Number: JL693-61001

Condition: Used

**HPE JL693-61001 Aruba 2930f 12g Poe+ 139w 2g/2sfp+ - Switch - 12 Ports - Managed - Rack-mountable :**

**Key Features :**

Device Type : Switch - 12 Ports - L3 - Managed - Stackable

Enclosure Type : Rack-mountable 1u

Subtype : Gigabit Ethernet

Ports : 12 X 10/100/1000 (poe+) + 2 X 1 Gigabit / 10 Gigabit Sfp+ (uplink) + 2 X 10/100/1000

Power Over Ethernet (poe) : Poe+

Poe Budget : 139 W

Performance : Throughput: 41.7 Mpps ¦ Switching Capacity: 68 Gbps ¦ Latency (1 Gbps): 3.8 Μs ¦ Latency (10 Gbps): 1.6 Μs

Capacity : Jumbo Frame Size: 9220 ¦ Ipv4 Routing Table Entries: 2000 ¦ Ipv6 Routing Table Entries: 1000

Mac Address Table Size : 32k Entries

Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Igmpv2, Igmp, Ospfv2, Static Ip Routing, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ripng, Mld, Cidr

Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Snmp, Telnet, Snmp 3, Ssh, Ssh-2, Cli, Xrmon

Encryption Algorithm : Md5, Ssl

Authentication Method : Radius, Pap, Chap, Tacacs, Tacacs+

Features : Flow Control, Full Duplex Capability, Dhcp Support, Bootp Support, Arp Support, Vlan Support, Igmp Snooping, Syslog Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Spanning Tree Protocol (stp) Support, Multiple Spanning Tree Protocol (mstp) Support, Trivial File Transfer Protocol (tftp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Dhcp Server, Mld Snooping, Stp Root Guard, Uni-directional Link Detection (udld), Lldp Support, Dhcp Relay, Link Aggregation Control Protocol (lacp), Management Information Base (mib), Mac Address Lockout, Dynamic Arp Protection, Dhcp Protection, Dynamic Vlan Support (gvrp), Multiple Vlan Registration Protocol (mvrp), Neighbor Discovery Protocol (ndp), Class Of Service (cos), Snmp Support, Type Of Service (tos), Openflow Support, Cpu Protection, Internet Control Message Protocol (icmp), Icmp Router Discovery Protocol (irdp), Virtual Extensible Lan (vxlan), Management Information Base (mib) Ii

Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.1ax

Processor : 1 X Arm Cortex-a9: 1.016 Ghz

Ram : 1 Gb Ddr3 Sdram

Flash Memory : 4 Gb

**Expansion / Connectivity :**

Interfaces :

12 X 1000base-t Rj-45 Poe+

2 X Gigabit / 10gbit Lan Sfp+

1 X Serial (console)

2 X 1000base-t Rj-45

Expansion Slots :

1 (total) / 1 (free) X Expansion Slot

Installed Modules Qty (max) : 0 (installed) / 2 (max)

**Power :**

Power Device : Internal Power Supply

Installed Qty : 1

Voltage Required : Ac 120/230 V (50/60 Hz)
