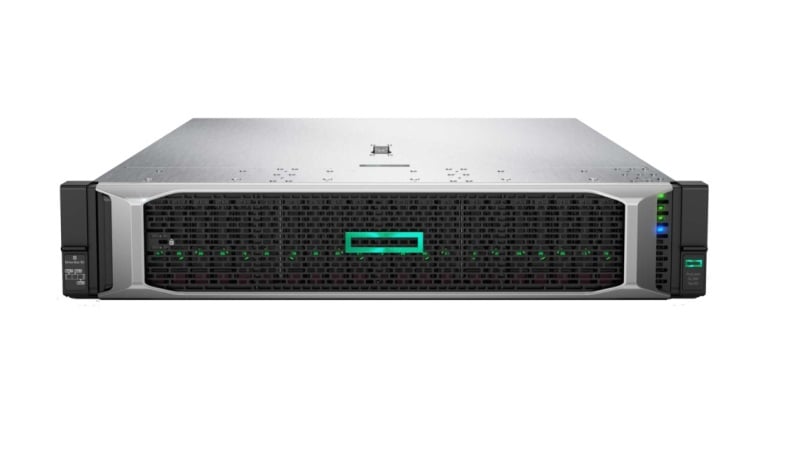

HPE P21271-B21 DL560 Gen10 5220 2P 64GB-R P408i-a 8SFF 1600W RPS Server | USED

HPE P21271-B21 DL560 Gen10 5220 2P 64GB-R P408i-a 8SFF 1600W RPS Server | USED

Part Number: P21271-B21

Condition: Used

#### HPE P21271-B21 Proliant Dl560 Gen10 Entry Model 2x Intel Xeon 18-core Gold 5220/2.20ghz, 64(2x32)gb Ddr4 Sdram, HPE Smart Array P408i-a, HPE Ethernet 1gb 4-port Flr-t I350-t4v2 Adapter, 8sff, 2x 1600w Rps 2u Rack Server

**General Information :**

Manufacturer : Hewlett Packard Enterprise

Manufacturer Part Number : P21271-B21

Manufacturer Website Address : WWW.HPE.COM

Product Name : Proliant Dl560 Gen10 2u Rack Server (entry Model)

**Processor & Chipset :**

Cpu : Intel Xeon Gold 5220 / 2.2 Ghz

Max Turbo Speed : 3.9 Ghz

Number Of Cores : 18-core

Cpu Qty : 2

Max Cpu Qty : 4

Cpu Upgradability : Upgradable

Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2

Cpu Socket : Fclga3647 Socket

Chipset Type : Intel C621

**Cache Memory :**

Installed Size : L3 Cache - 49.5 Mb

Cache Per Processor : 24.75 Mb

**Memory :**

Installed Size : 64 Gb / 768 Gb (max)

Technology : Ddr4 Sdram

Form Factor : Dimm 288-pin

Slots : 48 (total) / 46 (empty)

Features : Registered, Dual Rank, 6-channel Memory Architecture, Slots 25 - 48 Are Available In Four-processor Configuration Only

Configuration Features : 2 X 32 Gb

Ram Supported : Pc4-20800 - 768 Gb Registered ¶ Pc4-20800 - 1.5 Tb Load-reduced

**Storage Controllers :**

Type : 1 X Raid

Controller Interface Type : Sata 6gb/s / Sas 12gb/s

Storage Controller Name : HPE Smart Array P408i-a

Channel Qty : 8

Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm

Buffer Size : 2 Gb

**Graphics Controller :**

Video Memory : 16 Mb

Video Interfaces : Vga

**Network & Communication :**

Ethernet Ports : 4 X Gigabit Ethernet

Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management Controller : Integrated Lights-out 5

Features : Wake On Lan (wol), Pxe Support

**Expansion / Connectivity :**

Expansion Bays Total (free) :

1 (total) / 1 (free) X External

8 (total) / 8 (free) X Hot-swap 2.5 Sff

Expansion Slots Total (free) :

1 (total) / 0 (free) X Flexiblelom

2 (total) / 2 (free) X Pcie 3.0 X16 - Three-quarter-length, Full-height

4 (total) / 4 (free) X Pcie 3.0 X8 - Three-quarter-length, Full-height

1 (total) / 1 (free) X Microsd Card (internal)

Interfaces & Ports :

1 X HPE Ilo - Type A (1 In Front)

5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)

1 X HPE Ilo - Rj-45

4 X Lan (gigabit Ethernet)

1 X Vga (1 Rear)

1 X Serial (1 Rear)

2 X Usb 2.0 (2 Rear)

**Miscellaneous :**

Compliant Standards : Aes, Fips 140-2, Ipv6 Ready, Acpi 6.1

**Power Description :**

Device Type : Power Supply - Hot-plug

Power Redundancy : Optional

Power Redundancy Scheme : 1+1 (with Optional Power Supply)

Installed Qty : 2

Max Supported Qty : 2

Nominal Voltage : Ac 120/230 V (50/60 Hz)

Power Provided : 1600 Watt

80 Plus Certification : 80 Plus Platinum

Efficiency : 94%

**Dimensions & Weight :**

Width : 17.5 In

Depth : 29.7 In

Height : 3.4 In

Weight : 40.67 Lbs
