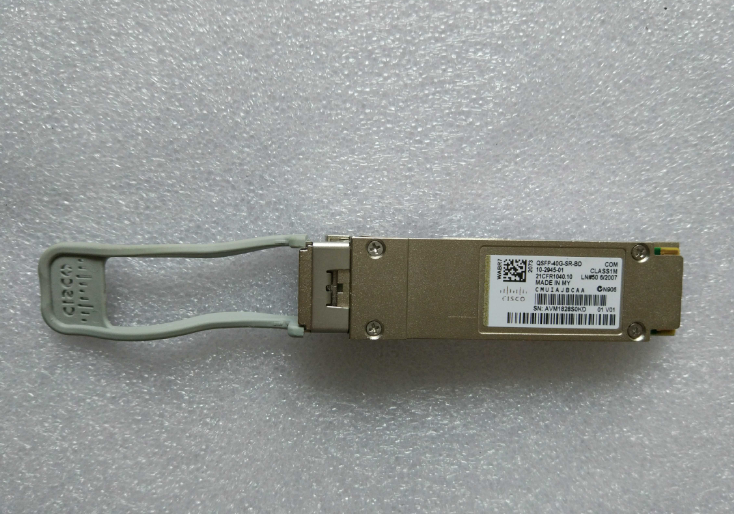

(NEW VENDOR) Cisco 40GBASE-SR Bi-Directional QSFP Module for Duplex MMF (QSFP-40G-SR-BD)
HKD 1,172.00
Couldn't load pickup availability
(NEW VENDOR) Cisco 40GBASE-SR Bi-Directional QSFP Module for Duplex MMF (QSFP-40G-SR-BD)
HKD 1,172.00
QSFP-40G-SR-BD= Specifications |
|
|
Dimensions |
13.5 x 18.4 x 72.4 mm |
|
QSFP Port cabling specifications |
|
|
Wavelength (nm) |
832 - 918 |
|
Cable Type |
MMF |
|
Core Size (microns) |
50.0 50.0 50.0 |
|
Modal Bandwidth (MHz-km) |
500 (OM2) 2000 (OM3) 4700 (OM4) |
|
Cable Distance |
30m 100m 150m |
|
Power Consumption (W) |
3.5 |
|
Pull Tab Color |
Gray |
|
Optical characteristics |
|
|
Type |
40GBASE-SR-BiDi, Duplex MMF |
|
Transmit Power (dBm) |
Max:+5 per lane Min:-4 per lane |
|
Receive Power (dBm) |
Max:+5.0 per lane Min:-6.0 per lane |
|
Transmit and Receive Wavelength (nm) |
832 to 918 |
|
Environmental conditions |
|
|
Commercial temperature |
+10 to 70°C (50 to 158°F) |
|
Storage temperature |
-40 to 85°C (-40 to 185°F) |
|
Regulatory and standards compliance |
|
|
Standards |
•GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable •GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies •GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors •IEEE 802.3ba (-SR4, -LR4) •IEEE 802.3ae (-CSR4) •QSFP+ MSA SFF-8436 •SFP+ MSA SFF-8431 and -8461 •RoHS 6 |
|
Safety
|
•Cable jacket of QSFP copper modules is UL E116441 Compliant •QSFP copper cables are ELV Compliant |
