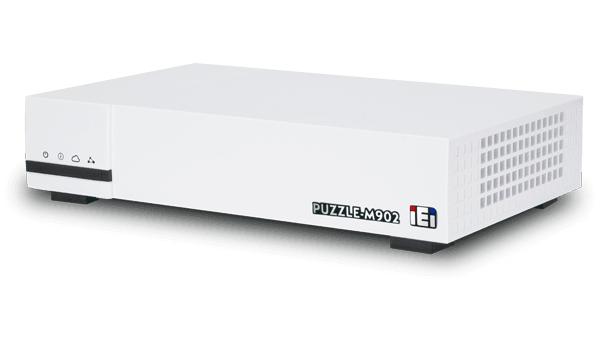

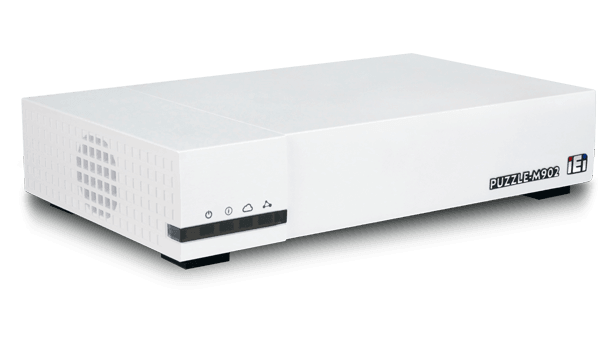

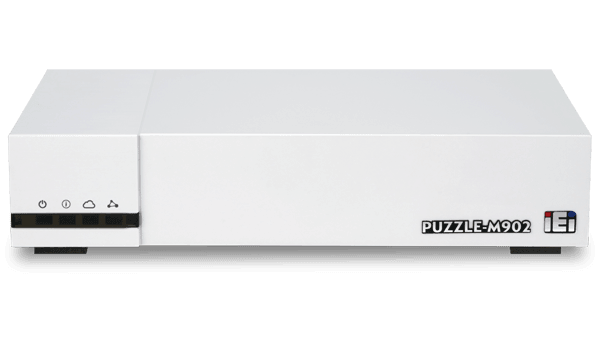

x(NEW VENDOR) IEI PUZZLE-M902-CN1-R10 IEI PUZZLE-M902 10GbE + 2.5GbE Software Defined Router
Key Features
• Marvell® CN9130 quad-core Armv8 Cortex-A72 @ up to 2200 MHz
• Six 2.5GbE RJ-45 ports (two via Marvell CN9130; four via Marvell 88F8215)
• Three 10GbE RJ-45 ports (one via Marvell CN9130; two via Marvell 88F8215)
• 4 GB eMMC; one console port (pin-header); one reset button
• LED indicators: status/power & WAN/LAN interface indicator
Overview
Why You Need Software Defined Router?
High Reliability, Performance and Availability
- HIGH SCALABILITY
Rich open resource services to achieve any requirement
- SUPER SPEED
Design with 2.5GbE and 10GbE ports for faster package transfer
- FASTER TIME TO MARKET
Deploy network applications and services faster by leveraging open software packages
Get Your Office Ready for New Gen. Software Defined Router
The growing number of connected personal and IoT devices has led to an overall increase in network density. The PUZZLE-M902 is IEI‘s latest product series – Software Defined Router, which is pre-installed with OpenWrt and features high speed and high flexibility to optimize your network performance.
This series is integrated with 2.5GbE and 10GbE ports and the interfaces can be defined with various combination to meet your demands. Moreover, its function can also be expanded by open source applications supported in the OpenWrt community. It is ideally suited for a wide range of applications, such as SOHO a nd SMB networking infrastructure.
High-end Arm-based Platform with Marvell Quad-core SoC
Accelerate Your Networking and Security Applications
The Marvell CN9130 is a quad-core Armv8 Cortex-A72 system-on-ch ip (SoC). The high-performance processor offers a complete function and acceleration for networking and security applications. It can accelerate the packet processing for NAT, QoS and packet filtering, and offload the processor on multiple IPSec/SSL VPN tunneling.
Flexible High-speed Network Deployment
Stability and Low Latency for Data Transmission

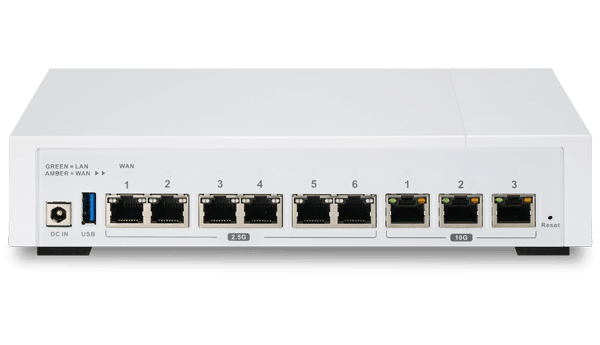

The PUZZLE-M902 can offer you incredible speed for data transmission with six 2.5 GbE ports and three 10 GbE ports. Its interfaces can be defined to link with multiple devices for different tasks and purposes.
Customize Your Network with OpenWrt
One Device, Diversified Results
The hottest open source project, OpenWrt, which is based on Linux-based embedded operating system and used on embedded devices to route network traffic. It uses the command line interface (ash shell) or the web interface (LuCI) to configure OpenWrt. Approximately 3,500 optional software packages can be installed through the opkg package management system. It provides detailed possibilities to configure common network-related functions, such as IPv4, IPv6, DNS, DHCP, VPN, shadowsocks, DLNA, routing, Dynamic DNS, firewall, NAT, port forwarding, file sharing via SAMBA, NFS, FTP, SFTP and MQ Telemetry Transport through Mosquitto.
Simple and Visible Network Operation
Faster and Easier than Before
Powered by OpenWrt, the PUZZLE-M902 provides a user-friendly web interface, a clear dashboard and port indicators to help you handle daily network management tasks. Users can not only efficiently manage all connected wires through OpenWrt OS in real time, but also configure firewall, VPN, security and advanced network functions.
Make Security Configuration Easier than Ever
Select, Configure, Run. Only Three Steps
There are multiple packages available in the OpenWrt package repository and designed with clear user interface to support IT developer for installing and deploying the security function of network. OpenVPN, a virtual private network (VPN), and Firewall3 (fw3) which uses netfilter/iptable rule builder for firewall applications, are two of the most popular packages for creating high reliable network security.
Specifications
| IEI PUZZLE-M902 10GbE + 2.5GbE Software Defined Router CPU: Marvell® CN9130 quad-core Armv8 Cortex-A72 @ up to 2200 MHz Memory: 4GB RAM Interface (RJ45): 3 x 10GbE, 6 x 2.5GbE (WAN/LAN) Operating System: OpenWRT 2 Years carry-in Warranty |
