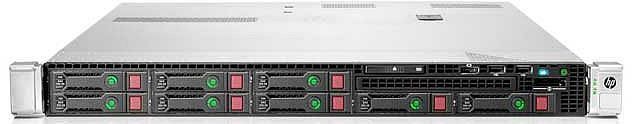

HPE 668815-001 ProLiant DL360E G8 E5-2430/2.20GHz 24GBR 1U Rack Server | USED

HPE 668815-001 ProLiant DL360E G8 E5-2430/2.20GHz 24GBR 1U Rack Server | USED

Part Number: 668815-001

Condition: Used

#### HPE 668815-001 Proliant Dl360e G8- 2x Intel Xeon 6-core E5-2430/2.20ghz 30mb L3 Cache, 24gb Ddr3 Sdram, 8sff Hdd Bays, 4x Gigabit Ethernet, 2x 460w Ps, 1u Rack Server

**General Information :**

Manufacturer : HPE

Manufacturer Part Number : 668815-001

Manufacturer Website Address : Www.hp.com

Product Name : Proliant Dl360e G8 1u Rack Server

**Processor & Chipset :**

Cpu : Intel Xeon E5-2430 / 2.2 Ghz

Number Of Cores : Hexa-core (6-core)

Sockets Supported : Lga1356

64-bit Computing : Yes

Cpu Qty : 2

Max Cpu Qty : 2

Cpu Upgradability : Upgradable

Processor Main Features :

Hyper-threading Technology,

Intel Quickpath Interconnect,

Intel Turbo Boost Technol400ogy 2

Chipset Type : Intel C600

**Cache Memory :**

Installed Size : L3 Cache - 30 Mb

Cache Per Processor : 15 Mb

**Memory :**

Installed Size : 24 Gb

Maximum Size : 192 Gb

Technology : Ddr3 Sdram

Memory Speed : 1333 Mhz

Memory Specification Compliance : Pc3-10600

Form Factor : Lrdimm 240-pin

Configuration Features : 6 X 4 Gb

Features : Low-voltage

Total Memory Slots : 12

**Storage & Storage Controller :**

Storage Hard Drive : None Ship Standard, Includes 7 Sff Hard Drive Blanks

Internal Storage : 8 Sff Hdd Bays

Storage Controller Type : 1 X Raid - Integrated - Pci Express 2.0 X4

Controller Interface Type : Sata-300 / Sas 2.0

Storage Controller Name : Hp Smart Array P420/1gb Fbwc Controller

Channel Qty : 8

Raid Level : Raid 0, Raid 1, Raid 10, Raid 50

**Display & Graphics Controllers :**

Graphics Controller Type : Integrated

Graphics Processor : Matrox G200

**Network & Communication :**

Networking Type : Integrated

Interface (bus) Type : Pci Express 2.0 X4

Ethernet Ports : 4 X Gigabit Ethernet

Ethernet Controller : Hp Ethernet 1gb 4-port 366i Adapter

Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management Protocol : Snmp, Ipmi 2.0, Smash Clp

Remote Management Controller : Integrated Lights-out 4

Features : Wake On Lan (wol), Pxe Support

Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab, Ieee 802.1as, Ieee 802.3az

**Expansions & Connectivity :**

Expansion Bays Total (free) :

1 (total) / 1 (free) X External

8 (total) / 8 (free) X Hot-swap - 2.5in Sff

Expansion Slots Total (free) :

12 (total) / 6 (free) X Memory - Lrdimm 240-pin

2 (total) / 0 (free) X Cpu

1 (total) / 1 (free) X Pcie 3.0 X16 - Half-length, Full-height

1 (total) / 1 (free) X Pcie 2.0 X8 - Low-profile ( X4 Mode )

1 (total) / 1 (free) X Sd Card

Interfaces & Ports :

2 X Display / Video ( 1 Front, 1 Rear )

4 X Lan (gigabit Ethernet)

6 X Usb 2.0 ( 2 Front, 4 Rear )

1 X Hp Ilo

1 X Serial

**Power Device :**

Device Type : Power Supply - Hot-plug

Power Redundancy : Yes

Power Redundancy Scheme : 1+1

Installed Qty : 2

Max Supported Qty : 2

Voltage Required : Ac 120/230 V ( 50/60 Hz )

Power Provided : 460 Watt

80 Plus Certification : 80 Plus Gold

**Dimensions & Weight :**

Width : 17.1 In

Depth : 27.5 In

Height : 1.7 In

Weight : 29.1 Lbs
