HPE P06421-B21 Dl380 Gen10 4114 1P 32G 8Sff Perf Server | USED

HPE P06421-B21 Dl380 Gen10 4114 1P 32G 8Sff Perf Server | USED

Part Number: P06421-B21

Condition: Used

**General Information :**

Manufacturer : Hewlett Packard Enterprise

Manufacturer Part Number : P06421-B21

Manufacturer Website Address : WWW.HPE.COM

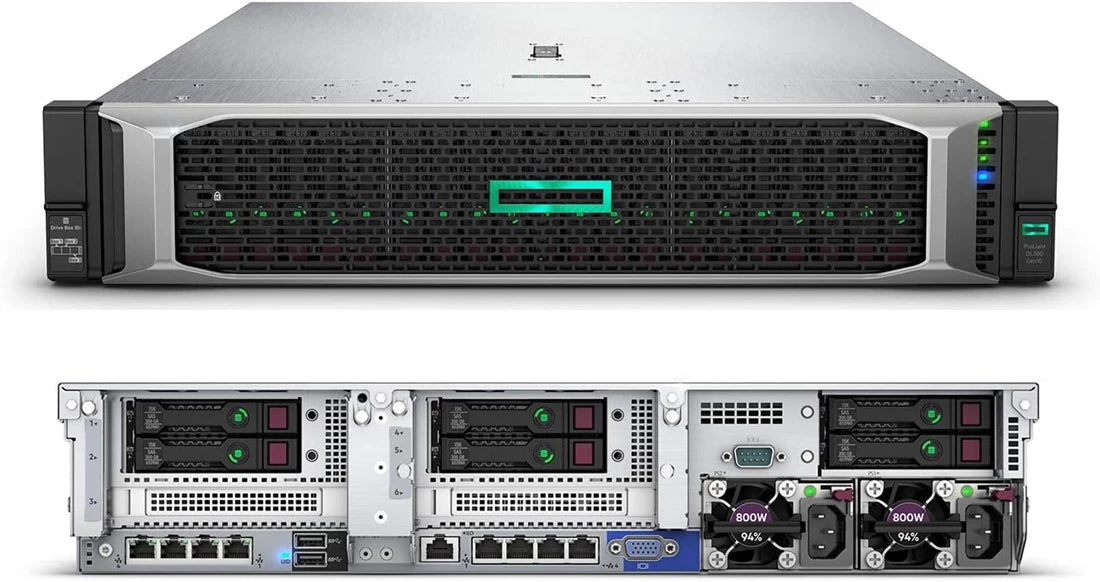

Product Name : Proliant Dl380 Gen10 - 2u Rack Mountable Server ( Performance Model)

**Processor & Chipset :**

Cpu : Intel Xeon Silver 4114 / 2.2 Ghz

Max Turbo Speed : 3 Ghz

Number Of Cores : 10-core

Cpu Qty : 1

Max Cpu Qty : 2

Cpu Upgradability : Upgradable

Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2

Chipset Type : Intel C621

Cache Memory :

Installed Size : L3 Cache - 13.75 Mb

Cache Per Processor : 13.75 Mb

**Memory :**

Installed Size : 32 Gb / 3 Tb (max)

Technology : Ddr4 Sdram

Effective Memory Speed : 2400 Mhz

Rated Memory Speed : 2666 Mhz

Memory Specification Compliance : Pc4-20800

Form Factor : Dimm 288-pin

Slots : 12 (total) / 11 (empty)

Features : Registered, Dual Rank, Slots 13 - 24 Are Available In Two-processor Configuration Only, HPE Smartmemory

Configuration Features : 1 X 32 Gb

Ram Supported : Pc4-20800 - 3.072 Tb Load-reduced Pc4-20800 - 768 Gb Registered

**Storage Controllers:**

Type : 1 X Raid - Pcie 3.0 X8

Controller Interface Type : Sata 6gb/s / Sas 12gb/s

Storage Controller Name : HPE Smart Array P408i-a

Channel Qty : 8

Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm

Buffer Size : 2 Gb

**Storage Controller (2nd) :**

Type : 1 X Sata

Controller Interface Type : Sata 6gb/s

Storage Controller Name : HPE Smart Array S100i Sr Software

Channel Qty : 14

**Graphics Controller :**

Video Memory : 16 Mb

Video Interfaces : Vga

**Network & Communication:**

Ethernet Ports : 4 X Gigabit Ethernet

Ethernet Controller : Hp 331i

Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp

Remote Management Controller : Integrated Lights-out 5

Features : Wake On Lan (wol), Pxe Support

**Expansion / Connectivity :**

Bays :

1 External 8 (total) / 8 (free) X Hot-swap 2.5 Sff

Slots :

1 (total) / 1 (free) X Flexiblelom

1 (total) / 1 (free) X Pcie 3.0 X16 - Half-length, Full-height

2 (total) / 2 (free) X Pcie 3.0 X8 - Half-length, Full-height

1 (total) / 1 (free) X Microsd Card (internal)

Interfaces :

1 X Hp Ilo - Type A (1 In Front)

5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)

4 X Lan (gigabit Ethernet) - Rj-45 (4 Rear)

1 X Hp Ilo - Rj-45 (1 Rear)

1 X Vga (1 Rear)

**Miscellaneous :**

Included Accessories :

Raid Battery Backup Unit

Hp Easy Install Rail Kit

4 Standard Fans

Cpu Standard Heatsink

Compliant Standards :

Aes, Fips 140-2, Ipv6 Ready, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.1

Manufacturer Selling Program :

HPE Smart Buy

**Power Description :**

Device Type : Power Supply - Hot-plug

Power Redundancy : Optional

Power Redundancy Scheme : 1+1 (with Optional Power Supply)

Installed Qty : 1

Max Supported Qty : 2

Nominal Voltage : Ac 120/230 V (50/60 Hz)

Power Provided : 800 Watt

80 Plus Certification : 80 Plus Platinum

**Dimensions & Weight :**

Width : 17.5 In

Depth : 28.8 In

Height : 3.4 In

Weight : 32.54 Lbs
