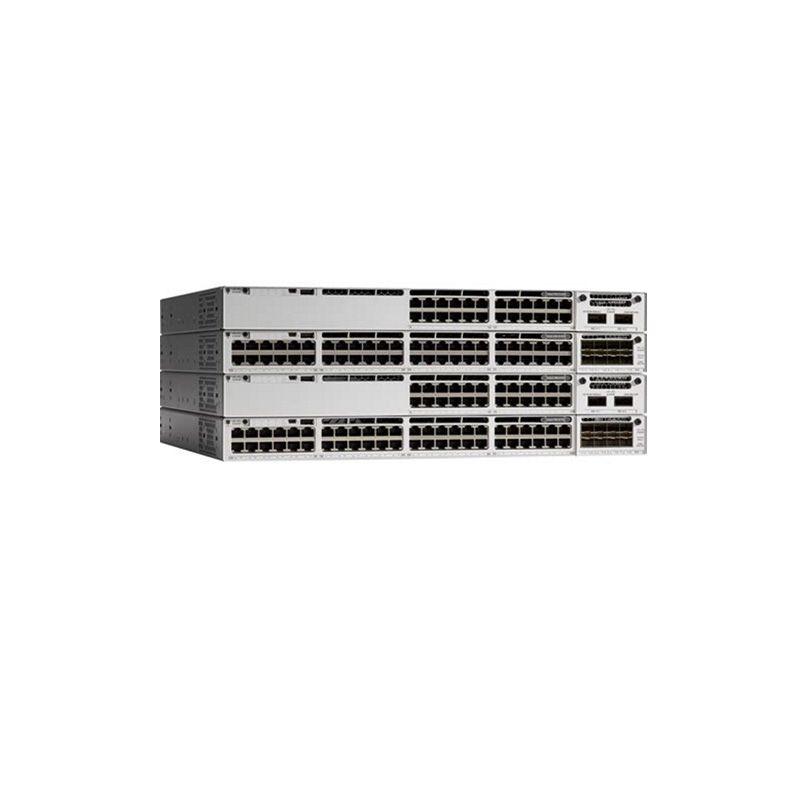

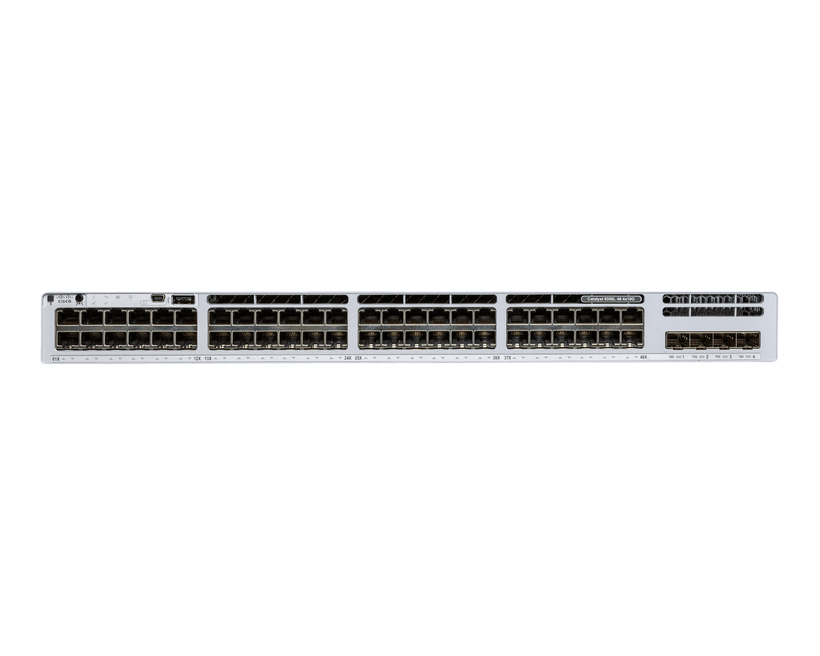

(新しい ) CISCO C9300L-48T-4X-E Catalyst 9300L 48p データ、ネットワークエッセンシャル、4x10G アップリンク
受け取り可能状況を読み込めませんでした

(新しい ) CISCO C9300L-48T-4X-E Catalyst 9300L 48p データ、ネットワークエッセンシャル、4x10G アップリンク
C9300L-48T-4X-Eの概要
Cisco Catalyst 9300シリーズは、業界で最も広く導入されているスタッカブルスイッチの次世代です。
C9300L-48T-4X-E 仕様
シスコ Catalyst 9300L | |
| 交換用に設計 | 触媒3850 |
| サポートされているiOS | ネットワークアドバンテージ、ネットワークエッセンシャル |
| ネットワークモジュールのオプション | 固定モジュール |
| スタックテクノロジー | スタックワイズ-320 |
| スタッキング帯域幅 | 320Gbps |
| MACアドレスの総数 | 3万2000 |
| IPv4ルートの合計数(ARPと学習ルートの合計) | 32,000(直通24,000、迂回8,000) |
| IPv4ルーティングエントリ | - |
| IPv6ルーティングエントリ | 16,000 |
| マルチキャストルーティングスケール | 8,000 |
| QoSスケールエントリ | 5,120 |
| ACLスケールエントリ | 5,120 |
| SKUあたりのパケットバッファ | 24および48ポートギガビットイーサネットモデルの場合、16 MBバッファ |
| Flexible NetFlow (FNF) エントリ | 24 ポートおよび 48 ポート ギガビット イーサネット モデルで 64,000 フロー |
| メモリ | 8GB |
| フラッシュ | 16ギガバイト |
| VLAN ID | 4094 |
| 合計 | 1000 |
| ジャンボフレーム | 9198バイト |
| | 56Gbps~176Gbps |
| 転送速度 | 41.66 Mpps - 130.95 Mpps |
