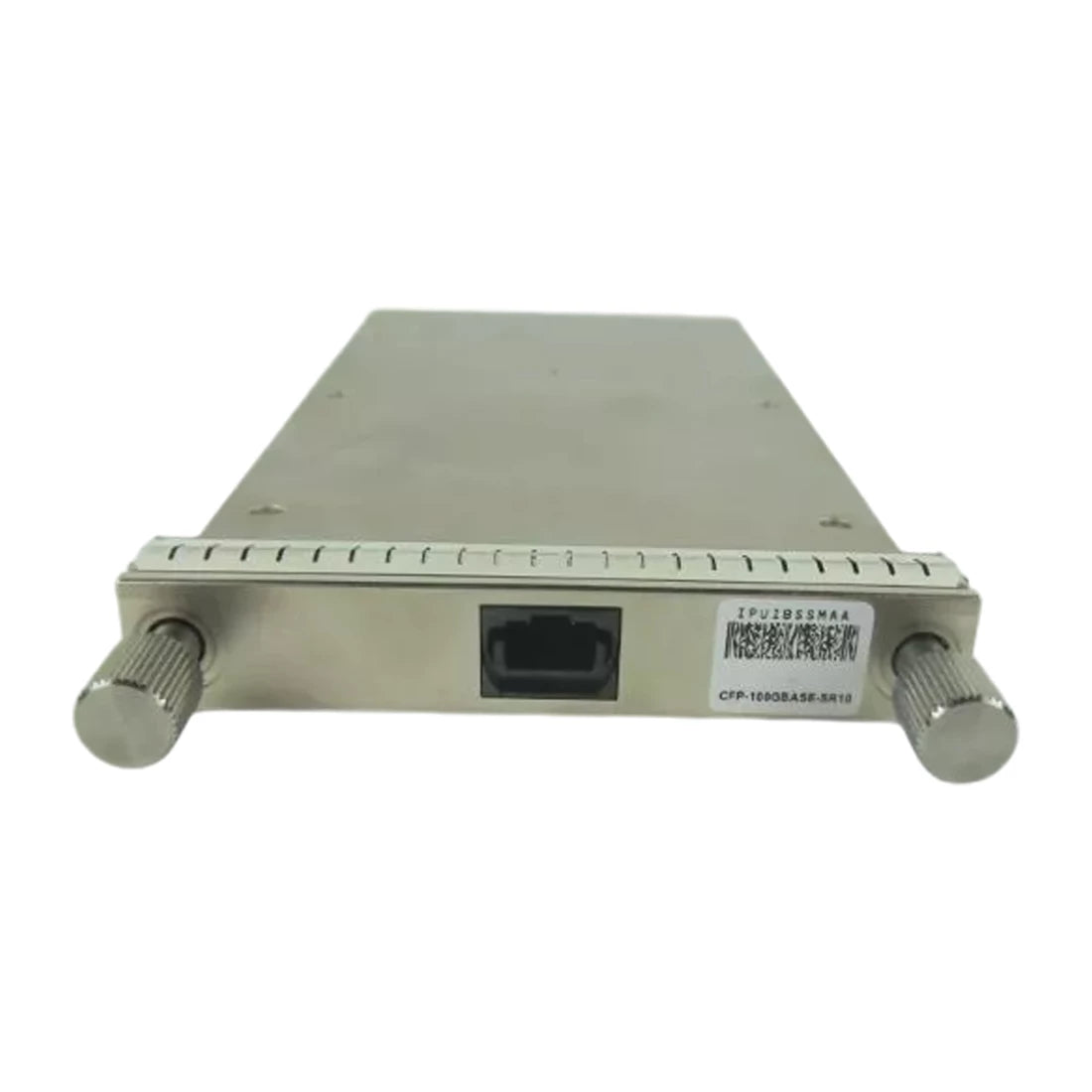

Juniper Networks 740-035329 CFP 100G Pluggable Transceiver,100m with OM3 fiber and 150m with OM4 fiber

|
Product Overview
Juniper Networks Cfp-100gbase-sr10 Cfp 100g Pluggable Transceiver,100m With Om3 Fiber And 150m With Om4 Fiber.
Overview
Widely Deployed In Wan, Data Center, And Enterprise Networks, Junipers Portfolio Of Direct-detect And Coherent 100g Optical Transceivers Are Critical In Meeting The Ever-growing Bandwidth Needs Of Network Operators. All Juniper 100g Optics Are Compliant With Key Industry Standards And Specifications For Seamless Interoperability In Multivendor Environments And Qualified For Use Across Acx, Ex, Mx, Ptx, And Qfx Product Families
Specifications
Speed
100 Gigabit Ethernet
Breakout Capable
No
Transceiver Type
Cfp
Product Type
Optical Transceiver
Connector
Mpo-24
Standards Compliance (ethernet/otn Standard, For E.g. 100gbase-lr4)
Ieee 802.3ba—2010
Signaling Rate, Each Lane
100 Gbps
Transmitter Wavelengths (range)
840 Through 860 Nm
Transmitter Output Power, Each Lane (minimum)
–7.6 Dbm
Transmitter Output Power, Each Lane (maximum)
2.4 Dbm
Receiver Input Power, Each Lane (minimum)
–9.5 Dbm(om3) , –9.1 Dbm(om4).
Receiver Input Power, Each Lane (maximum)
2.4 Dbm(om3) , 2.4 Dbm(om4).
Cable Type
Mmf
Fiber Grade
Om3 , Om4
Distance(w)
100 M
Maximum Power Consumption (w)
16 W
Operating Temperature (range)
–40° C To 85° C
Storage Temperature
–40° C To 85° C
Condition:
Used Clean Tested.
Availability:
In Stock.
Our Warranty:
90 Days.
