Product Overview

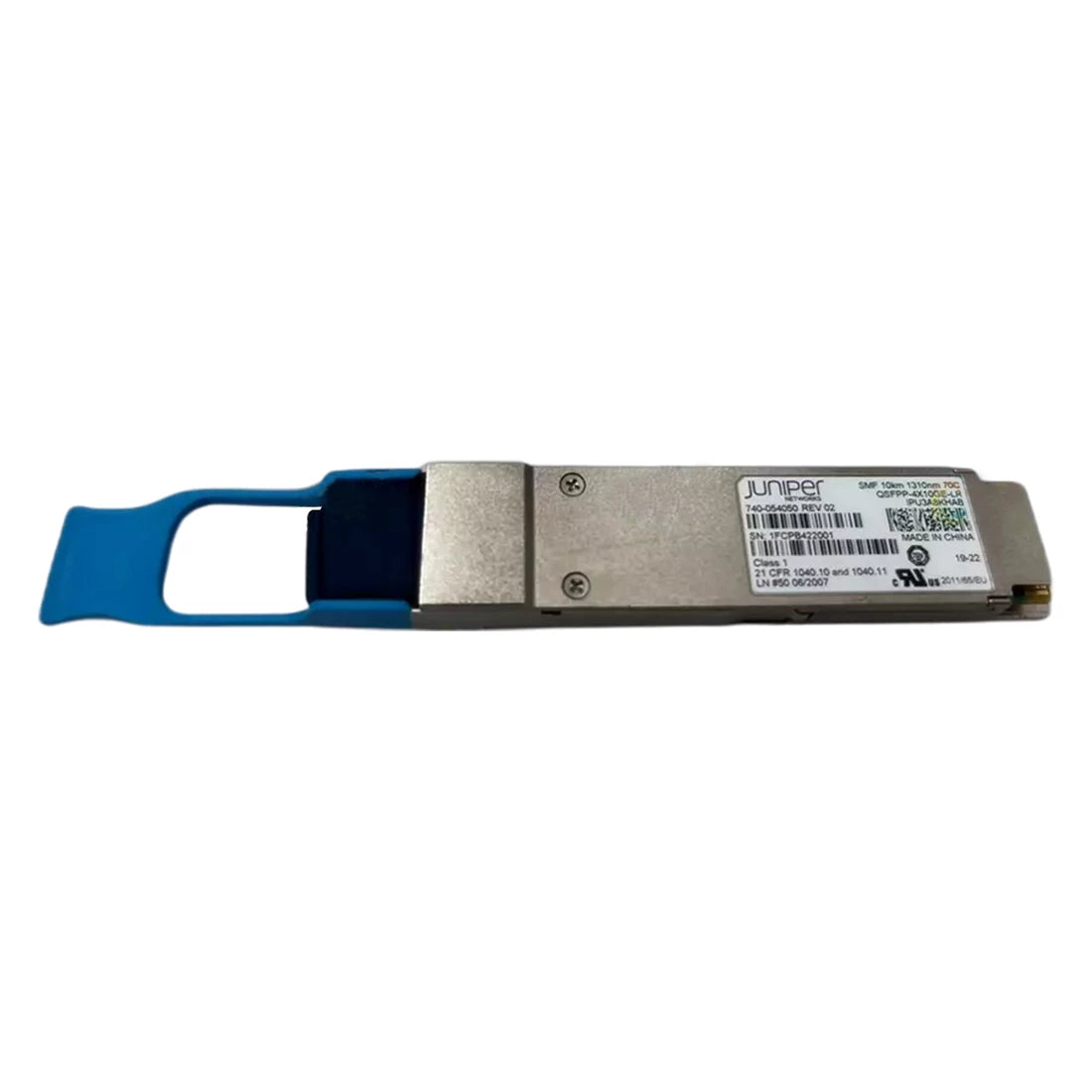

Juniper Networks 740-057315 Qsfp+ 40g Breakout Into 4x10gbase Lr Up To 10km Smf Mpo-12 Apc Receptacle Transceiver
Specifications
Speed
4 X 10 Gigabit Ethernet
Breakout Capable
Yes
Transceiver Type
Qsfp+
Product Type
Optical Transceiver
Connector
Mpo-12 Apc
Monitoring Available
Yes
Digital Optical Monitoring
Yes
Standards Compliance (ethernet/otn Standard, For E.g. 100gbase-lr4)
Ieee 802.3 Clause 52
Digital Diagnostic Monitoring
Transceiver Temperature
Transceiver Supply Voltage
Tx Bias Current
Tx Output Power
Rx Received Optical Power
Signaling Rate, Each Lane
Signaling Rate, Each Lane
10gbase-lr: 10.3125 Gbps
10gbase-lw: 9.95428 Gbps
Transmitter Wavelengths (range)
1260 Nm Through 1355 Nm
Transmitter Output Power, Each Lane (minimum)
–6.5 Dbm
Transmitter Output Power, Each Lane (maximum)
0.5 Dbm
Receiver Input Power, Each Lane (minimum)
–14.4 Dbm
Receiver Input Power, Each Lane (maximum)
1.5 Dbm
Cable Type
Smf
Core Size/cladding
9/125 Micrometer
Distance
10 Km
Maximum Power Consumption (w)
3.5 W
Operating Temperature (range)
0° C To 70° C
Storage Temperature
–40° C To 85° C
Condition:
New
Availability:
In Stock.
Our Warranty:
90 Days.
