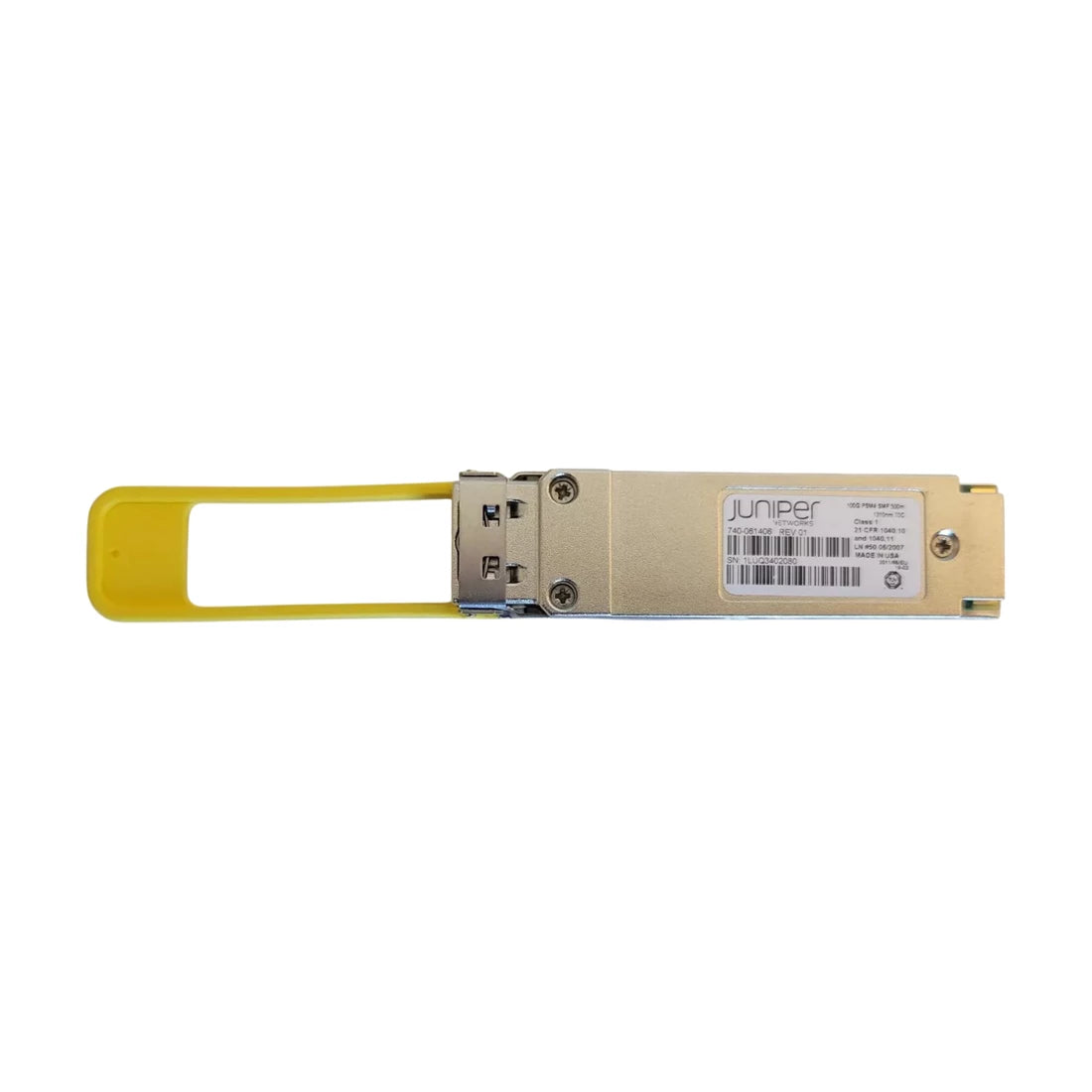

Juniper Networks JNP-QSFP-100G-PSM4 QSFP28 100GBASE-PSM4 optics for up to 2 km transmission over parallel SMF

|
Product Overview
Juniper Networks JNP-QSFP-100G-PSM4 Qsfp28 100g Base Psm4 Optics For Up To 500 M Transmission Over Parallel Smf
Specifications
Speed
4 X 25 Gigabit Ethernet, 100 Gigabit Ethernet
Breakout Capable
Yes
Breakout Cables
Mtp-4lc-s1m, Mtp-4lc-s3m, Mtp-4lc-s5m, Mtp-4lc-s10m Can Be Used As Break-out Cables
Transceiver Type
Qsfp28
Product Type
Optical Transceiver
Connector
Mpo-12 Apc
Monitoring Available
Yes
Digital Optical Monitoring
Yes
Diagnostic Support
Yes
Signaling Rate, Each Lane
25.78125 Gbd +/- 100 Ppm
Transmitter Wavelengths (range)
1295 Nm Through 1325 Nm
Transmitter Output Power, Each Lane (minimum)
–9.4 Dbm
Transmitter Output Power, Each Lane (maximum)
2.0 Dbm
Receiver Input Power, Each Lane (minimum)
–12.66 Dbm
Receiver Input Power, Each Lane (maximum)
2.0 Dbm
Cable Type
Smf
Core Size/cladding
9/125 Micrometre
Distance
500 M
Maximum Power Consumption (w)
3.5 W
Operating Temperature (range)
0° C To 70° C
Storage Temperature
–40° C To 85° C
Condition:
Used Clean Tested.
Availability:
In Stock.
Our Warranty:
90 Days.
