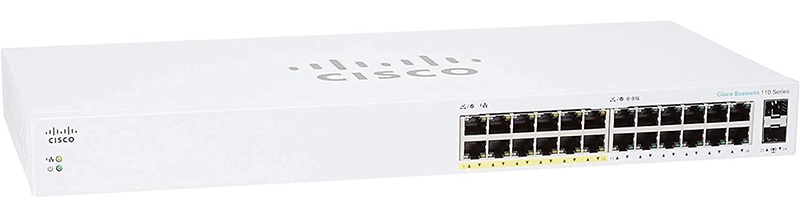

CBS110-24PP仕様 | ||||
仕様 | 説明 | |||
容量(100万パケット/秒(mpps))(64バイトパケット) | 35.7mpps | |||
| 48Gbps | |||
合計システムポート | 24 ギガビットイーサネット | |||
RJ-45 ポート | 24 ギガビットイーサネット | |||
PoE専用電源 | 100W | |||
PoEをサポートするポートの数 | 12 | |||
パケットバッファ | 2 メガビット | |||
ユニット寸法(W x 奥行き x 高さ) | 440 x 203 x 44 mm (17.32 x 7.97 x 1.73 インチ) | |||
一般的な | ||||
ヘッドオブライン(HOL)ブロッキング | HOLブロッキング防止 | |||
MAC テーブル | CBS110-5T-D の 2K アドレス その他のモデルでは8Kアドレス | |||
ジャンボフレーム | 9216 バイト | |||
サービス品質 (QoS) | 802.1p 優先度ベース、4 つのハードウェア キュー、優先度キューイング、重み付けラウンドロビン (WRR) | |||
ループ検出 | ネットワーク内のループを発見し、ブロードキャストストームを回避するのに役立ちます | |||
ケーブル診断 | ネットワークケーブルの障害やショートを迅速に特定してトラブルシューティング | |||
メディア依存インターフェース | 自動メディア依存インターフェイス (MDI) と MDI クロスオーバー (MDI-X) | |||
標準 | IEEE 802.3 10BASE-T イーサネット、IEEE 802.3u 100BASE-TX ファスト イーサネット、IEEE 802.3ab 1000BASE-T ギガビット イーサネット、IEEE 802.3z ギガビット イーサネット、IEEE 802.3x フロー制御、802.1p 優先度、エネルギー効率の高いイーサネット、802.3af、Power over Ethernet | |||
ハードウェア | ||||
LED について | 電源、リンク/アクティビティ(ケーブル診断、ループ検出)、ギガビット、 * PoE、 * 最大 PoE。 *存在する場合 | |||
ケーブルタイプ | カテゴリー5e以上 | |||
取り付けオプション | デスクトップ、壁掛け、ラックマウント | |||
物理的なセキュリティロック | ケンジントンロックスロット | |||
フラッシュ | CBS110-16T、CBS110-16PPの場合は16MB CBS110-24T、CBS110-24PPの場合は8MB | |||
CPU | CBS110-16T、CBS110-16PP、CBS110-24T、CBS110-24PP 用 400 MHz ARM | |||
CPUメモリ | CBS110-16T、CBS110-16PPの場合は128 MB CBS110-24T、CBS110-24PPの場合は64MB | |||
サポートされているSFPモジュール | 製品コード | メディア | スピード | 最大距離 |
MGBSX1 MGBSX1 | マルチモードファイバー | 1000 Mbps | 500メートル | |
MGBLX1 | シングルモードファイバー | 1000 Mbps | 10キロ | |
MGBLH1 | シングルモードファイバー | 1000 Mbps | 40キロ | |
MGBT1 | UTP 猫 5e | 1000 Mbps | 100メートル | |
環境 | ||||
力 | CBS110-5T-D、 CBS110-8T-D: DC 12V、1.0A CBS110-8PP-D: DC 48V、1.25A CBS110-16T、CBS110-16PP、CBS110-24T、CBS110-24PP: 110-240VAC、50-60Hz、内部、ユニバーサル | |||
グリーン(電力効率) | すべての銅線ギガビットイーサネットポートでIEEE 802.3azをサポート | |||
コンプライアンス/認証 | UL(UL 60950)、CSA(CSA 22)。2)、CEマーク、FCCパート15(CFR 47)クラスA、FCCクラスB* *モデルを選択 | |||
動作温度 | 32° ~ 104°F (0° ~ 40°C) | |||
保管温度 | –4° ~ 158°F (–20° ~ 70°C) | |||
動作湿度 | 10% ~ 90%、相対、非結露 | |||
保管湿度 | 5% ~ 90%、相対、非結露 | |||
保証 | 限定寿命 | |||
パッケージ内容 | ||||
● Cisco Business 110 シリーズ ● 電源コードまたはアダプター ● クイックスタートガイド ● 取り付け キット | ||||
最小要件 | ||||
● 802.3 イーサネット、802.3u ファスト イーサネット、または 802.3ab ギガビット イーサネットをサポートするデバイス ● Cat5e以上のイーサネットケーブル ● 各コンピュータのネットワーク インターフェース カード |
