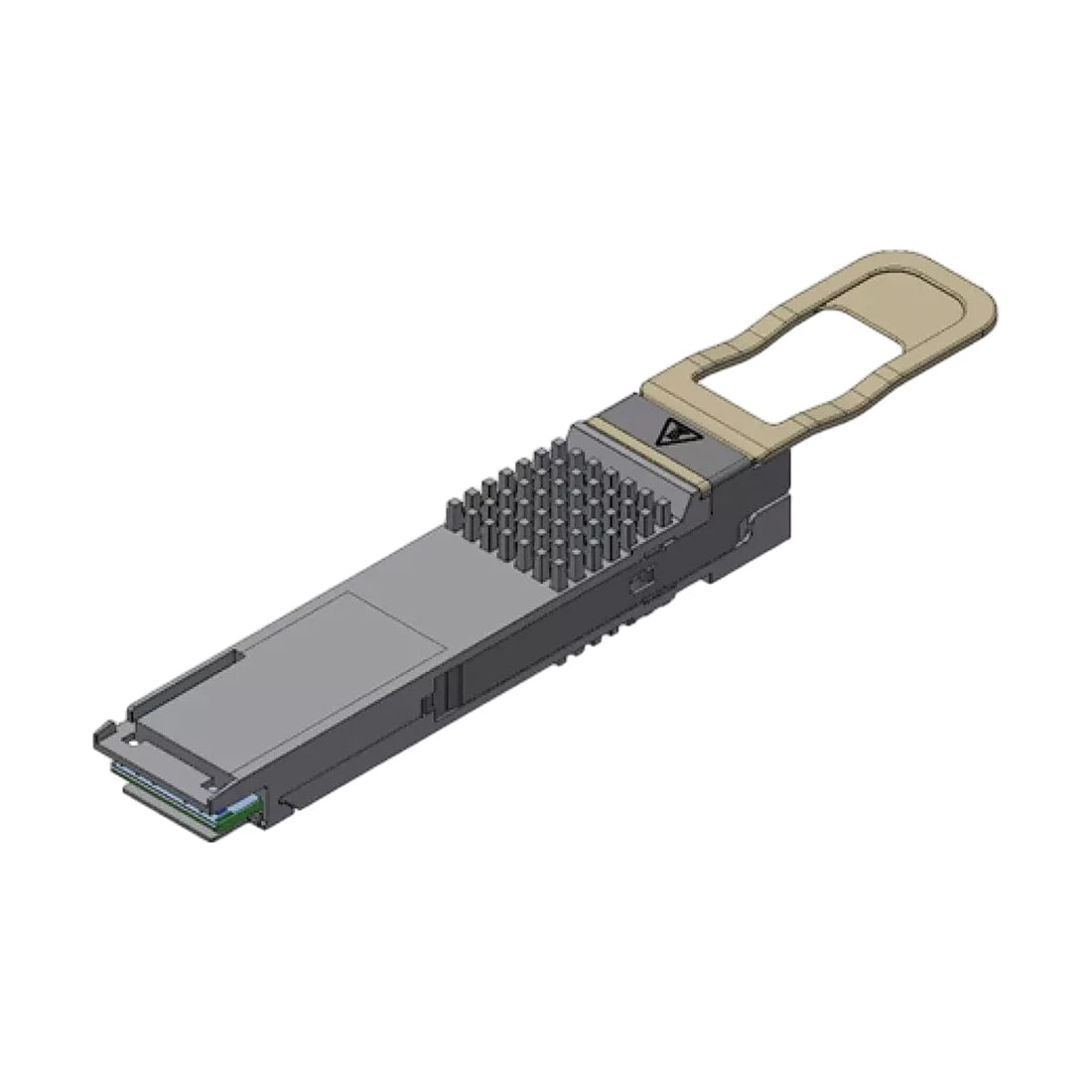

NVIDIA MMA1Z00-NS400 Single Port Transceiver 400Gbps NDR QSFP112 MPO 1310nm SMF Up to 100m Flat Top

|
Product Overview
NVIDIA MMA1Z00-NS400 Single Port Transceiver 400gbps Ndr Qsfp112 Mpo 1310nm Smf Up To 100m Flat Top
Overview
The NVIDIA MMA1Z00-NS400 Is An Infiniband And Ethernet 400gb/s, Single-port, Qsfp112, Sr4 Multimode Parallel Transceiver Using A Single, 4-channel Mpo-12/apc Optical Connector. The Short Reach 4-channel (sr4) Design Uses 100g-pam4 Modulation And Has A Maximum Fiber Reach Of 50-meters Using Om4 Multimode Fiber And Assumes Two Optical Patch Panels In The Link. It Has Identical Design And Internals As The Osfp Version, Only With Different Connector Shells.
the Transceiver Firmware Supports Both Infiniband And Ethernet And Is Automatically Enabled Depending On The Protocol Of The Switch Attached To. The Qsfp112 Shell Has A Flat-top And Utilizes The Riding Heat Sink (cooling Fins) On The Connectx-7 Or Bluefield-3 Connector Cage. The Small Bumps Near The Pull Tab Provide Additional Cooling And Remain Outside The Host Connector Cage.
when Linked To 1:2 Splitter Fiber Cable, The Split End Has Only 2 Channels And Will Activate Only 2 Channels In The 400g Transceiver, Automatically Creating A 200g Speed And Reducing Power.
multimode Optics Is Denoted By A Tan-colored Pull Tab And Aqua-colored Optical Fiber. Green Plastic Shell On The Mpo-12/apc Optical Connector Denotes Angled Polish Connector (apc) And Is Not Compatible With The Aqua Colored Ultra-flat Polished Connectors (UPC).
NVIDIAS Single-port And Twin-port Transceiver Combinations Guarantee Optimal Operation In NVIDIA End-to-end Infiniband Systems And Are Rigorously Production Tested To Ensure The Best Out-of-the-box Installation Experience, Performance, And Durability.
Key Features
Ib And Eth Support
400g Sr4 Multimode
4 Channels Of 100g-pam4 Modulation
Qsfp112 Connector Shell
850nm Wavelength Vcsel Laser
Single Mpo-12/apc Optical Connector
Max Reach:
- 30m On Om3
- 50m On Om4
8.5w Max (4 Channels)
6.5w Max (2 Channels)
Single 3.3v Power Supply
Class 1 Laser Safety
Hot Pluggable, Rohs Based
Qsfp112 Msa
Cmis 4.0 Compliant
Case Temperature Range Of 0°c To +70°c
Applications
Used In Connectx-7/qsfp112 Adapters Or Bluefield-3/qsfp112 Dpus Linked To Twin-port Transceivers In 2x400g Ib/en Switches
Condition:
New Factory Sealed.
Availability:
In Stock.
Our Warranty:
90 Days.
