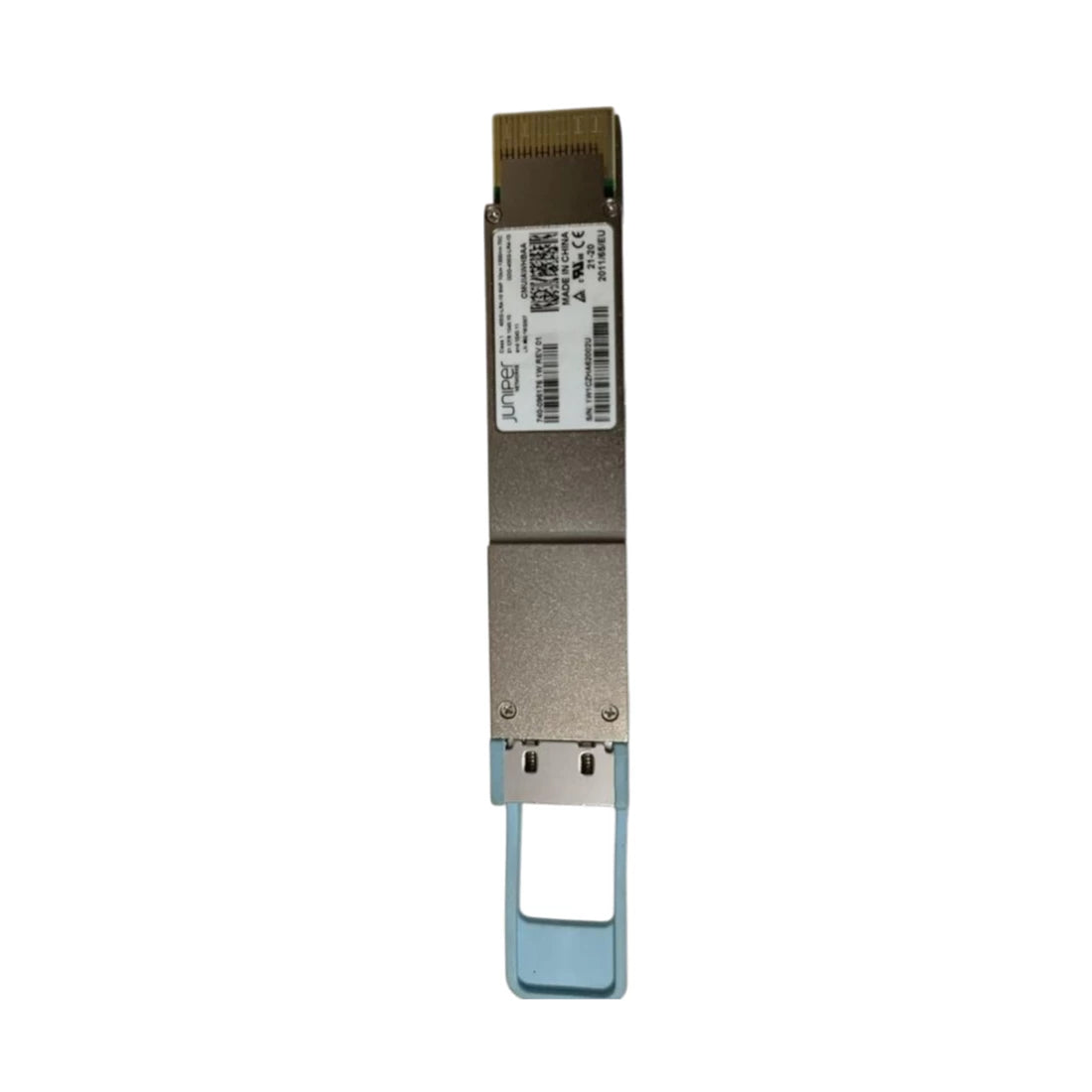

Juniper Networks 740-096176 SMF 10 km Standard Temperature (0 through 70°C) Duplex LC/PC Receptacle Transceiver

|
Product Overview
Juniper Networks 740-096176 Smf 10 Km Standard Temperature (0 Through 70°c) Duplex Lc/pc Receptacle
Specifications
Speed: 400 Gigabit Ethernet
Breakout Capable: No
Form Factor: Qsfp-dd
Product Type: Optical Transceiver
Connector: Duplex Lc Pc/upc
Monitoring Available: Yes
Digital Optical Monitoring: Yes
Standard: 100g Lambda Msa, 400g-lr4-10, Ieee Std 802.3cu, 400gbase-lr4-6
Msa Compliance (sff, For E.g. Sff-8665):
- Qsfp-dd Msa, Qsfp-dd Hardware Specification For Qsfp Double Density 8x Pluggable Transceivers, Rev 5.1
- Common Management Interface Specification (cmis), Rev 4.0
Digital Diagnostic Monitoring:
- Temperature
- Supply Voltage
- Tx Bias Current
- Tx Power
- Rx Power
Signaling Rate Each Lane:
- Host Lane: Pam4, 26.5625 Gbd ± 100 Ppm
- Media Lane: Pam4, 53.125 Gbd ± 100 Ppm
Transmitter Fibers: 1
Transmitter Wavelengths (range):
- 1264.5 Nm To 1277.5 Nm
- 1284.5 Nm To 1297.5 Nm
- 1304.5 Nm To 1317.5 Nm
- 1324.5 Nm To 1337.5 Nm
Receive Lane Wavelengths (range):
- 1264.5 Nm To 1277.5 Nm
- 1284.5 Nm To 1297.5 Nm
- 1304.5 Nm To 1317.5 Nm
- 1324.5 Nm To 1337.5 Nm
Transmitter Output Power Each Lane (minimum): -2.7 Dbm
Transmitter Output Power Each Lane (maximum): 5.1 Dbm
Transmitter And Dispersion Eye Closure For Pam4 (tdecq) Each Lane (maximum): 3.9 Db
Receiver Input Power Each Lane (minimum): -9 Dbm
Receiver Input Power Each Lane (maximum): 5.1 Dbm
Stressed Receiver Sensitivity (oma) Each Lane (maximum): -4.3 Dbm
Cable Type: Smf
Core Size/cladding: 9/125 Micro-meter
Distance: 10 Km
Maximum Power Consumption (w): 12 W
Operating Temperature (range): 0° C To 70° C
Storage Temperature: –40° C To 85° C
Typical Weight & Dimensions:
- Weight: 0.2 Kg
- Height: 13.5 Mm
- Width: 18.35 Mm
- Depth: 93.26 Mm
Condition:
Brand New.
Availability:
In Stock.
Our Warranty:
90 Days.
