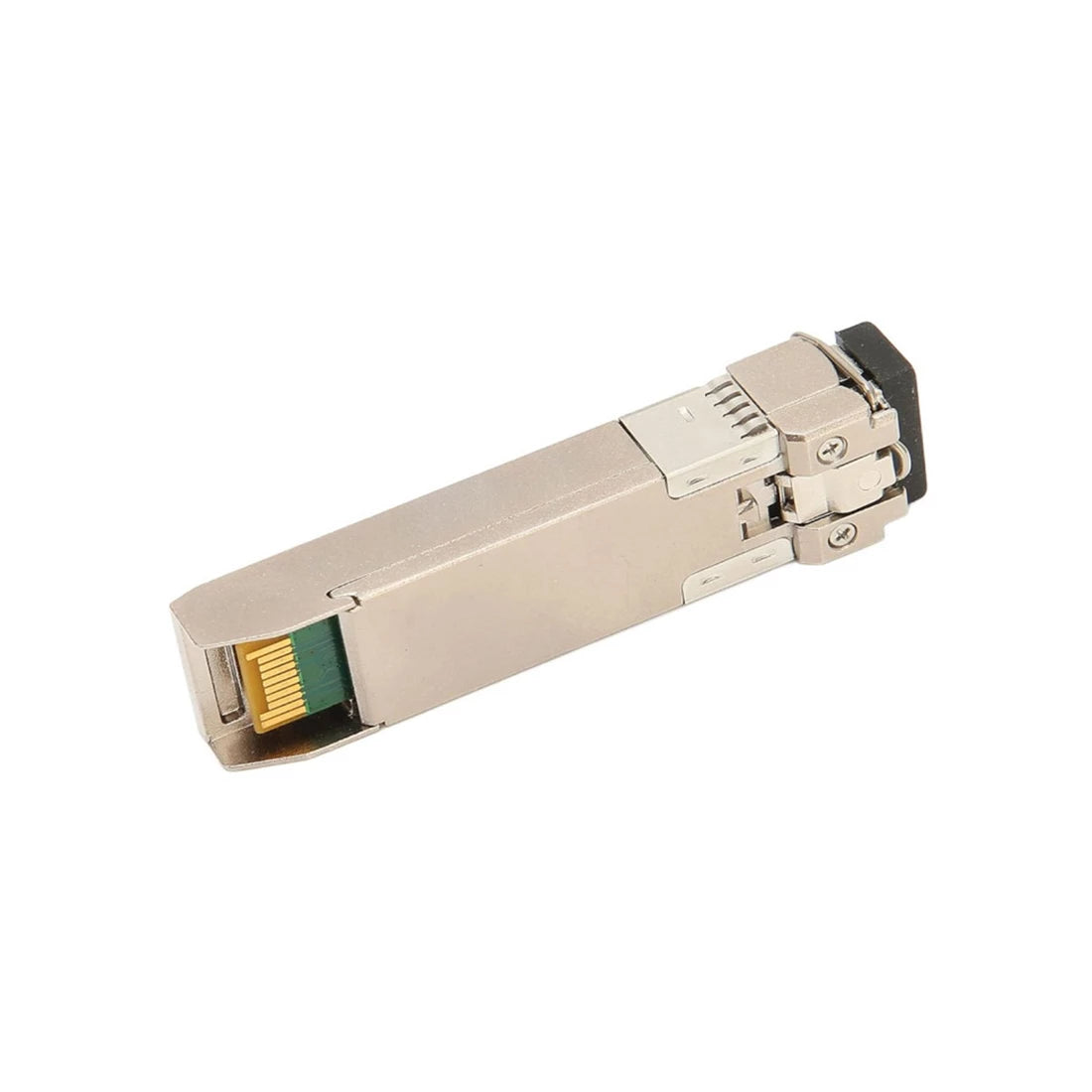

Juniper Networks SFPP-10G-LR-C 10GE-LR SMF 10km 1310nm Transceiver

|
Product Overview
Juniper Networks SFPP-10G-LR-C 10ge-lr Smf 10km 1310nm Transceiver.
Specifications
Speed
10 Gigabit Ethernet
Breakout Capable
No
Transceiver Type
Sfp+
Product Type
Optical Transceiver
Connector
Duplex Lc
Monitoring Available
Yes
Digital Optical Monitoring
Yes
Standards Compliance (ethernet/otn Standard, For E.g. 100gbase-lr4)
10gbase-l
Msa Compliance (sff, For E.g. Sff-8665)
Sff-8431
Sff-8472
Sff-8432
Digital Diagnostic Monitoring
Transceiver Temperature
Transceiver Supply Voltage
Tx Bias Current
Tx Output Power
Rx Received Optical Power
Signaling Rate, Each Lane
10 Gbps
Transmitter Fibers
Smf
Transmitter Wavelengths (range)
1260 Nm To 1355 Nm
Receive Lane Wavelengths (range)
1260 Nm To 1355 Nm
Transmitter Output Power, Each Lane (minimum)
–8.2 Dbm
Transmitter Output Power, Each Lane (maximum)
0.5 Dbm
Receiver Input Power, Each Lane (minimum)
–14.4 Dbm
Receiver Input Power, Each Lane (maximum)
–1.0 Dbm
Receiver Sensitivity (oma), Each Lane (maximum)
-14.1 Dbm
Stressed Receiver Sensitivity (oma) Each Lane (maximum)
-10.3 Dbm
Cable Type
Smf
Core Size/cladding
9/125 Micrometer
Distance
10 Km
Maximum Power Consumption (w)
1.0 W
Operating Temperature (range)
-5° C To 70° C
Storage Temperature
–40° C To 85° C
Typical Weight & Dimensions
Width: 14 Mm
Height: 12.05 Mm
Length: 57.5 Mm
Weight: 0.15 Lb
Condition:
New.
Availability:
In Stock.
Our Warranty:
90 Days.
