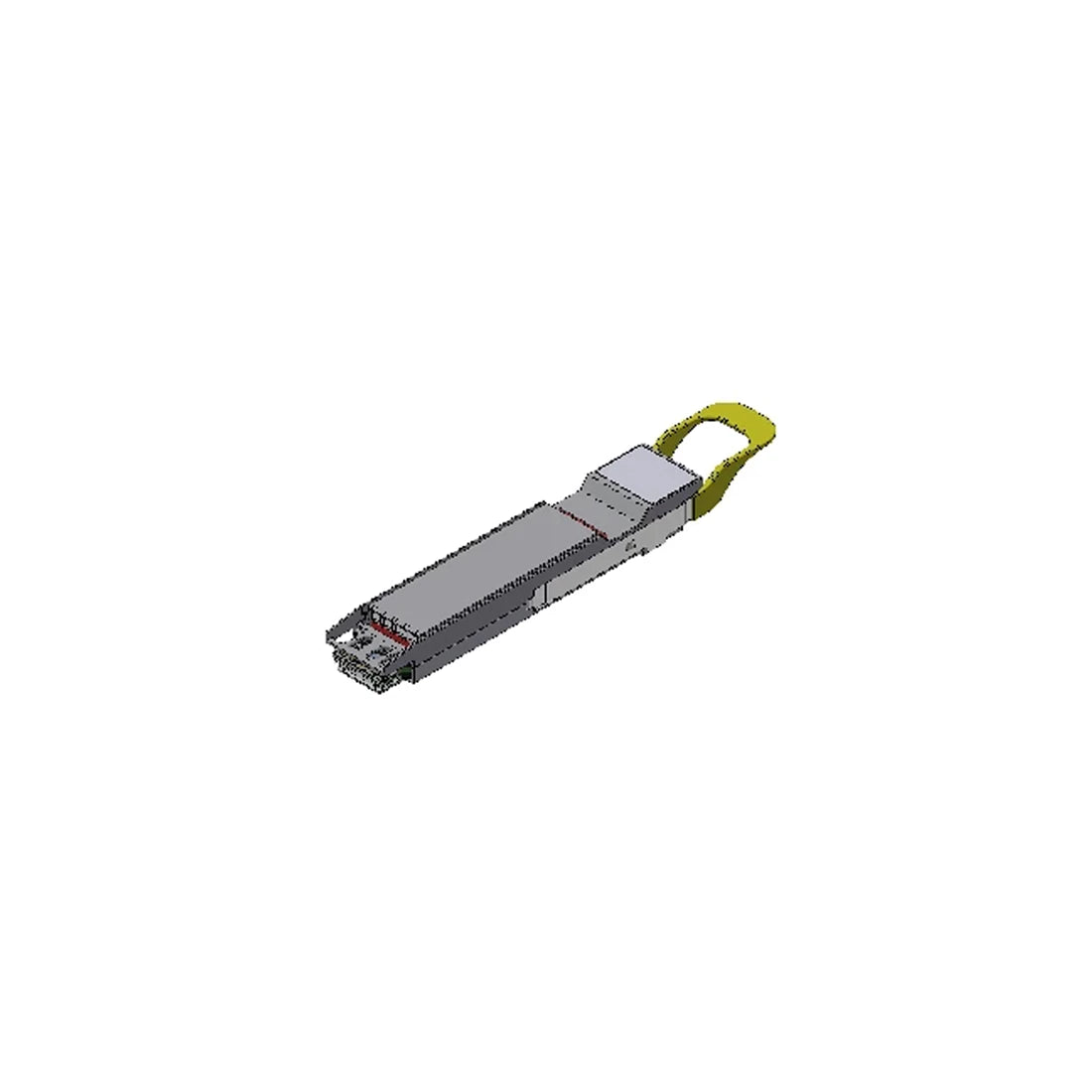

NVIDIA 980-9IAH1-00XM00 Twin Port Transceiver 1600Gbps OSFP 2xMPO 1310nm SMF up to 500m IHS

|
Product Overview
NVIDIA 980-9IAH1-00XM00 Twin Port Transceiver 1600gbps Osfp 2xmpo 1310nm Smf Up To 500m Ihs.
Overview
The NVIDIA Mms4a00 Is A 1600gb/s 2xdr4, Single Mode Optical Transceiver Supporting The Xdr 800gb/s Infiniband Protocol. The Line Rate Is 200gb/s Using Pulse Amplitude Modulation At 4-channels Denoted As 200g-pam4 Enabling Two Data Bits To Transfer Per Clock Pulse.
The Electrical Configuration Is 8-channels Of 200g-pam4. Optical Configuration Is Based On Two Datacenter Reach, 4-channel (2xdr4), 800gb/s Optical Connectors.
Optical Connectors Are Multiple Push-on 12-fiber, Angled Polished Connector Or Mpo-12/apc. Two Mpo-12/apc Optical Connectors Are Used Per Transceiver.
The 2x800g Transceiver Engine Enables The Infiniband Quantum-x800 Qm3400, 72-cage Switch To Support 144-ports Of 800gb/s.
Based On 9-um, Single Mode Fibers, The Main Application Is Linking Two Switches Together Up To 500-meters, Or To Two 800g Links To Two Switches Or Network Adapters For Storage And Compute Servers. The 500-meter Length Assumes Two Optical Patch Panels Or Four Optical Connectors In The LINK.
NVIDIAS Transceivers Guarantee Optimal Operation In NVIDIA End-to-end Infiniband Systems, And Rigorous Production Testing Ensures The Lowest Bit Error Rates, Low-latency, And Best Out-of-the-box Installation Experience, Performance, And Durability.
Key Features
1600gb/s Single Mode Transceiver
8-channels Of 200g-pam4 Electrical Modulation
Two Ports Of 4-channel 200g-pam4 Optical Modulation
Two Mpo-12/apc Optical Connectors
1310nm Laser
Maximum Reach: 500-meters
33.5w Max Power
Single 3v Power Supply
Class 1 Laser Safety
Hot Pluggable, Rohs Compliant
Supports Cmis 4.0
Case Temperature Range Of 20°c To +70°c
Secure Firmware Boot And Update Features
Applications
Used In Quantum-3 Air-cooled And Liquid-cooled Switch
Condition:
New Factory Sealed.
Availability:
In Stock.
Our Warranty:
90 Days.
