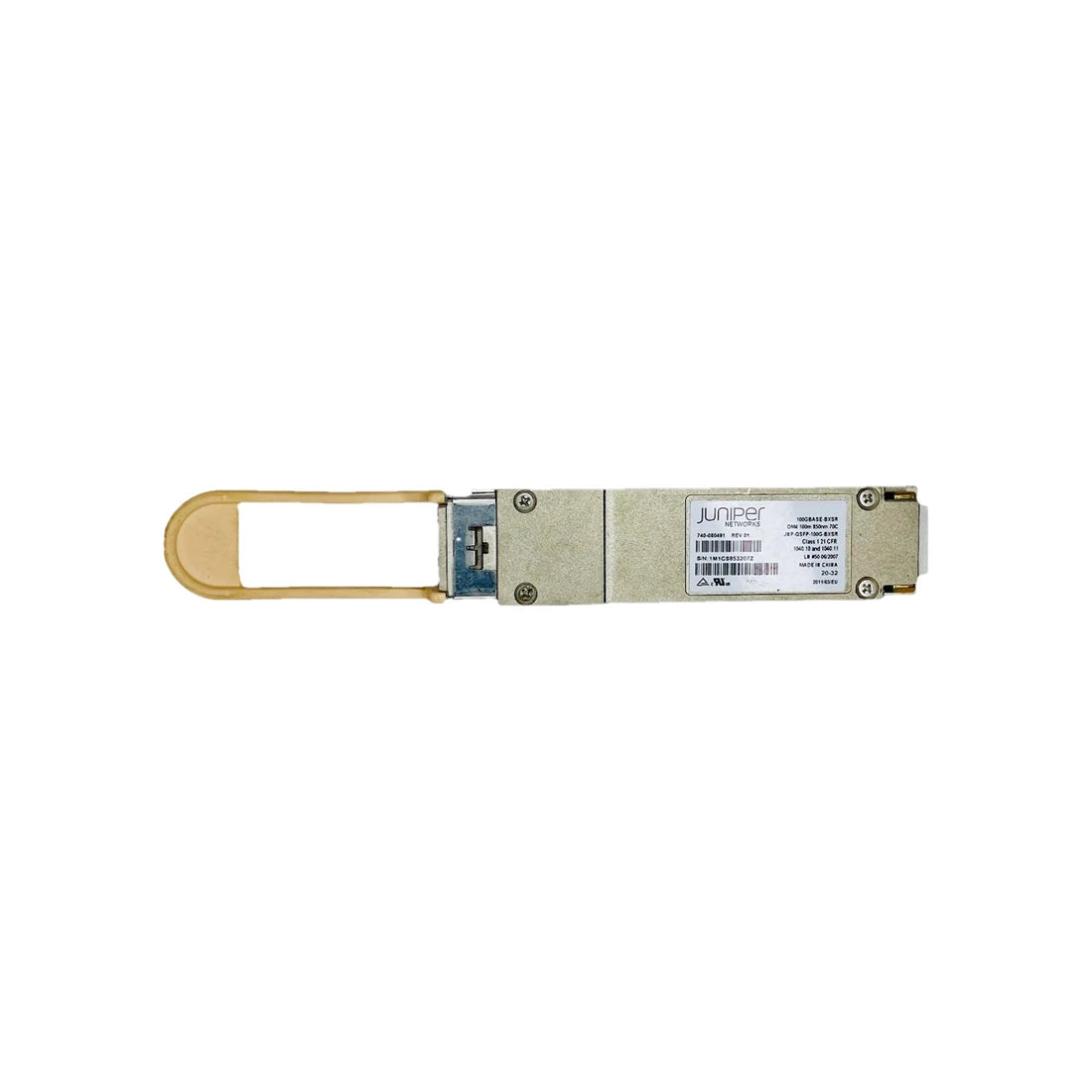

JUNIPER NETWORKS 740-080491 QSFP28 Form Factor 100G bidirectional Transceiver 100M Over OM3/OM4 (SR)

|
Product Overview
Juniper Networks 740-080491 Qsfp28 Form Factor 100g Bidirectional Transceiver 100m Over Om3/om4 (sr)
Specifications
Cable Type
Mmf
Distance
70 M(om3) 100 M(om4).
Effective Modal Bandwidth
2000 Mhz X Km(om3) 4700 Mhz X Km(om4)
Fiber Grade
Om3/om4
Msa Compliance (sff, For E.g. Sff-8665)
Sff-8636, Sff-8679, Sff-8024
Max Distance(km)
0.1
Maximum Power Consumption (w)
3.5 W
Operating Temperature (range)
0° C To 70° C
Optic Type (commercial Vs Service Provider Grade)
Mmf
Receive Lane Wavelengths (range)
Wavelength 1: 847nm To 863nm
Wavelength 2: 900nm To 916 Nm
Receiver Input Power, Each Lane (maximum)
+4.0 Dbm
Receiver Input Power, Each Lane (minimum)
-7.9 Dbm
Storage Temperature
–40° C To 85° C
Stressed Receiver Sensitivity (oma) Each Lane (maximum)
-3.0 Dbm
Transmitter Rms Spectral Width (maximum)
0.59 Nm
Transmitter Output Power, Each Lane (maximum)
4.0 Dbm
Transmitter Output Power, Each Lane (minimum)
6.0 Dbm
Transmitter Wavelengths (range)
Wavelength 1: 847nm To 863nm
Wavelength 2: 900nm To 916 Nm
Typical Weight & Dimensions
Typically Weigh: 100 Grams
Dimensions(h X W X D): 13.5 X 18.4 X 72.4 Mm
Condition:
New.
Availability:
In Stock.
Our Warranty:
90 Days.
