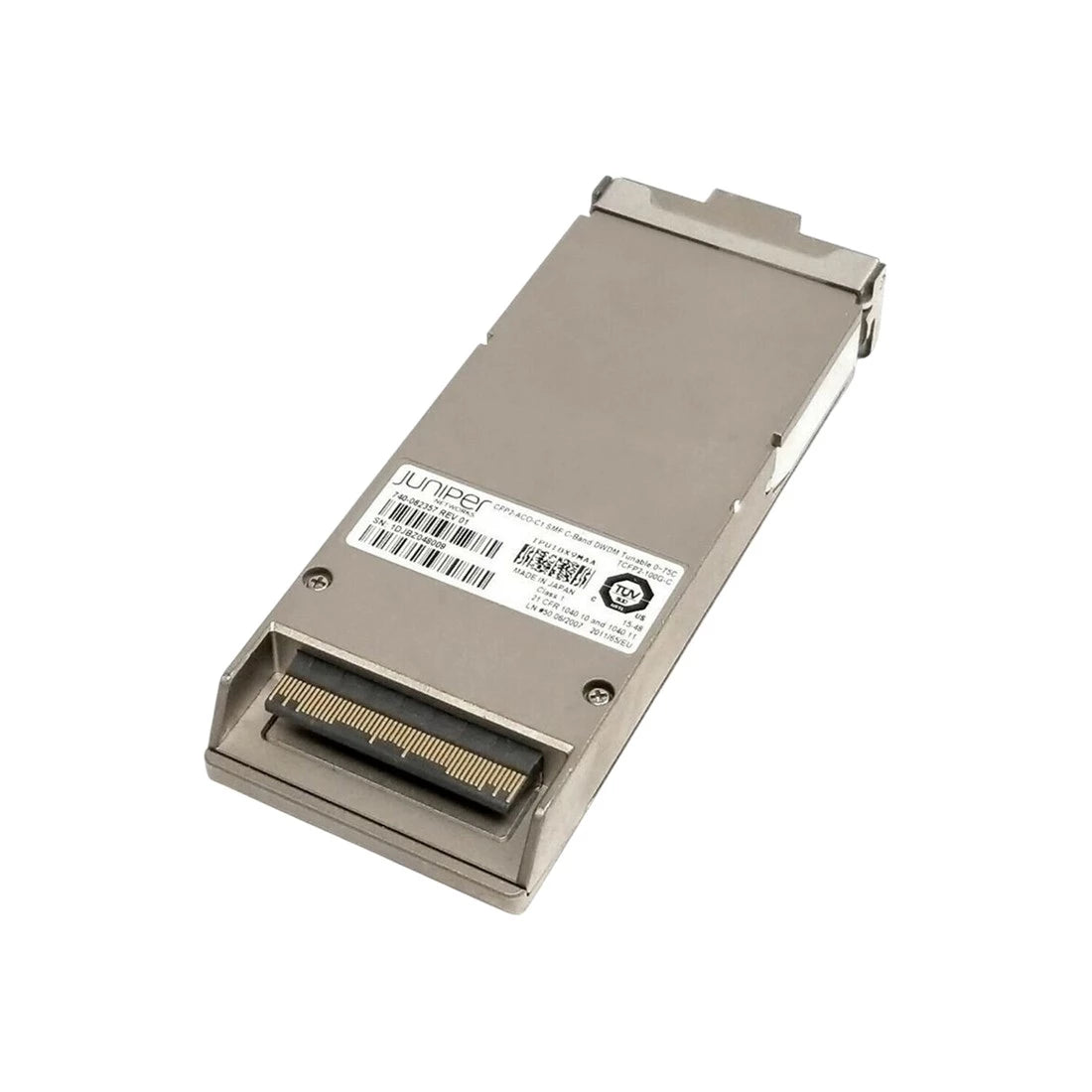

Juniper Networks TCFP2-100G-C CFP2 100 Gigabit Ether Transceiver Module

|
Product Overview
Juniper Networks TCFP2-100G-C Cfp2 100 Gigabit Ether Transceiver Module
Specifications
Speed
100 Gigabit Ethernet
Breakout Capable
No
Transceiver Type
Cfp2-aco
Product Type
Optical Transceiver
Connector
Duplex Lc
Monitoring Available
-
Digital Optical Monitoring
-
Standards Compliance (ethernet/otn Standard, For E.g. 100gbase-lr4)
Itu-t G.709 - Interfaces For The Optical Transport Network.
Itu-t G.798 - Characteristics Of Optical Transport Network Hierarchy Equipment Functional Blocks
Itu-t G.694.1 - Spectral Grids For Wdm Applications: Dwdm Frequency Grid
Rfc 3591—definitions Of Managed Objects For The Optical Interface Type
Diagnostic Support
You Can View Optics-related Status By Using The Show Interfaces Transport Pm Optics And Show Interfaces Diagnostics Optics Operational-mode Cli Commands
Signaling Rate, Each Lane
Soft-decision Fec (sd-fec): 120.58 Gbps
High-gain Fec (hg-fec): 111.81 Gbps
G.709 Fec (gfec): 111.81 Gbps
Fec Types
Sd-fec: Soft-decision
Hg-fec: Staircase
Gfec: G.709
Note: Hg-fec Is Not Supported On The Ptx-5-100g-wdm Pic.
Channel Plan Wavelength Range
1568.362 Nm Through 1528.773 Nm
Channel Plan Frequency Range
191.15 Thz Through 196.10 Thz
Channel Spacing
50 Ghz
Channel Tunability
100 Channels
Optical Transmitter Output Power (on)
0 Dbm To -8dbm
Optical Transmitter Output Power (off)
-45 Dbm Or Lower
Optical Transmitter Wavelength Accuracy
+/–1.8 Ghz
Optical Transmitter Channel Tuning Time
60 Seconds Or Less
Optical Receiver Input Power Range
–18 Through 0 Dbm (for Normal)
–22 Through +/- 3 Dbm (for Extended)
Optical Receiver Damage Input Power Threshold
+17 Dbm
Optical Receiver Input Sensitivity (unamplified Or Dark-fiber Applications)
–30 Dbm For Sdfec
-28 Dbm For Hgfec
-23 Dbm For Gfec
Optical Receiver Minimum Osnr (back-to-back), Typical
14db For Sdfec
16db For Hgfec
24db For Gfec
Optical Receiver Minimum Osnr (back-to-back), Worst-case
14.5db For Sdfec
16.5db For Hgfec
25db For Gfec
Cable Type
Smf
Core Size/cladding
9/125 Micrometer
Distance
2000 Km
Notes For Distance
2000 Km Depending On The Actual Link
Maximum Power Consumption (w)
12 W
Operating Temperature (range)
0° C To 75° C
Storage Temperature
–40° C To 85° C
Condition:
Used Clean Tested.
Availability:
In Stock.
Our Warranty:
90 Days.
