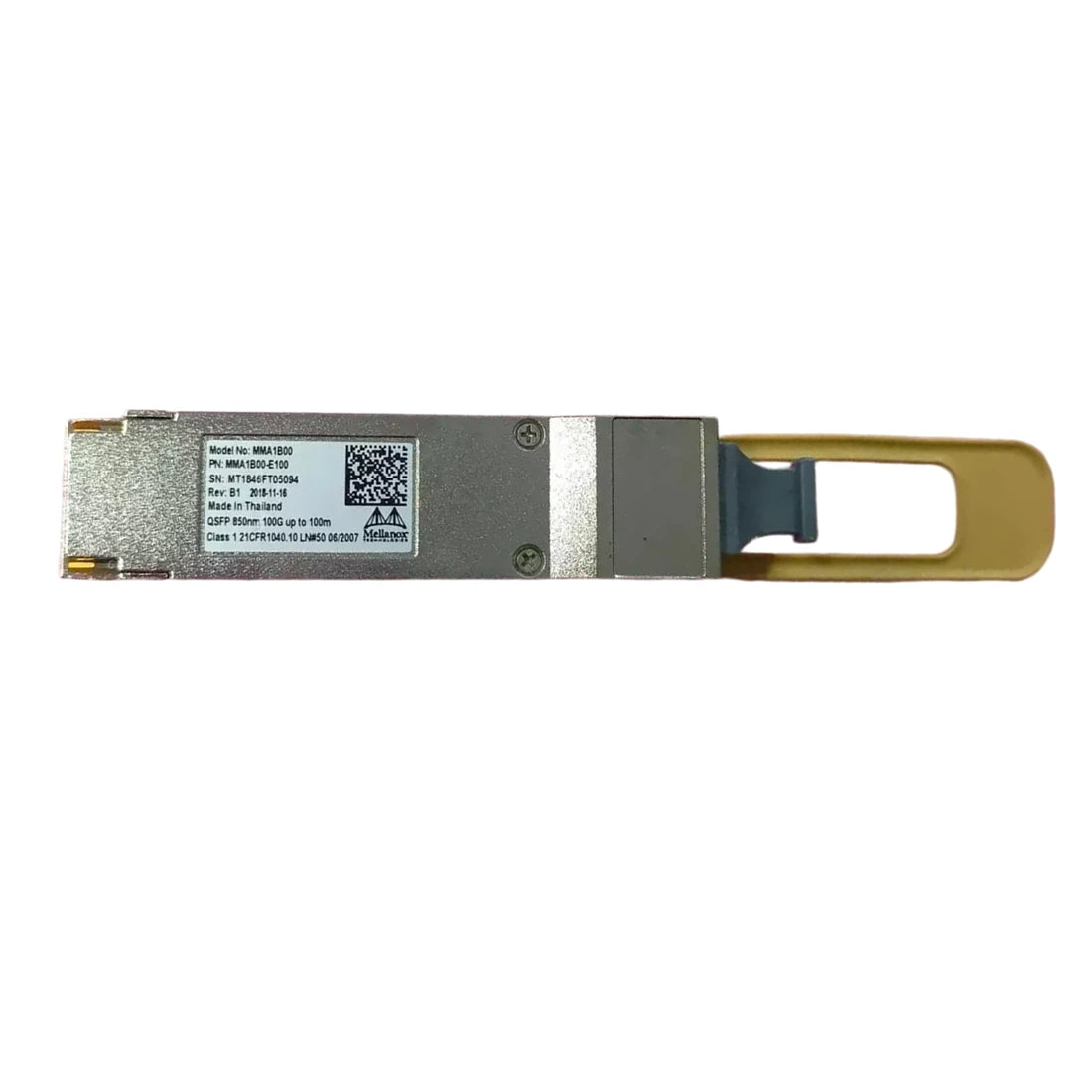

Nvidia MMA1B00-E100 IB EDR up to 100Gb/s QSFP28 MPO 850nm up to 100m Transceiver Ref
无法加载取货情况
Nvidia MMA1B00-E100 IB EDR up to 100Gb/s QSFP28 MPO 850nm up to 100m Transceiver Ref
HKD 680.00
|
Product Overview
NVIDIA MMA1B00-E100 Ib Edr Up To 100gb/s Qsfp28 Mpo 850nm Up To 100m Transceiver
Introduction
NVIDIA MMA1B00-E100 Pluggable Optical Transceiver Is Designed For Use In 100gb/s Infiniband Link Protocol Applications
This Sff-8665 Compliant Transceiver Is A Flexible Alternative To An Active Optical Cable (aoc), As It Combines High Port Density And Configurability
with Longer Reach Than Passive Copper Cables In The Data Centers. The Mma1b00 Transceiver Has A Standard Qsfp28 Port On The Electrical Side Towards The Host System
The Optical Cable Is Attached Via A Standard Mpo Connector. The Optical Interface Comprises Four Optical Beams/fibers In Each Direction, Intended
for Multimode Optical Cable Attachments. Each Fiber/beam Operates At Signaling Rates Up To 25.78125gbd
Key Features
Up To 100gb/s
Programmable Rx Output Amplitude
Programmable Rx Output Emphasis
Programmable Tx Input Equalizer
Selectable Retiming
Sff-8665 Compliant
3.3v Power Supply
Qsfp28 Power Class 3
Class 1 Laser Safety
Maximum Link Length Of 70m On Om3, And 100m On Om4 Multimode Fiber At 100gb/s
Hot Pluggable
Rohs Compliant
Ieee 802.3 100gbase-sr4 Compliant
Ic Management Interface
Condition:
Refurbished.
Availability:
In Stock.
Our Warranty:
90 Days.
