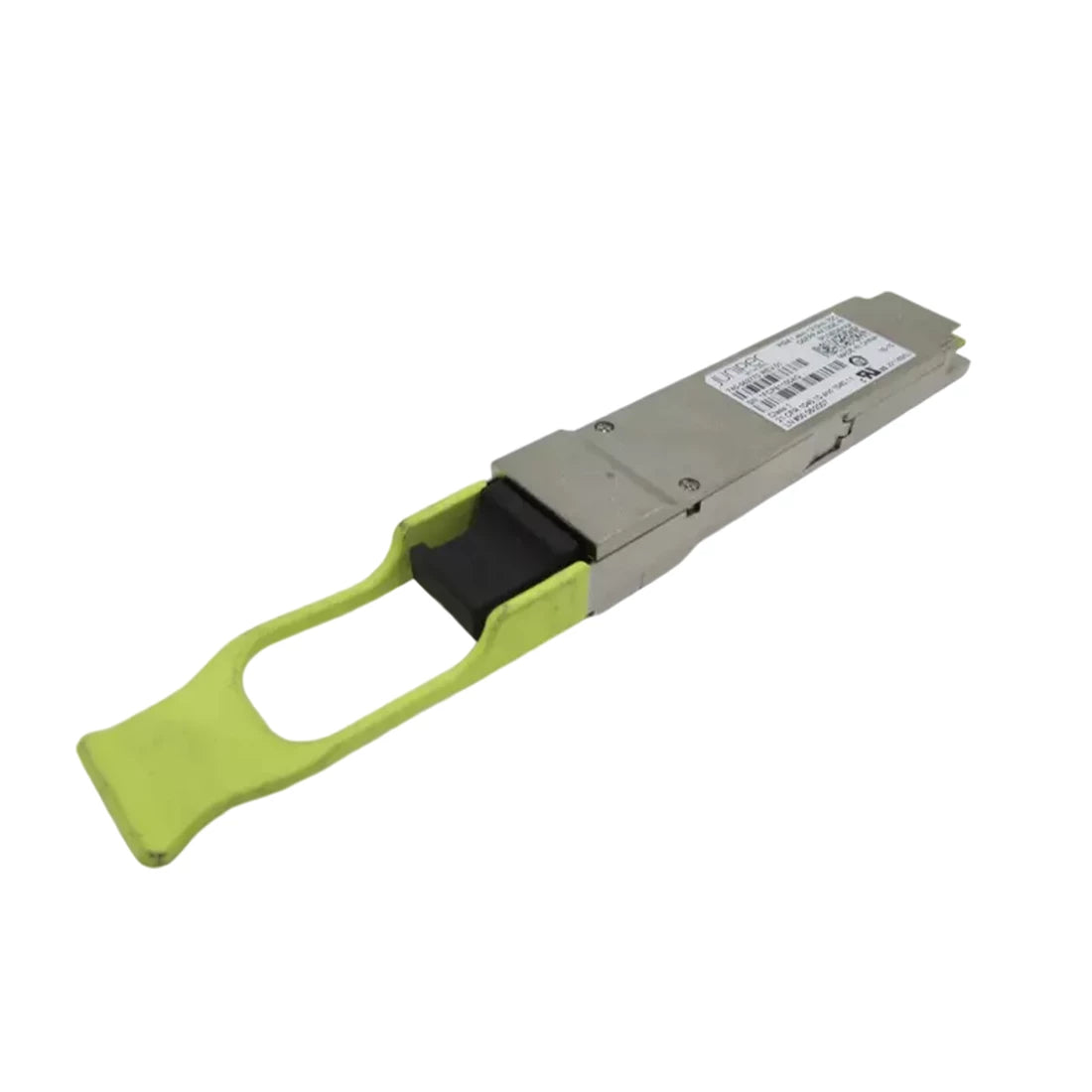

Juniper Networks 740-056706 QSFP+ 40GBASE optics up to 1.4 km transmission on parallel single mode

|
Product Overview
Juniper Networks 740-056706 Qsfp+ 40gbase Optics Up To 1.4 Km Transmission On Parallel Single Mode (4x10gbe Long Reach Up To 1.4 Km)
Specifications
Speed
4 X 10 Gigabit Ethernet
Breakout Capable
Yes
Transceiver Type
Sfp+
Product Type
Optical Transceiver
Connector
Mpo-12 Apc
Monitoring Available
Yes
Digital Optical Monitoring
Yes
Signaling Rate, Each Lane
10.3125 Gbd +/- 100 Ppm
Transmitter Wavelengths (range)
1290.5 Nm Through 1355 Nm
Receive Lane Wavelengths (range)
1260 Nm Through 1355 Nm
Transmitter Output Power, Each Lane (minimum)
-10.4 Dbm
Transmitter Output Power, Each Lane (maximum)
1.5 Dbm
Optical Transmitter 3-db Spectral Width (maximum)
2.4 Nm
Cable Type
Smf
Core Size/cladding
9/125 Micrometer
Distance
1.4 Km
Maximum Power Consumption (w)
3.5 W
Operating Temperature (range)
0° C To 70° C
Storage Temperature
–40° C To 85° C
Condition:
Used Clean Tested.
Availability:
In Stock.
Our Warranty:
90 Days.
