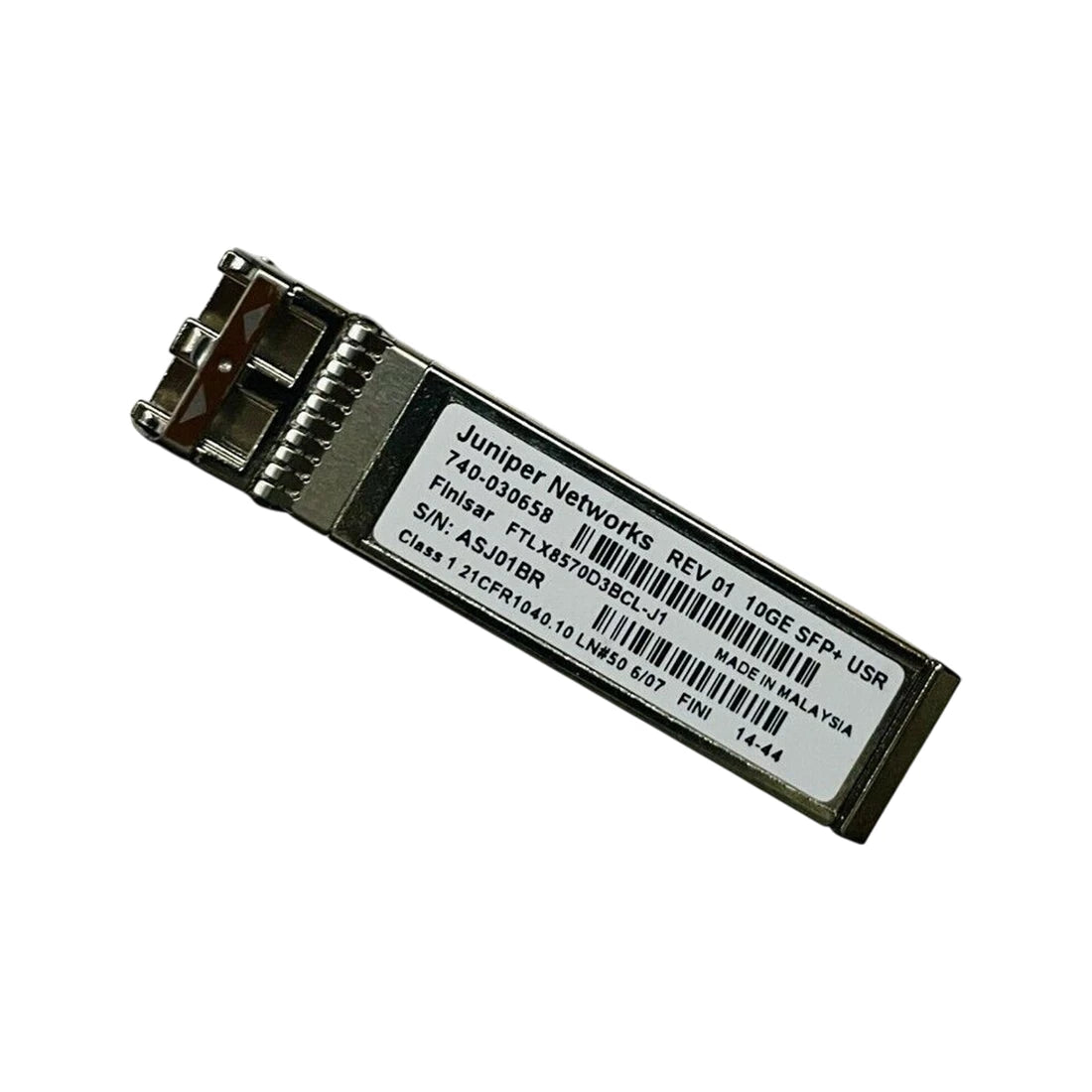

Juniper Networks SFPP-10G-USR-C 10GbE Ethernet SFP+ USR 100m Optical Transceiver

|
Product Overview
Juniper Networks SFPP-10G-USR-C 10gbe Ethernet Sfp+ Usr 100m Optical Transceive
Specifications
Speed: 10 Gigabit Ethernet
Breakout Capable: No
Form Factor: Sfp+
Product Type: Optical Transceiver
Connector: Duplex Lc
Monitoring Available: Yes
Digital Optical Monitoring: Yes
Standard: Juniper Networks Proprietary 10g-usr
Signaling Rate Each Lane:
- 9.95328 Gbd +/- 20 Ppm
- 10.3125 Gbd +/- 100 Ppm
Transmitter Wavelengths (range): 840 Nm To 860 Nm
Receive Lane Wavelengths (range): 840 Nm To 860 Nm
Transmitter Output Power Each Lane (minimum): -7.3 Dbm
Transmitter Output Power Each Lane (maximum): -1.3 Dbm
Receiver Input Power Each Lane (minimum): -9.9 Dbm
Receiver Input Power Each Lane (maximum): -1.0 Dbm
Optical Transmitter 3-db Spectral Width (maximum): 0.65 Nm
Cable Type: Mmf
Fiber Grade:
- Om1
- Om2
- Om3 (om4 Compatible)
Core Size/cladding: Om1(62.5/125 Mm), Om2(50/125 Mm) , Om3/om4 Compatible(50/125 Mm).
Effective Modal Bandwidth: Om1(200 Mhz X Km), Om2(500 Mhz X Km) , Om3/om4 Compatible(2000 Mhz X Km).
Distance: Om1(10 M), Om2(30 M) , Om3/om4 Compatible(100 M).
Maximum Power Consumption (w): 0.5 W
Operating Temperature (range):
Storage Temperature: 0° C To 70° C
Typical Weight & Dimensions: –40° C To 85° C
Condition:
Used Clean Tested.
Availability:
In Stock.
Our Warranty:
90 Days.
