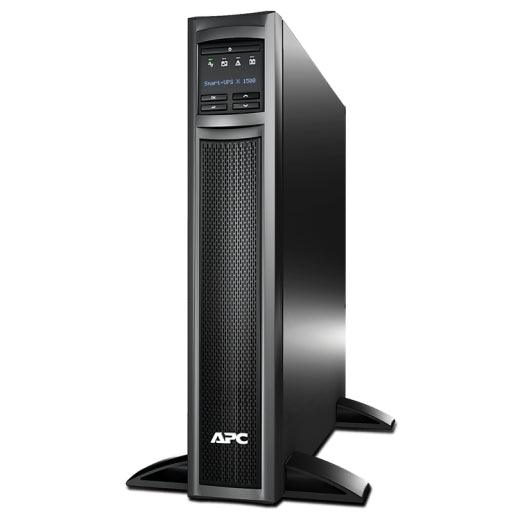

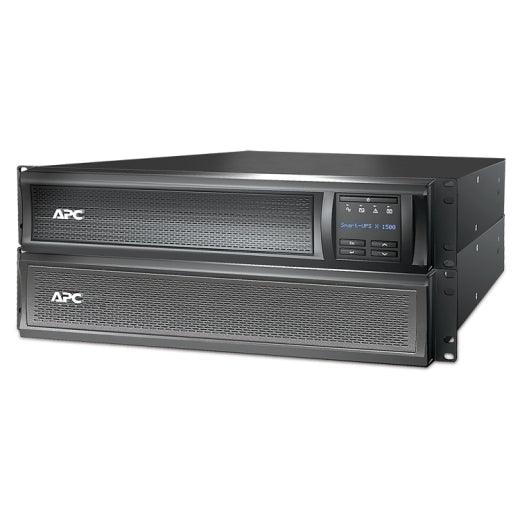

(NEW VENDOR) APC SMX1500RMI2U APC Smart-UPS X 1500VA Rack/Tower LCD 230V
Couldn't load pickup availability
(NEW VENDOR) APC SMX1500RMI2U APC Smart-UPS X 1500VA Rack/Tower LCD 230V
(NEW VENDOR) APC SMX1500RMI2U APC Smart-UPS X 1500VA Rack/Tower LCD 230V
HKD 7,950.00
(NEW VENDOR) APC SMX1500RMI2U APC Smart-UPS X 1500VA Rack/Tower LCD 230V
- 1440VA/1200W line interactive pure sine wave 2U rack/tower UPS (rail kit included)
- Add up to 5 external battery packs (SMX48RMBP2U)
- Graceful shutdown using serial or USB cables via PowerChute Business Edition
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
- Ideal for servers, storage, networking & commercial applications
Overview
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1500VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
Specification
| Presentation | Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. |
|---|---|
| Main Input Voltage | 230 V |
|---|---|
| Main Output Voltage | 230 V |
| rated power in W | 1200 W |
| Rated power in VA | 1500 VA |
| Input Connection Type | IEC 320 C14 |
| output connection type | 8 IEC 320 C13 2 IEC Jumpers |
| Number of rack unit | 2U |
| Cable length | 1.83 m |
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Provided equipment | CD with software Documentation CD Installation guide Rack mounting support rails Removable support feet Smart UPS signalling RS-232 cable USB cable |
| Number of power module filled slots | 0 |
|---|---|
| Number of power module free slots | 0 |
| product web sub-family | Extended run |
| Redundant | No |
| Colour | Black |
|---|---|
| Height | 8.9 cm |
| Width | 43.2 cm |
| Depth | 49 cm |
| Net weight | 24.82 kg |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| Two post mountable | 0 |
| USB compatible | Yes |
| Switching current capacity | 10 A |
|---|---|
| Input voltage limits | 151...302 V adjustable 160...286 V |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Harmonic distortion | Less than 5 % |
|---|---|
| Maximum configurable power in VA | 1500 VA |
| Maximum configurable power in W | 1200 W |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Product certifications | CE RCM VDE EAC |
|---|---|
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Acoustic level | 40 dBA |
|---|---|
| heat dissipation | 133 Btu/h |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for operation | 0…45 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0.00…15240.00 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| Extended runtime | 0 |
|---|---|
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Number of battery replacement quantity | 1 |
| Battery life | 3…5 year(s) |
| Battery power in VAH | 311 VAh runtime |
| Battery charger power | 103 W rated |
| Battery option | SMX48RMBP2U 1 933 VAh SMX48RMBP2U 2 1555 VAh SMX48RMBP2U 3 2177 VAh SMX48RMBP2U 4 2800 VAh SMX48RMBP2U 5 3421 VAh |
| control panel | Multifunction LCD status and control console |
|---|---|
| Emergency power off | Yes |
| Free slots | 1 |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge energy rate | 645 J |
|---|---|
| Noise suppression | Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 24.6 cm |
| Package 1 Width | 58.9 cm |
| Package 1 Length | 62 cm |
| Package 1 Weight | 30 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 133 cm |
| Package 2 Width | 100 cm |
| Package 2 Length | 120 cm |
| Package 2 Weight | 524 kg |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
|---|
