(NEW VENDOR) APC SRT10KXLI APC Smart-UPS SRT 10000VA Bundle with: UPS, Bypass Panel, Services included hardware install, 1 yr 24x7 maintenance
Couldn't load pickup availability
(NEW VENDOR) APC SRT10KXLI APC Smart-UPS SRT 10000VA Bundle with: UPS, Bypass Panel, Services included hardware install, 1 yr 24x7 maintenance
HKD 60,000.00
(NEW VENDOR) APC SRT10KXLI APC Smart-UPS SRT 10000VA Bundle with: UPS, Bypass Panel, Services included hardware install, 1 yr 24x7 maintenance
*Incoming Power Requirement: 80Amp Single Phase
*Site check is required
*Not include other electrical work cost

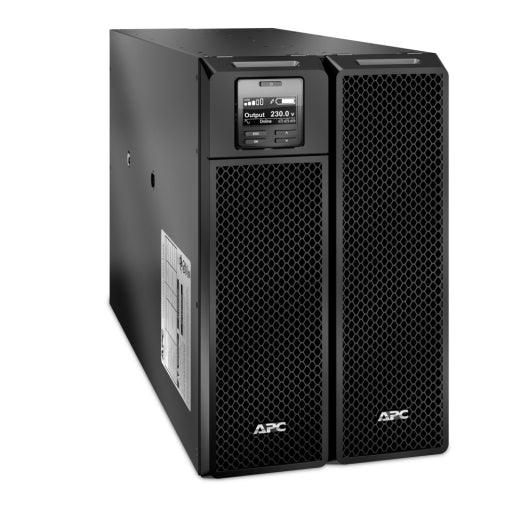

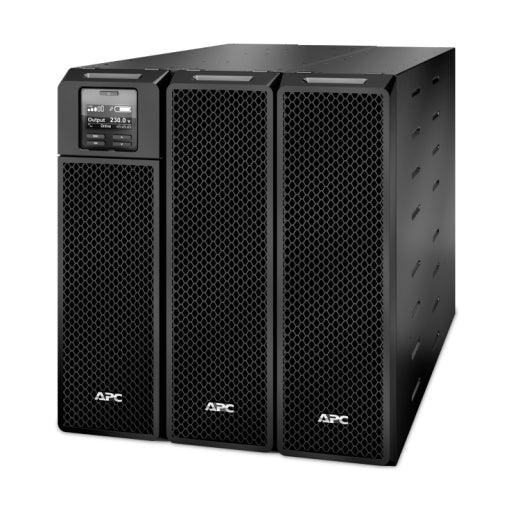

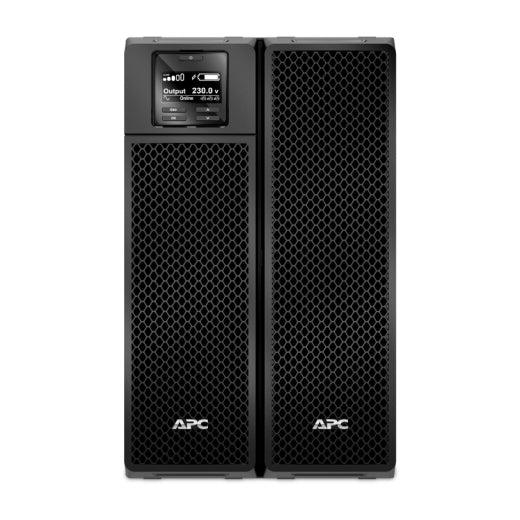

- 10kVA/10kW double-conversion on-line pure sine wave tower UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/Tower convertible (rail kit SRTRK2 or SRTRK3 sold separately)
- Delivers clean power with zero transfer time for critical or sensitive devices
- Add up to 10 external battery packs (SRT192BP2) for extended runtime
Overview

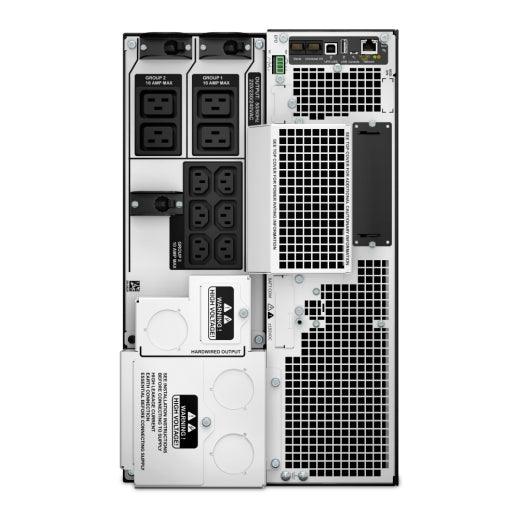

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E)/5-wire(3P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 3x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.
Specification
| Presentation | High density, double-conversion on-line power protection with scalable runtime. |
|---|---|
| Main Input Voltage | 230 V 400 V 3 phases |
|---|---|
| Other Input Voltage | 220 V 240 V 380 V 415 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V 240 V |
| rated power in W | 10000 W |
| Rated power in VA | 10000 VA |
| output connection type | 6 IEC 60320 C13 3 IEC Jumpers 4 IEC 60320 C19 |
| Output connector type | Hard wire 3-wire (H N + E) 1 |
| Battery type | Lead-acid battery |
| Provided equipment | CD with software Documentation CD Installation guide Temperature probe USB cable Warranty card Web/SNMP management card |
| product web sub-family | High density |
|---|---|
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Colour | Black |
|---|---|
| Height | 43.2 cm |
| Width | 26.3 cm |
| Depth | 71.5 cm |
| Net weight | 111.82 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted with kit |
| Two post mountable | 0 |
| USB compatible | Yes |
| Network frequency | 40...70 Hz auto-sensing |
|---|---|
| Number of input connectors | 1 hard wire 3-wire (1P + N + E) 1 hard wire 5-wire (3P + N + E) |
| Input voltage limits | 100...275 V adjustable (half load) 173...476 V adjustable (half load) |
| Maximum configurable power in W | 10000 W |
|---|---|
| Harmonic distortion | Less than 2 % |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Crest factor | 3 : 1 |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| bypass type | Internal bypass (automatic and manual) |
| Maximum configurable power in VA | 10000 VA |
| Product certifications | CE EAC IRAM RCM VDE |
|---|---|
| Marking | CE Mark |
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0.00…15240.00 m |
| Acoustic level | 55 dBA |
| heat dissipation | 1947 Btu/h |
| IP degree of protection | IP20 |
| Number of battery filled slots | 0 |
|---|---|
| Battery recharge time | 1.5 h |
| Number of battery replacement quantity | 2 |
| Battery voltage | +/- 192 V (split battery referenced to neutral) |
| Battery charger power | 876 W rated |
| Battery power in VAH | 1805 VAh runtime |
| Battery life | 3…5 year(s) |
| Battery option | SRT192BP2 1 3610 VAh SRT192BP2 2 5415 VAh SRT192BP2 3 7220 VAh SRT192BP2 4 9025 VAh SRT192BP2 5 10830 VAh SRT192BP2 6 12635 VAh SRT192BP2 8 16245 VAh SRT192BP2 10 19855 VAh |
| Extended runtime | 1 |
| Free slots | 1 |
|---|---|
| Alarm | Audible and visible alarms : prioritized by severity |
| Emergency power off | Yes |
| Surge energy rate | 480 J |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 46.1 cm |
| Package 1 Width | 60 cm |
| Package 1 Length | 100 cm |
| Package 1 Weight | 126.554 kg |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
|---|
