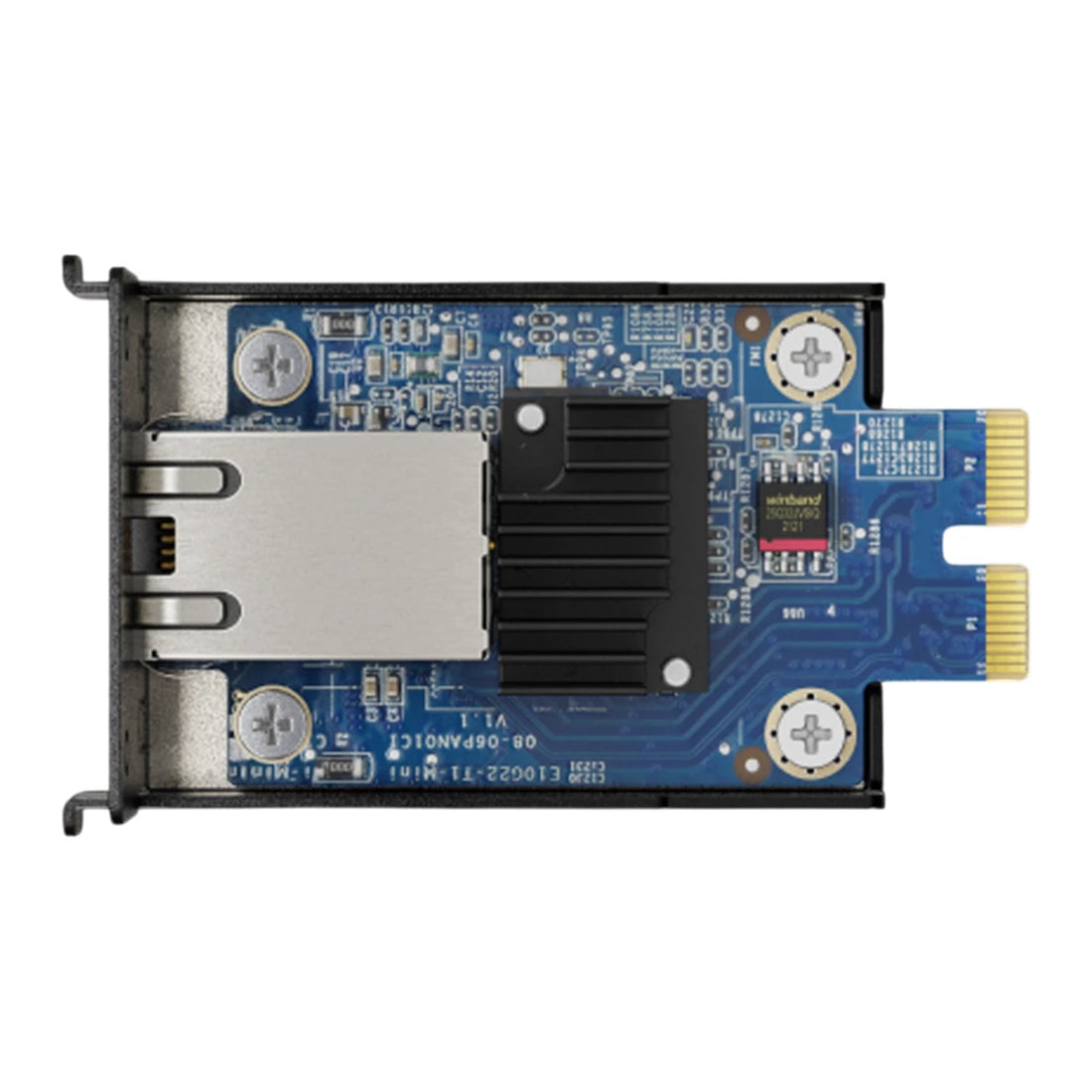

Synology E10G22-T1-MINI 10GbE RJ-45 network upgrade module for compact servers | NEW FACTORY SEALED

Synology E10G22-T1-MINI 10GbE RJ-45 network upgrade module for compact servers | NEW FACTORY SEALED

Part Number: E10G22-T1-MINI

Condition: NEW FACTORY SEALED

**SYNOLOGY E10G22-T1-MINI 10gbe Rj-45 Network Upgrade Module For Compact Servers**

**Hardware Specifications**

**Host Bus Interface** Pcie 3.0 X2

**Size (height X Width X Depth)** 26.37 Mm X 45.38 Mm X 75.7 Mm

**Operating Temperature** 0°c To 40°c (32°f To 104°f)

**Storage Temperature** -20°c To 60°c (-5°f To 140°f)

**Relative Humidity** 5% To 95% Rh

**Ieee Specification Compliance**

Ieee 802.3x Flow Control

Ieee 802.3u Fast Ethernet

Ieee 802.3ab Gigabit Ethernet

Ieee 802.3bz 2.5gbps / 5gbps Ethernet

Ieee 802.3an 10gbps Ethernet

**Data Transfer Rates** 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps

**Supported Features**

9 Kb Jumbo Frame

Tcp/udp/ip Checksum Offloading

Auto-negotiation Between 100mb/s, 1gb/s, 2.5gb/s, 5gb/s, And 10gb/s

Tcp Segmentation Offload (tso)

Large Send Offload (lso)

Receive Side Scaling (rss)

Generic Receive Offload (gro)

Generic Segmentation Offload (gso)

**Compatibility**

**Applied Models**

Dp Series:dp340

25 Series:ds1525+

23 Series:ds923+, Ds723+

22 Series:rs422+, Ds1522+

**Notes** Dsm Version Requirement: 7.1.1-42962 Update 4 Or Later Version
