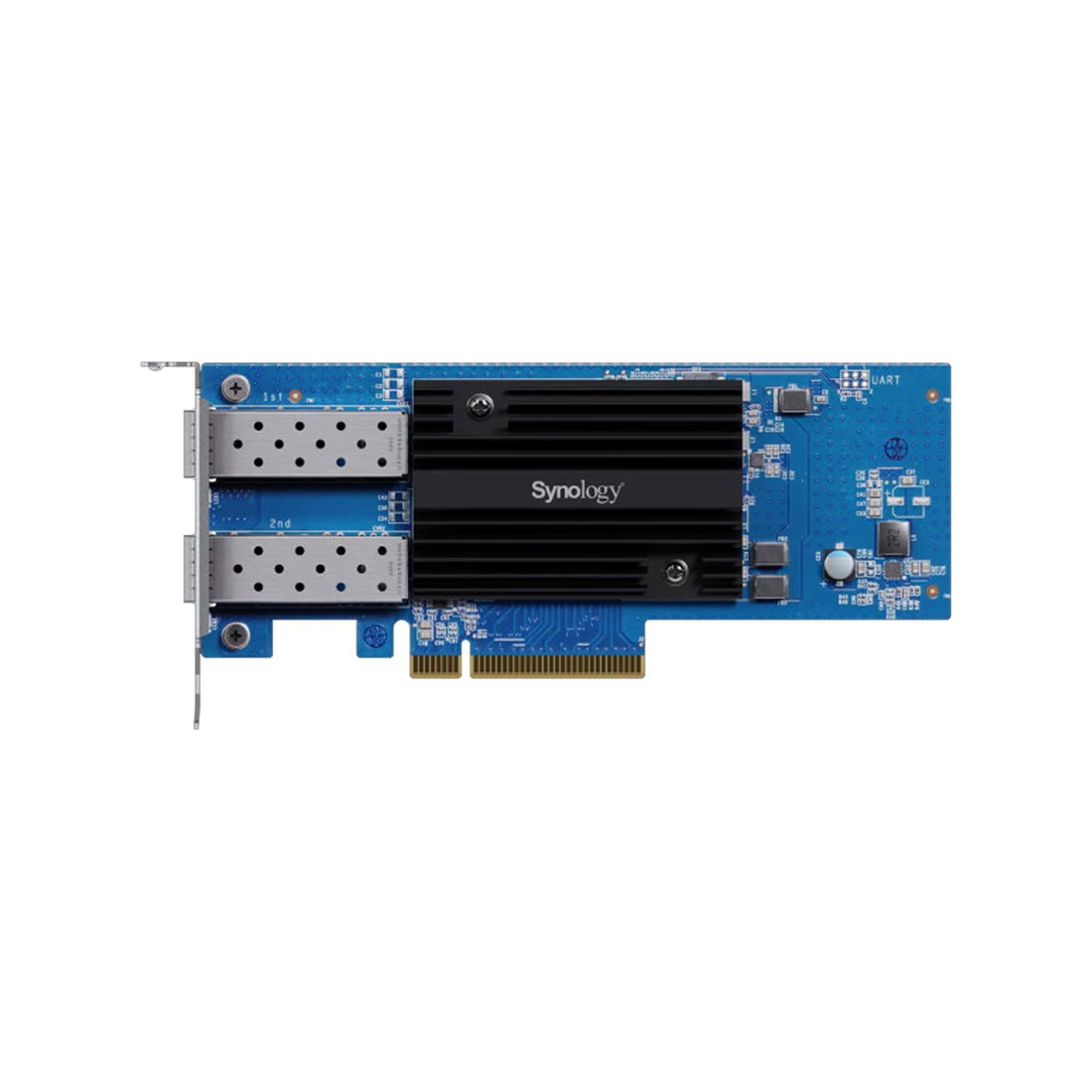

Synology E25G30-F2 Dual-port 25GbE SFP28 add-in card for Synology systems | NEW FACTORY SEALED

Synology E25G30-F2 Dual-port 25GbE SFP28 add-in card for Synology systems | NEW FACTORY SEALED

Part Number: E25G30-F2

Condition: NEW FACTORY SEALED

**SYNOLOGY E25G30-F2 Dual-port 25gbe Sfp28 Add-in Card For SYNOLOGY Systems**

**Hardware Specifications**

**Host Bus Interface** Pcie 3.0 X8

**Size (height X Width X Depth)** 69 Mm X 168 Mm X 17.3 Mm

**Operating Temperature** 0°c To 40°c (32°f To 104°f)

**Storage Temperature** -20°c To 60°c (-5°f To 140°f)

**Relative Humidity** 5% To 95% Rh

**Ieee Specification Compliance**

Ieee 802.3ad Link Aggregation

Ieee 802.3ae 10gbps Ethernet

Ieee 802.3by 25gbps Ethernet

**Data Transfer Rates** 25 Gbps/10 Gbps

**Supported Features**

Tcp Segmentation Offload (tso)

Receive Side Scaling (rss)

Generic Segmentation Offload (gso)

1.5 - 9 Kb Jumbo Frame

Tcp/udp Checksum Offload

Transmit Side Scaling (tss)

Sr-iov

Large Receive Offload (lro)

**Notes** As Mixed Link Speeds Are Not Supported, Both Network Ports Must Be Configured With The Same Link Speed.

**Compatibility**

**Applied Models**

Fs Series:fs6400, Fs3600, Fs3410, Fs3400, Fs2500

Hd Series:hd6500

Sa Series:sa6400, Sa3610, Sa3600, Sa3410, Sa3400d, Sa3400, Sa3200d

Uc Series:uc3400, Uc3200

Dp Series:dp7400

23 Series:rs2423rp+, Rs2423+, Ds1823xs+

22 Series:rs822rp+, Rs822+, Ds3622xs+, Ds2422+

21 Series:rs4021xs+, Rs3621xs+, Rs3621rpxs, Rs2821rp+, Rs2421rp+, Rs2421+, Rs1221rp+, Rs1221+, Ds1821+, Ds1621xs+, Ds1621+

19 Series:rs1619xs+

18 Series:rs3618xs

17 Series:ds3617xsii, Ds3617xs

**Notes** dsm Version Requirement: 7.1.1-42962 Update 5 Or Later Version

Dsm Version Requirement: 7.1.1-42962 Update 5 Or Later Version

For Models With An Amd Ryzen V1000 Cpu, Dsm Version 7.2.1-69057 Or Above Is Required.
