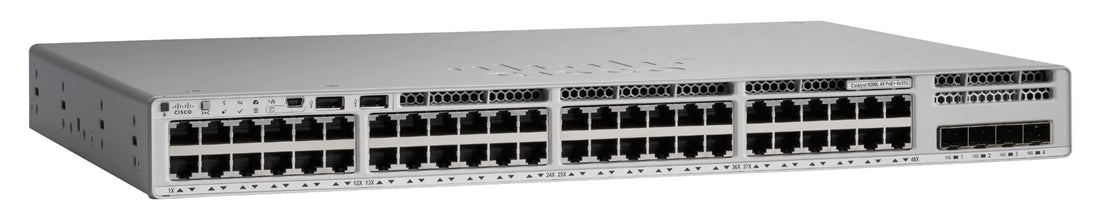

Cisco C9200-48PXG-A Catalyst 9200 Series Modular-Uplink Switch | USED

Cisco C9200-48PXG-A Catalyst 9200 Series Modular-Uplink Switch | USED

Part Number: C9200-48PXG-A

Condition: Used

**CISCO C9200-48PXG-A Catalyst 9200 - Network Advantage - Switch - 48 Ports - Smart - Rack-mountable :**

**Key Features :**

Device Type : Switch - 48 Ports - L3 - Smart - Stackable

Enclosure Type : Rack-mountable

Subtype : Gigabit Ethernet

Ports : 40 X 10/100/1000 (poe+) + 8 X 100/1000/2.5g/5g/10gbase-t

Power Over Ethernet (poe) : Poe+

Poe Budget : 740 W

Performance : Stacking Bandwidth: 160 Gbps ¦ Switching Bandwidth: 400 Gbps ¦ Switching Capacity With Stacking: 580 Gbps ¦ Forwarding Rate: 297.61 Mpps ¦ Forwarding Rate With Stacking: 431 Mpps

Capacity : Qos Scale Entries: 1000 ¦ Acl Scale Entries: 1600 ¦ Ipv4 Routing Table Entries: 4000 ¦ Ipv6 Routing Table Entries: 2000 ¦ Packet Buffer Size: 6 Mb ¦ Vlan Ids: 4096 ¦ Switched Virtual Interfaces (svis): 1000 ¦ Flexible Netflow Entries: 16000

Mac Address Table Size : 32000 Entries

Jumbo Frame Support : 9198 Bytes

Routing Protocol : Ospf, Rip, Is-is, Rip-1, Rip-2, Eigrp, Hsrp, Vrrp, Pim-sm, Eigrp For Ipv6, Ospfv3, Pim-ssm, Msdp, Policy-based Routing (pbr), Ripng, Mstp

Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Snmp 3, Snmp 2c, Cli, Netconf, Restconf

Encryption Algorithm : 128-bit Aes

Features : Arp Support, Spanning Tree Protocol (stp) Support, Quality Of Service (qos), Rapid Per-vlan Spanning Tree Plus (pvrst+), Shaped Round Robin (srr), Pxe Support, Remote Switch Port Analyzer (rspan), Energy Efficient Ethernet, Management Information Base (mib), Class Of Service (cos), Flexible Netflow (fnf), CISCO Stackwise-160 Technology, Diffserv Code Point (dscp) Support, Macsec Support, Control Plane Protection (copp), Switched Port Analyzer (span), Embedded Event Manager (eem), Protocol Independent Multicast (pim), First Hop Security (fhs), Pvlan Support, Committed Information Rate (cir)

Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.3at, Ieee 802.3bz

Ram : 4 Gb

Flash Memory : 4 Gb

Built-in Devices : Rfid Tag

**Expansion / Connectivity :**

Interfaces :

40 X 10/100/1000 Base-t Rj-45 Poe+ - 30 W

8 X 100/1000/2.5g/5g/10gbase-t Rj-45

1 X Management (lan) Rj-45

1 X Console Rj-45

1 X Network Stack Device

Expansion Slots :

1 (total) / 1 (free) X Expansion Slot

**Power :**

Power Device : Internal Power Supply - Hot-plug

Max Supported Qty : 2

Power Redundancy : Optional

Power Provided : 1000 Watt

Voltage Required : Ac 100-240 V (50 - 60 Hz)
