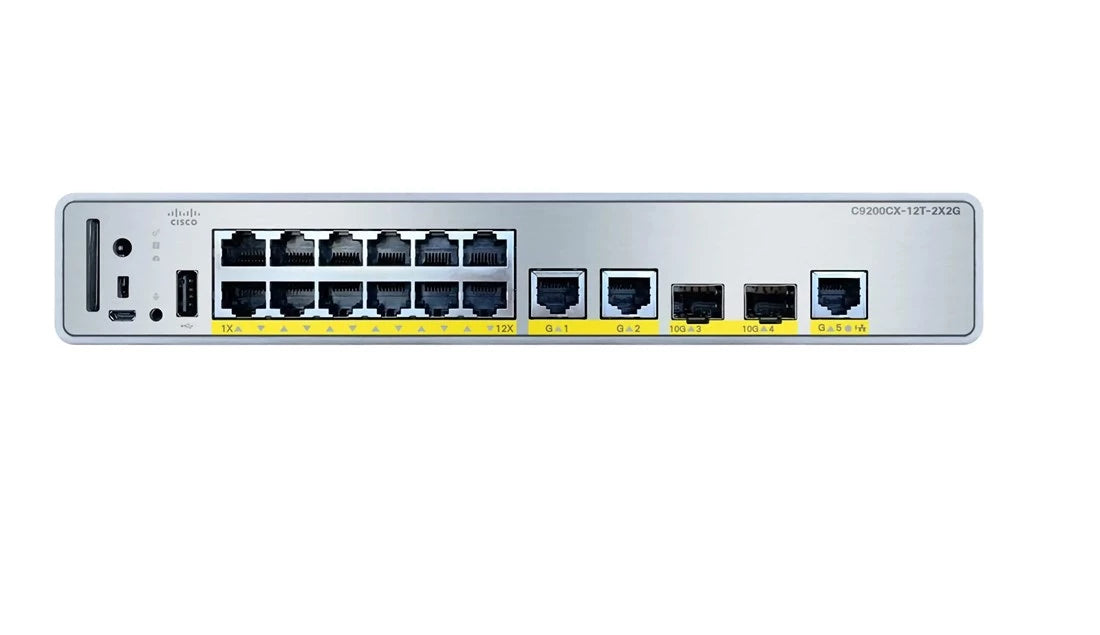

Cisco C9200CX-12T-2X2G-A Catalyst 9200CX 12-Port 1G, 2x10G and 3x1G Network Advance Switch | USED

Cisco C9200CX-12T-2X2G-A Catalyst 9200CX 12-Port 1G, 2x10G and 3x1G Network Advance Switch | USED

Part Number: C9200CX-12T-2X2G-A

Condition: Used

**CISCO C9200CX-12T-2X2G-A Catalyst 9200cx - Network Advantage - Switch - Compact - L3 - Managed - 12 X 1000base-t + 3 X 1000base-t + 2 X 1 Gigabit / 10 Gigabit Sfp+ (uplink) - Rack-mountable :**

**Key Features :**

Device Type : Switch - 12 Ports - L3 - Managed

Enclosure Type : Rack-mountable 1u

Subtype : Gigabit Ethernet

Ports : 12 X 1000base-t + 3 X 1000base-t + 2 X 1 Gigabit / 10 Gigabit Sfp+ (uplink)

Power Over Ethernet (poe) : Upoe+

Performance : Switching Capacity: 120 Gbps , Forwarding Rate: 95.23 Mpps , Packet Buffer Size: 6 Mb

Capacity : Virtual Networks: 16 , Ipv4 Routes: 14000 , Direct Ipv4 Routes: 10000 , Indirect Ipv4 Routes: 4000 , Ipv4 Routing Entries: 4000 , Ipv6 Routing Entries: 2000 , Multicast Scale: 1000 , Qos Scale Entries: 1000 , Acl Scale Entries: 1600 , Flexible Netflow Entries: 16000 , Vlan Ids: 4096 , Pvst Instances: 128 , Stp Virtual Ports For Pvst: 13000 , Stp Virtual Ports For Mst: 13000

Mac Address Table Size : 32000 Entries

Jumbo Frame Support : 9198 Bytes

Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Eigrp, Vrrp, Pim-sm, Eigrp For Ipv6, Ospfv3, Pim-ssm, Policy-based Routing (pbr), Ripng, Mstp

Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Snmp 3, Snmp 2c, Cli, Netconf, Restconf, Yang

Encryption Algorithm : 256-bit Aes

Features : Access Control List (acl) Support, Quality Of Service (qos), Rapid Per-vlan Spanning Tree Plus (pvrst+), Fanless, Shaped Round Robin (srr), Pxe Support, Remote Switch Port Analyzer (rspan), Energy Efficient Ethernet, Management Information Base (mib), Class Of Service (cos), Flexible Netflow (fnf), 802.1x Authentication, Diffserv Code Point (dscp) Support, Macsec Support, Control Plane Protection (copp), Zero-touch Provisioning (ztp), Switched Port Analyzer (span), Embedded Event Manager (eem), Protocol Independent Multicast (pim), First Hop Security (fhs), Pvlan Support, Committed Information Rate (cir), CISCO Unified Access Data Plane (uadp) 2.0, Trustworthy Systems

Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ae, Ieee 802.3at, Ieee 802.3bt

Ram : 4 Gb

Flash Memory : 8 Gb

Built-in Devices : Rfid Tag

Status Indicators : Power

**Expansion / Connectivity :**

Interfaces :

12 X 1000base-t Rj-45

2 X 1000base-t Rj-45

2 X 1/10gbase-x Sfp+ Uplink

1 X 1000base-t Rj-45 Upoe+ - 60 W

1 X Console (micro-usb)

1 X Usb 2.0

Expansion Slots :

1 (total) / 1 (free) X Sd Memory Card

**Power :**

Power Device : External Power Adapter (not Included)

Power Provided : 80 Watt

Voltage Required : Ac 100-240 V
