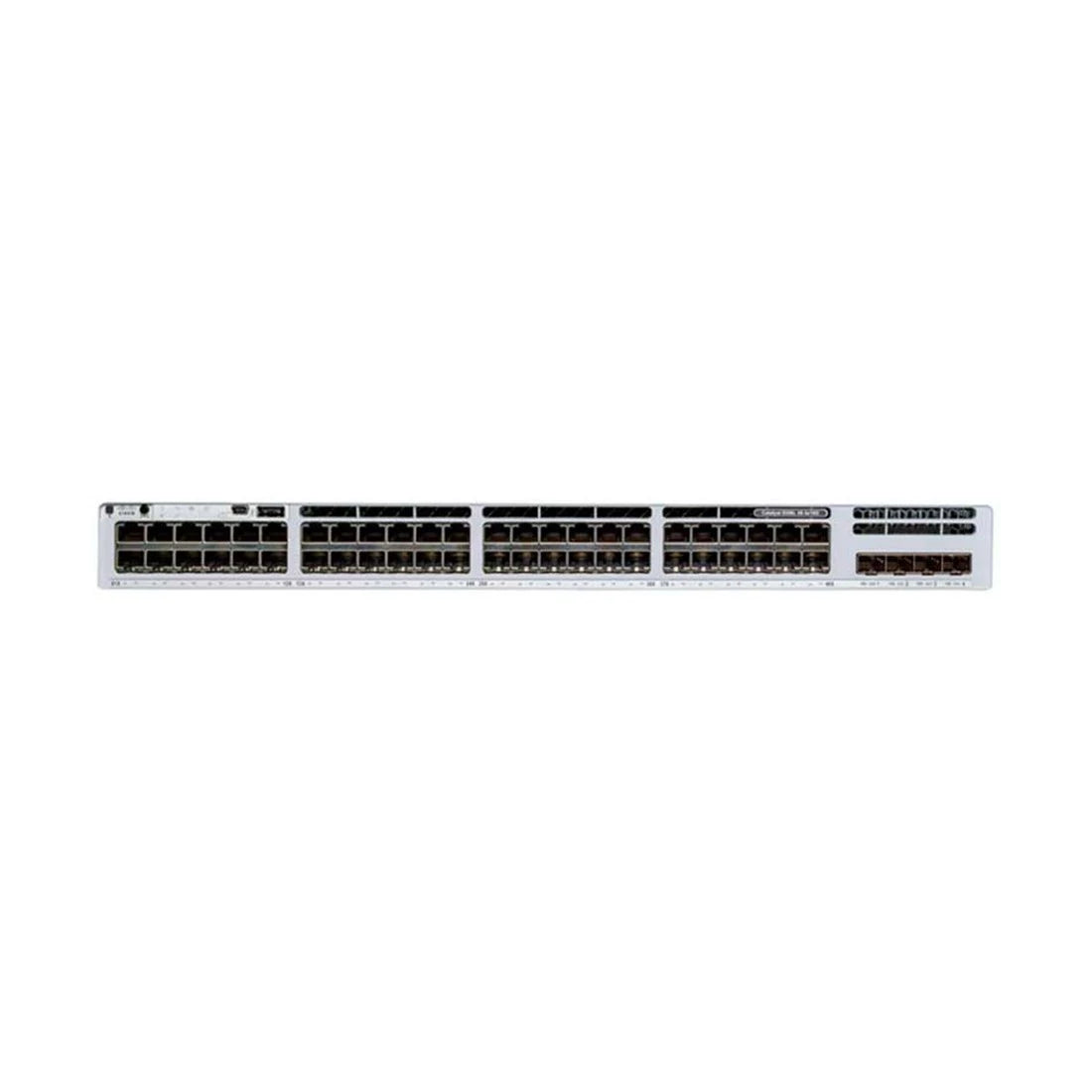

Cisco C9300LM-48UX-4Y-A Catalyst 9300L Mini Ethernet Switch | USED

Cisco C9300LM-48UX-4Y-A Catalyst 9300L Mini Ethernet Switch | USED

Part Number: C9300LM-48UX-4Y-A

Condition: Used

**CISCO C9300LM-48UX-4Y-A Catalyst 9300l Mini - Network Advantage - Switch - L3 - Managed - 40 X 10/100/1000 (upoe) + 8 X 100/1000/2.5g/5g/10g (upoe) + 4 X 25 Gigabit Sfp (uplink) - Rack-mountable - Upoe.**

**Key Features :**

Device Type : Switch - 48 Ports - L3 - Managed - Stackable

Enclosure Type : Rack-mountable

Subtype : Gigabit Ethernet

Ports : 40 X 10/100/1000 (upoe) + 8 X 100/1000/2.5g/5g/10g (upoe) + 4 X 25 Gigabit Sfp (uplink)

Power Over Ethernet (poe) : Upoe

Performance : Stacking Bandwidth: 320 Gbps ¦ Switching Capacity: 440 Gbps ¦ Switching Capacity With Stacking: 760 Gbps ¦ Forwarding Rate: 327.36 Mpps ¦ Forwarding Rate With Stacking: 565.44 Mpps

Capacity : Ipv4 Routes: 32000 ¦ Ipv6 Routes: 16000 ¦ Multicast Scale: 8000 ¦ Qos Scale Entries: 5120 ¦ Acl Scale Entries: 5120 ¦ Buffer Capacity (mb): 16 ¦ Fnf Entries: 64000 ¦ Vlan Ids: 4094 ¦ Switched Virtual Interfaces (svis): 1000 ¦ Routed Ports: 416 ¦ Ospf Routes: 1000

Mac Address Table Size : 32000 Entries

Jumbo Frame Support : 9198 Bytes

Max Units In A Stack : 8

Routing Protocol : Ospf, Rip-1, Rip-2, Eigrp, Vrrp, Pim-sm, Ospfv3, Pim-ssm, Policy-based Routing (pbr), Ripng, Mstp

Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Snmp 3, Snmp 2c, Cli, Netconf, Restconf, Grpc, Ipv4, Ipv6, Yang

Encryption Algorithm : 128-bit Aes, 256-bit Aes

Features : Acl Support, Qos, CISCO Stackwise Technology, Rapid Pvst+, Srr, Rspan, Netflow, Cos, Fnf, Dscp Support, Hot Swappable 3 Fans, Built-in Asic, Copp, Sdn, Blue Beacon Led, Ztp, Secure Boot, Eee, Span, Pim, Fhs, Pvlan Support, Cir, Macsec, CISCO Ip Sla, CISCO Trust Anchor Module, CISCO Uadp 2.0, CISCO Stackwise-320 Technology, Cdp, Preboot Execution Environment

Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1ae, Ieee 802.3an, Ieee 802.3at, Ieee 1588v2, Ieee 802.1ba, Ieee 802.3bz, Ieee 802.3bt, Wi-fi Certified 6

Ram : 8 Gb

Flash Memory : 16 Gb

Status Indicators : Status

**Expansion / Connectivity :**

Interfaces :

40 X 1000base-t Rj-45 Upoe - 60 W

8 X 100/1000/2.5g/5g/10gbase-t Rj-45 Upoe - 60 W

4 X 25gbase-x Sfp Uplink

Network Stack Device

1 X Management (lan) Rj-45

1 X Console

1 X Usb 2.0

**Power :**

power Device : Internal Power Supply - Hot-plug

installed Qty : 1

max Supported Qty : 2

power Redundancy : Optional

power Provided : 1000 Watt

voltage Required : Ac 100-240 V (50 - 60 Hz)
