Dell E06W002 Managed L3 Switch 48X10Gigabit SFP+ Ports | USED

Dell E06W002 Managed L3 Switch 48X10Gigabit SFP+ Ports | USED

Part Number: E06W002

Condition: Used

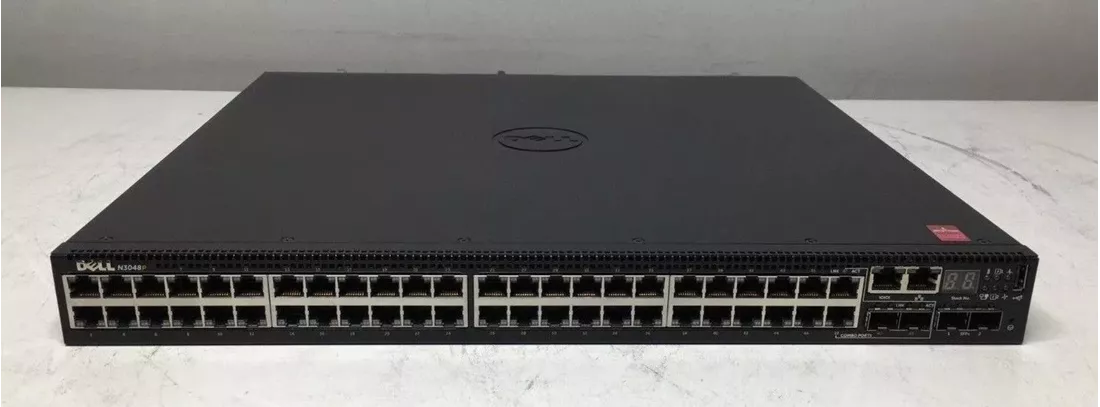

**DELL E06W002 Networking N3048p Switch 48 Ports L3 Managed Switch With Single Power Supply, No Rails, Os6 And Standard Airflow**

**Key Features :**

Device Type: Switch - 48 Ports - L3 - Managed - Stackable

Enclosure Type: Rack-mountable 1u

Subtype: Gigabit Ethernet

Ports: 48 X 10/100/1000 + 2 X 10 Gigabit Sfp+ + 2 X Combo 1000base-t

Power Over Ethernet (poe): Poe+

Performance: Switching Fabric Bandwidth: 260 Gbps, Forwarding Performance: 193 Mbps, Stacking Bandwidth: 84 Gbps

Capacity: Mac Addresses: 16384, Ipv4 Routes (static): 1024, Ipv6 Routes (static): 1024, Ipv4 Routes (dynamic): 8160, Ipv6 Routes (dynamic): 4096, Maximum Member Ports Per Lag: 8, Maximum Dynamic Ports Per Switch Stack: 144, Lag Groups: 128, Ospf Routes: 8160, Rip Routes: 512, Ecmp Next Hops Per Route: 4, Ecmp Groups: 64, Vlan Routing Interfaces: 128, Vlans Supported: 4094, Multicast Entries (ipv4): 512, Multicast Entries (ipv6): 256, Arp Entries: 6144, Ndp Entries: 400, Acl: 100, Maximum Rules Per Acl: 1023, Maximum Acl Rules System-wide: 4096, Maximum Acl Rules Per Interface (ipv4) Egress Rules: 1024, Maximum Acl Rules Per Interface (ipv4) Ingress Rules: 3072, Maximum Acl Rules Per Interface (ipv6) Egress Rules: 512, Maximum Acl Rules Per Interface (ipv6) Ingress Rules: 1021, Maximum Vlan Interfaces With Acls Applied: 24

Mac Address Table Size: 16k Entries

Routing Protocol: Ospf, Rip-1, Rip-2, Igmpv2, Igmp, Vrrp, Pim-sm, Pim-dm, Igmpv3, Ospfv3, Mldv2, Mld

Remote Management Protocol: Snmp 2, Snmp, Rmon, Http, Ssh

Features: Flow Control, Layer 3 Switching, Layer 2 Switching, Mdi/mdi-x Switch, Auto-negotiation, Load Balancing, Port Mirroring, Stackable, Weighted Round Robin (wrr) Queuing, Broadcast Storm Control, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Port Forwarding, Stp Root Guard, Lldp Support, Link Aggregation Control Protocol (lacp), Per-vlan Rapid Spanning Tree (pvrst), Energy Efficient Ethernet, Dynamic Vlan Support (gvrp), Dual Firmware Images, Network Access Control (nac), Tagged Vlan, Generic Vlan Registration Protocol (gvrp), Redundant Fans, Protocol-based Vlans Support

Compliant Standards: Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ieee 802.1ag, Ieee 802.1ab (lldp), Ieee 802.3az

Power: Single Power Supply Installed
