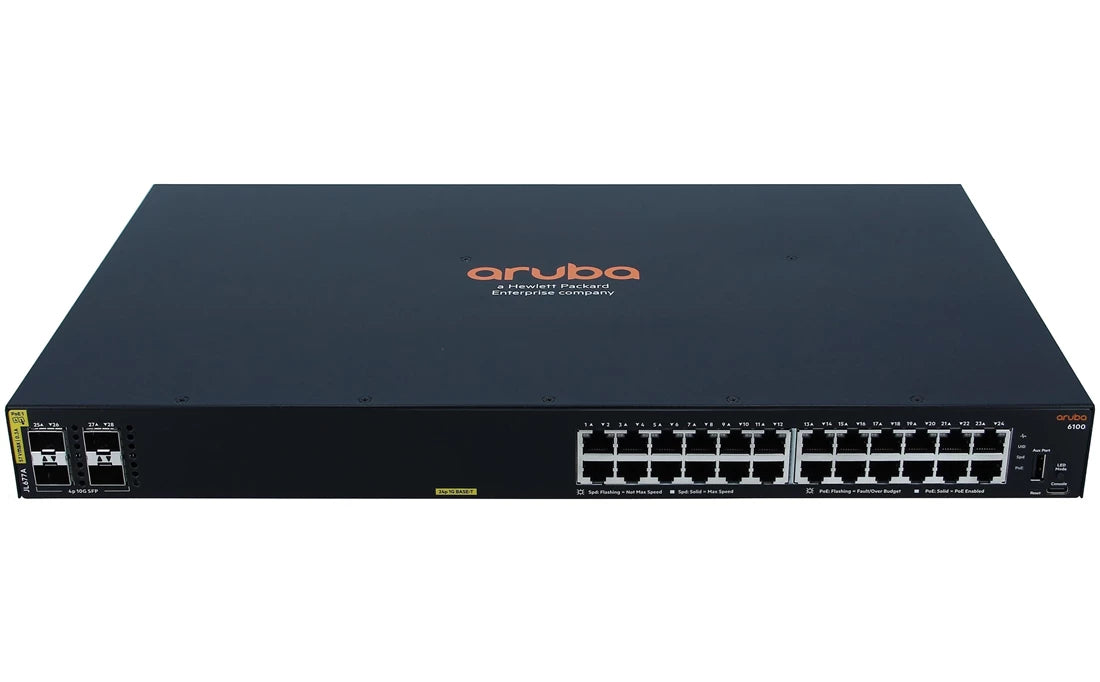

HPE JL677-61001 Aruba 6100 24G Cl4 PoE 4SFP+ 370W Switch | USED

HPE JL677-61001 Aruba 6100 24G Cl4 PoE 4SFP+ 370W Switch | USED

Part Number: JL677-61001

Condition: Used

**HPE JL677-61001 Aruba 6100 24g Class4 Poe 4sfp+ 370w Switch - Switch -24 Ports - Managed - Rack-mountable**

**Key Features :**

Device Type : Switch - 28 Ports - Managed - Stackable

Enclosure Type : Side To Side Airflow Rack-mountable 1u

Subtype : 10 Gigabit Ethernet

Ports : 24 X 10/100/1000 + 4 X 1 Gigabit / 10 Gigabit Sfp+

Power Over Ethernet (poe) : Poe+

Poe Budget : 370 W

Performance : Switching Capacity: 128 Gbps ¦ Throughput: 95.2 Mpps ¦ Latency (1 Gbps): 1.5 ¥s ¦ Latency (10 Gbps): 1.8 ¥s

Capacity : Switched Virtual Interfaces (svis): 16 ¦ Arp Entries: 1024 ¦ Ipv4 Routes (unicast): 512 ¦ Ipv6 Routes (unicast): 512 ¦ Igmp Groups: 512 ¦ Mld Groups: 512 ¦ Ipv4 Acl Entries (ingress): 256 ¦ Ipv6 Acl Entries (ingress): 128 ¦ Mac Acl Entries (ingress): 256

Mac Address Table Size : 8192 Entries

Routing Protocol : Igmpv2, Igmpv3

Encryption Algorithm : Ssl

Authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)

Features : Flow Control, Bootp Support, Arp Support, Vlan Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Multiple Spanning Tree Protocol (mstp) Support, Trivial File Transfer Protocol (tftp) Support, Mld Snooping, Lacp Support, Lldp Support, Port Based Access Control, Dhcp Client, Energy Efficient Ethernet, Management Information Base (mib), Network Access Control (nac), Neighbor Discovery Protocol (ndp), Snmp Support, Internet Control Message Protocol (icmp), Entitymib, Dns Client, Lldp-med, User Datagram Protocol (udp), Rapid Reconfiguration Of Spanning Tree (rstp), Ipv6 Addressing

Compliant Standards : Ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1s, Ieee 802.3at, Ieee 802.3az

Processor : 1 X Arm A9: 1.016 Ghz

Ram : 4 Gb Ddr3 Sdram

Flash Memory : 16 Gb

**Expansion / Connectivity :**

Interfaces :

24 X 10/100/1000 Base-t Rj-45

4 X 1/10gbit Lan Sfp+

1 X Usb-c Console

1 X Usb Type A

**Power :**

Power Device : Internal Power Supply

Power Provided : 500 Watt 2.3 A

Voltage Required : Ac 100-127/200-240 V (50/60 Hz)

Power Consumption Operational : 22.9 Watt
