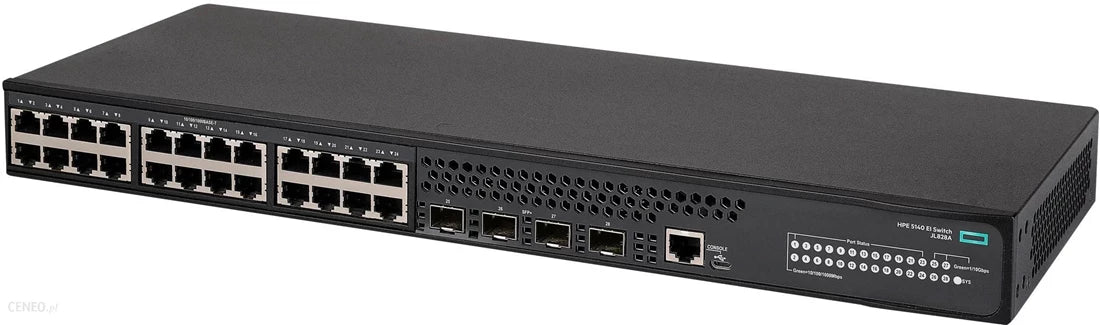

HPE JL828-61001 FlexNetwork 5140 24G 4SFP+ EI Switch | USED

HPE JL828-61001 FlexNetwork 5140 24G 4SFP+ EI Switch | USED

Part Number: JL828-61001

Condition: Used

**HPE JL828-61001 Flexnetwork 5140 24g 4sfp+ Ei - Switch - L3 - Smart - 24 X 10/100/1000 + 4 X 10 Gigabit Ethernet / 1 Gigabit Ethernet Sfp+ - Rack-mountable :**

**Key Features :**

Device Type : Switch - 28 Ports - L3 - Smart

Enclosure Type : Rack-mountable 1u

Subtype : Gigabit Ethernet

Ports : 24 X 10/100/1000 + 4 X 10 Gigabit Ethernet / 1 Gigabit Ethernet Sfp+

Performance : Latency (1000 Mbps): 5 Μs ¦ Latency (10 Gbps): 3 Μs ¦ Throughput: 96 Mpps ¦ Routing/switching Capacity: 128 Gbps

Capacity : Ipv4 Routing Table Entries: 512 ¦ Ipv6 Routing Table Entries: 256 ¦ Vlan Ids: 4094

Mac Address Table Size : 16384 Entries

Jumbo Frame Support : 9216 Bytes

Routing Protocol : Ospf, Rip-1, Rip-2, Igmp, Ospfv2, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Cidr

Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Https, Tftp, Cli, Ntp, Icmp, Radius

Encryption Algorithm : Ssl

Authentication Method : Radius, Tacacs+, Secure Shell V.2 (ssh2), Hwtacacs

Features : Flow Control, Bootp Support, Arp Support, Load Balancing, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Diffserv Support, High Availability, Half Duplex Mode, Full Duplex Mode, Sflow, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Committed Access Rate (car), Dhcp Server, Mld Snooping, Device Link Detection Protocol (dldp) Support, Stp Root Guard, Dhcp Relay, Link Aggregation Control Protocol (lacp), Port Security, Energy Efficient Ethernet, Dynamic Arp Protection, Dhcp Protection, Multiple Vlan Registration Protocol (mvrp), Strict Priority Queuing (spq), Port Isolation, Generic Attribute Registration Protocol (garp), Openflow Support, Ip Source Guard, Icmp Router Discovery Protocol (irdp), Link Aggregation, Vlan Double Tagging (q-in-q), Lldp-med, Smart Link, Guest Vlan, Ethernet Oam, Proxy Arp, Weighted Round Robin (wrr), Intelligent Resilient Fabric Technology (irf), Bpdu Protection, Udp Support, Multiple Registration Protocol (mrp)

Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3i, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1ad, Ieee 802.3ah, Ansi/tia-1057, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.3az, Ieee 802.1ax, Ieee 802.1r

Ram : 512 Mb Sdram

Flash Memory : 256 Mb

Status Indicators : Port Status, System

**Expansion / Connectivity :**

Interfaces :

24 X 1000base-t Rj-45

4 X Gigabit / 10gbit Lan Sfp+

1 X Console Rj-45 Management

1 X Micro-usb 5 Pin Usb Header Management

**Power :**

Power Device : Internal Power Supply

Power Provided : 24 Watt

Voltage Required : Ac 100-240 V (50/60 Hz)
