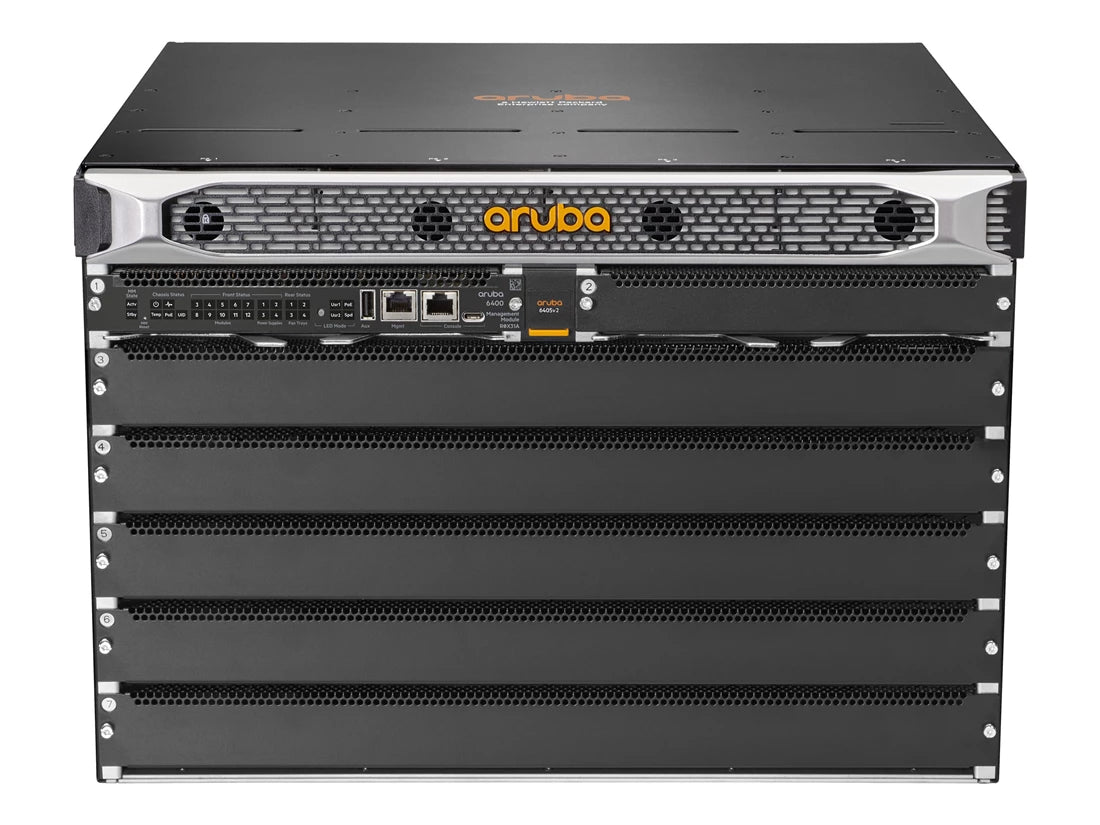

HPE R0X24A\#ABA Aruba 6405 Switch Chassis | USED

HPE R0X24A\#ABA Aruba 6405 Switch Chassis | USED

Part Number: R0X24A

Condition: Used

**HPE R0X24A#ABA Aruba Cx 6405 V2 - Switch - L3 - Managed - Front To Back Airflow - Rack-mountable ( Modules & Power Supplies Not Included, Order Separately).**

**Key Features :**

Device Type : Switch - L3 - Managed

enclosure Type : Front To Back Airflow Rack-mountable 7u

subtype : 10 Gigabit Ethernet

performance : Switching Capacity: 14 Tbps , Throughput: 5.7 Bpps

capacity : Switched Virtual Interfaces (svis): 2000 , Ipv4 Host Table Capacity: 32000 , Ipv6 Host Table Capacity: 32000 , Ipv4 Routes (unicast): 64000 , Ipv6 Routes (unicast): 64000 , Ipv4 Routes (multicast): 8000 , Ipv6 Routes (multicast): 8000 , Igmp Groups: 8000 , Mld Groups: 4000 , Ipv4 Acl Entries (ingress): 5000 , Ipv6 Acl Entries (ingress): 1250 , Mac Acl Entries (ingress): 5000 , Ipv4 Acl Entries (egress): 2000 , Ipv6 Acl Entries (egress): 500 , Mac Acl Entries (egress): 2000

mac Address Table Size : 32768 Entries

jumbo Frame Support : 9198 Bytes

routing Protocol : Egp, Bgp-4, Igmpv2, Igmp, Vrrp, Ospfv2, Igmpv3, Ospfv3, Msdp, Static Ipv4 Routing, Static Ipv6 Routing, Ecmp, Policy-based Routing (pbr), Mldv2, Mld, Bidirectional Forwarding Detection (bfd)

remote Management Protocol : Rmon, Telnet, Snmp 3, Snmp 2c, Https, Tftp, Ssh, Ssh-2, Cli, Xrmon, Sftp

authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)

features : Dhcp Support, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Syslog Support, High Availability, Firmware Upgradable, Sflow, Pvst, Mstp Support, Acl Support, Qos, Jumbo Frames Support, Mld Snooping, Udld, Rapid Pvst+, Dwrr, Lldp Support, Mib, Dhcp Protection, Dual Firmware Images, Mvrp, Packet Storm Protection, Cos, Sp, Broadcast Storm Protection, Tos, Bpdu, Vxlan, Multicast Storm Protection, Ntp, Ra Guard, Pim, Vlan Tagging, Rstp, Ipv4 And Ipv6 Dual Stack, Ip Multicast, Bsr Mechanism, Vsx, Dynamic Ipv6 Lockdown, Nd Snooping, Unicast Storm Protection, Microsoft Nlb

compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3af, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1t, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.1ak, Ieee 802.3at, Ieee 802.1ax, Ieee 802.3bt

processor : 1: 1.8 Ghz

ram : 16 Gb Ddr4 Sdram

flash Memory : 32 Gb

status Indicators : Power, Active, Standby, Status, Fan

**Expansion / Connectivity :**

Interfaces :

1 X Usb-c Console

1 X Console Rj-45

1 X Usb Type A

Installed Modules Qty (max) : 0 (installed) / 7 (max)

**Power :**

<
Power Device: Internal Power Supply ( Not Installed)

Installed Qty: 0 (installed) / 4 (max)

Power Redundancy : Optional

Voltage Required: Ac 120/230 V (50/60 Hz)

80 Plus Certification: 80 Plus Platinum
