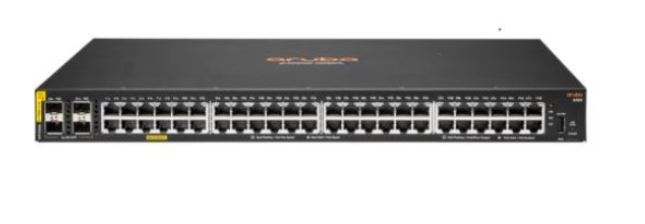

HPE R9Y04-61021 Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W Switch | USED

HPE R9Y04-61021 Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W Switch | USED

Part Number: R9Y04-61021

Condition: Used

**HPE R9Y04-61021 Aruba Networking Cx 6100 48g Class4 Poe 4sfp+ 740w Switch - Switch - 48 Ports - Managed - Rack-mountable.**

**Key Feature:**

Device Type: Switch - 48 Ports - L3 - Managed

Enclosure Type: Side To Side Airflow Rack-mountable 1u

Subtype: Gigabit Ethernet

Ports: 48 X 10/100/1000 (poe+) + 4 X 1 Gigabit / 10 Gigabit Sfp+ (uplink)

Power Over Ethernet (poe): Poe+

Poe Budget: 740 W

Mac Address Table Size: 8192 Entries

Jumbo Frame Support: 9220 Bytes

Routing Protocol: Igmpv2, Igmp, Igmpv3, Mldv2, Mld

Remote Management Protocol: Snmp 2, Snmp, Rmon, Snmp 3, Cli, Mib

Encryption Algorithm: Ssl

Authentication Method: Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)

Features: Layer 2 Switching, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Uni-directional Link Detection (udld), Class Of Service (cos), Type Of Service (tos), Poe Class 4, Rapid Pvst+ (rpvst+), Link Layer Discovery Protocol, Unsupported Transceiver Mode (utm), Address Resolution Protocol

Compliant Standards: Ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1s, Ieee 802.3at, Ieee 802.3az

Processor: 1 X Arm Cortextm A9: 1.016 Ghz

Ram: 4 Gb Ddr3 Sdram

Flash Memory: 16 Gb

**Expansion / Connectivity:**

Interfaces:

48 X 10/100/1000 Base-t (poe+) Rj-45 Poe Class 4

4 X Gigabit / 10gbit Lan Sfp+ Uplink

1 X Usb-c Console

1 X Usb Type A Host

**Power:**

Power Device: Internal Power Supply

Power Provided: 950 Watt

Voltage Required: Ac 100-127/200-240 V (50/60 Hz)

Power Consumption Operational: 49.7 Watt

Power Consumption Stand By: 37.5 Watt
