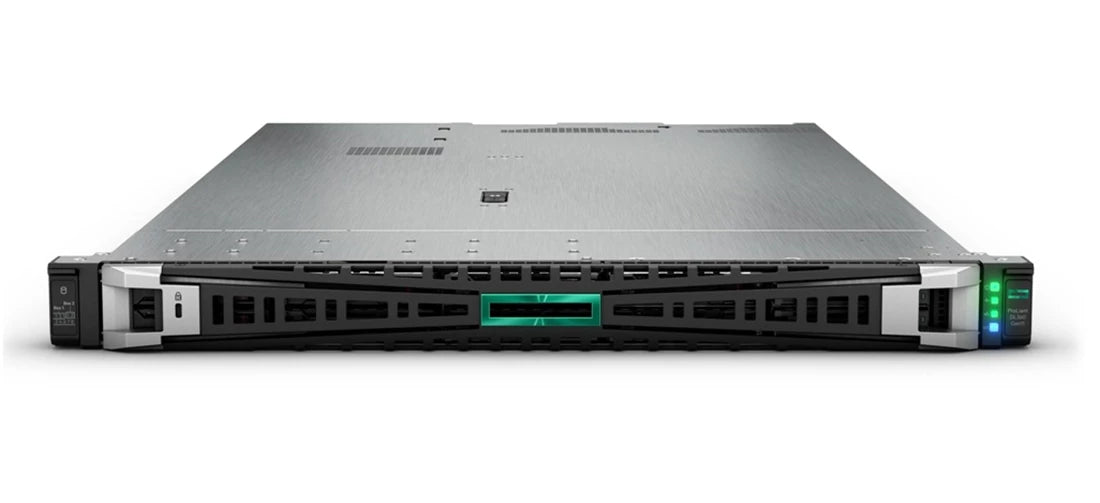

HPE P83286-005 DL360 Gen11 4510 2.4GHz 12c 1P 2x32GB-R 8SFF NS204i-u MR408i-o 2x800W PS NA Server | USED

HPE P83286-005 DL360 Gen11 4510 2.4GHz 12c 1P 2x32GB-R 8SFF NS204i-u MR408i-o 2x800W PS NA Server | USED

Part Number: P83286-005

Condition: Used

**HPE P83286-005 Proliant Dl360 Gen11 Smart Choice Model - 5th Gen 1x Intel Xeon 12-core Silver 4510 / 2.4 Ghz, 64(2x32)gb Ddr5 Sdram, Broadcom Bcm5719 Eth 1gb 4-port Base-t Ocp3 Adapter, HPE Ns204i-u Gen11 Nvme Hot Plug Boot Optimized Storage Device HPE Mr408i-o Gen11 X8 Lanes 4gb Cache Ocp Spdm Storage Controller, 8sff, No Ssd, 2x HPE 800w Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit - 2-way - 1u Rack Server.**

**General Information :**

Manufacturer : Hewlett Packard Enterprise

Manufacturer Website Address : WWW.HPE.COM

Manufacturer Part Number : P83286-005

Product Form Factor : Rack-mountable - 1u

Height ( Rack Units) : 1u

Server Scalability : 2-way

Hot-swap Bays Qty : 8

Product Name : HPE Proliant Dl360 Gen11 4510 2.4ghz 12c 1p 2x32gb-r 8sff Ns204i-u Mr408i-o 2x800w Ps Na Server ( Smart Choice Model)

**Processor / Chipset :**

Cpu : Intel Xeon Silver 4510 Processor

Base Clock : 2.4 Ghz

Max Turbo Speed : Up To 4.1 Ghz

Number Of Cores : 12-core

Cpu Qty : 1

Max Cpu Qty : 2

Cpu Upgradability : Upgradable

Tdp : 150w

Processor Main Features : Intel Turbo Boost Technology, Hyper-threading Technology

Cpu Socket : Lga4677 Socket-e

Chipset Type : Intel C741

System Memory Specification : Ddr5 4400 Mt/s (1 Dpc &2dpc)

Cache Memory :

Installed Size : L3 Cache - 30 Mb

Cache Per Processor : 30 Mb

**Ram :**

Type : HPE Ddr5 Smart Memory, Registered ( Rdimm)

Installed Size : 64 Gb / 8 Tb (max)

Technology : Ddr5 Sdram - Advanced Ecc

Effective Memory Speed : 4400 Mhz

Rated Memory Speed : 5600 Mhz

Form Factor : Dimm 288-pin

Slots : 32 (total) / 30 (empty)

Features : Registered, Dual Rank, 8-channel Memory Architecture, HPE Smartmemory, Slots 17 - 32 Are Available In Two-processor Configuration Only

Configuration Features : 2 X 32 Gb

**Internal Storage Devices :**

Hdd / Ssd : None

Optical Drive : No Optical Drive

**Storage Controller :**

Storage Controller Name : HPE Ns204i-u Gen11 Nvme Hot Plug Boot Optimized Storage Device

Raid Levels : Dedicated Hardware Raid 1

Form Factor : Pcie Half-height, Half-length (hhhl) Card

Usable Capacity : 480gb

Compliance : Rohs, Lot 9

Pcie Support : Gen3

2nd Storage Controller :

Type : 1 X Raid - Ocp

Storage Controller Name : HPE Mr408i-o Gen11 X8 Lanes 4gb Cache Ocp Spdm Storage Controller

Controller Interface Type : Serial Ata-600 / Sas 3.0 / Pci Express (nvme)

Channel Qty : 8

Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60

Buffer Size : 4 Gb

**Graphics Controller :**

Video Memory : 16 Mb

Video Interfaces : Vga

**Network & Communication:**

Name : Broadcom Bcm5719 Ethernet 1gb 4-port Base-t Ocp3 Adapter

Interface (bus) Type : Open Compute Project Mezzanine (ocp) 3.0

Ethernet Ports : 4 X Gigabit Ethernet

Ethernet Controller : Broadcom Bcm5719

Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp

Remote Management Controller : Integrated Lights-out 6

Features : Wake On Lan (wol), Pxe Support

**Expansion / Connectivity :**

Bays :

1 (total) / 1 (free) X External Universal Media Bay

8 (total) / 8 (free) X Hot-swap 2.5 Sff

Slots :

2 (total) / 2 (free) X Flexiblelom

1 (total) / 1 (free) X Pcie 5.0 X16 - Full-length, Full-height

1 (total) / 1 (free) X Pcie 5.0 X16 - Full-length, Full-height (x8 Mode)

1 (total) / 1 (free) X Pcie 5.0 X16 - Half-length, Full-height (x8 Mode)

Interfaces :

1 X Usb 3.0 (1 In Front) (HPE Ilo Service Port)

4 X Usb 3.0 (1 Front, 2 Rear, 1 Internal)

1 X HPE Ilo - Rj-45 (1 Rear)

1 X Vga (1 Rear)

4 X Lan (gigabit Ethernet) - Rj-45

**Miscellaneous :**

Included Accessories : 7x High Performance Fans, One High Performance Heatsink , HPE Proliant Dl3xx Gen11 Easy Install Rail 3 Kit

Compliant Standards : Aes, Fips 140-2, Ipv6 Ready, Pci Dss, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.4

Pricing Type : Bto

**Power :**

Device Type : Power Supply - Hot-plug

Power Redundancy : Yes

Power Redundancy Scheme : 1+1

Installed Qty : 2

Max Supported Qty : 2

Voltage Required : Ac 100-120/200-240 V (50/60 Hz)

Power Provided : 800 Watt

80 Plus Certification : 80 Plus Platinum

**Operating System / Software :**

Os Provided : No Operating System

Os Certified : Vmware Vsphere 6.0 (esxi), Suse Linux Enterprise Server 11 Sp4

Software : HPE Server Uefi

**Sustainability Information :**

Energy Star Certified : Yes

**Environmental Parameters :**

Min Operating Temperature : 50 °f

Max Operating Temperature : 95 °f

Humidity Range Operating : 8 - 90% Rh (non-condensing)

**Dimensions & Weight :**

Width : 17.1 In

Depth : 29.6 In

Height : 1.7 In

Weight : 32.1 Lbs
