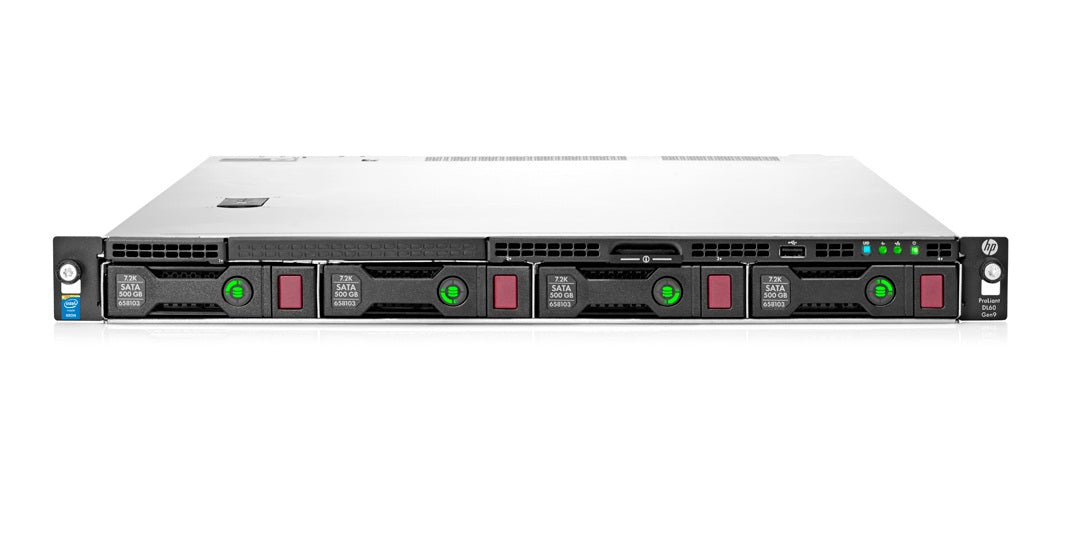

HPE 777403-B21 Proliant DL60 Gen9 4LFF CTO Server | USED

HPE 777403-B21 Proliant DL60 Gen9 4LFF CTO Server | USED

Part Number: 777403-B21

Condition: Used

**General Information :**

Manufacturer : Hewlett Packard Enterprise

Manufacturer Part Number : 777403-B21

Manufacturer Website Address : WWW.HPE.COM

Product Name: Proliant Dl60 Gen9 - 1u Rack Server ( Cto Model)

**Processor & Chipset :**

Cpu : No Cpu

Max Supported Qty : 2

Processor Type : Intel Xeon E5-v3

64-bit Computing : Yes

Compatible Processor Socket : Fclga2011-3

Chipset Type : Intel C610 Series

Cache Memory :

Cache Memory Type : Smart Cache

**Memory :**

Installed Size : 0 Gb / 256 Gb (max)

Technology : Ddr4 Sdram - Advanced Ecc

Form Factor : Dimm 288-pin

Slots : 8 (total) / 8 (empty)

Features : Registered, Load-reduced Dimm (lrdimm)

Ram Supported : 256 Gb Registered - Advanced Ecc 256 Gb Load-reduced - Advanced Ecc

**Storage:**

Hard Drive : None

Optical Drive : None

**Storage Controllers:**

Storage Controller Name : Smart Array B140i

Buffer Size : None

Disk Drive : Up To 6gb/s Sata (serial Ata)

Connectors : 10 Internal Sata Connectors

Server Interface : X4 Pcie 2.0

Sata Speed : 6gb/s Sata Links

Logical Drives Supported : Up To 8 Logical Volumes (6 Physical Drives)

Host Memory Addressing : 64-bit, Supporting Greater Than 4gb Server Memory Space

Raid Support : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50

Raid Support : Raid 0, Raid 1, Raid 5, Raid 10, Raid 50

**Graphics Controllers :**

Type : Integrated

Graphics Processor : Matrox G200eh2

Video Interfaces : Vga

**Network & Communication:**

Interface (bus) Type : Pci Express 2.0 X2

Ethernet Ports : 2 X Gigabit Ethernet

Ethernet Controller : Hp Nc361i

Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management Controller : Integrated Lights-out 4

Features : Wake On Lan (wol), Pxe Support

Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab, Ieee 802.1as, Ieee 802.3az

**Expansion/ Connectivity :**

Expansion Bays Total (free) :

4 (total) / 4 (free) X Hot-swap 3.5 Lff

Expansion Slots Total (free) :

2 (total) / 2 (free) X Cpu

8 (total) / 8 (free) X Dimm 288-pin

1 (total) / 1 (free) X Pcie 3.0 X16 - Low-profile

1 (total) / 1 (free) X Pcie 3.0 X8 - Low-profile

1 (total) / 1 (free) X Pcie 3.0 X8 - Half-length, Full-height

1 (total) / 1 (free) X Microsd Card (internal)

Interfaces & Ports :

2 X Lan (gigabit Ethernet)

1 X Vga

1 X Usb 2.0 ( 1 In Front )

3 X Usb 3.0 ( 2 Rear, 1 Internal )

**Miscellaneous :**

Features :

Administrator Password

Power-on Password

Uefi Bios

Compliant Standards :

Acpi 2.0b, Fcc Class A Certified, En 61000-3-2, En55022, Ices-003, En 61000-3-3, En55024, Cispr 22, Fcc Cfr47 Part 15, Iec 60950-1, En 60950-1, Weee, Gb 9254, Ashrae, Cns 13438

Pricing Type :

Cto

**Dimensions & Weight :**

Depth : 23.9 Inch

Width : 17.1 Inch

Height : 1.7 Inch

Weight : 19.8 Lbs

**Availability : In Stock**
