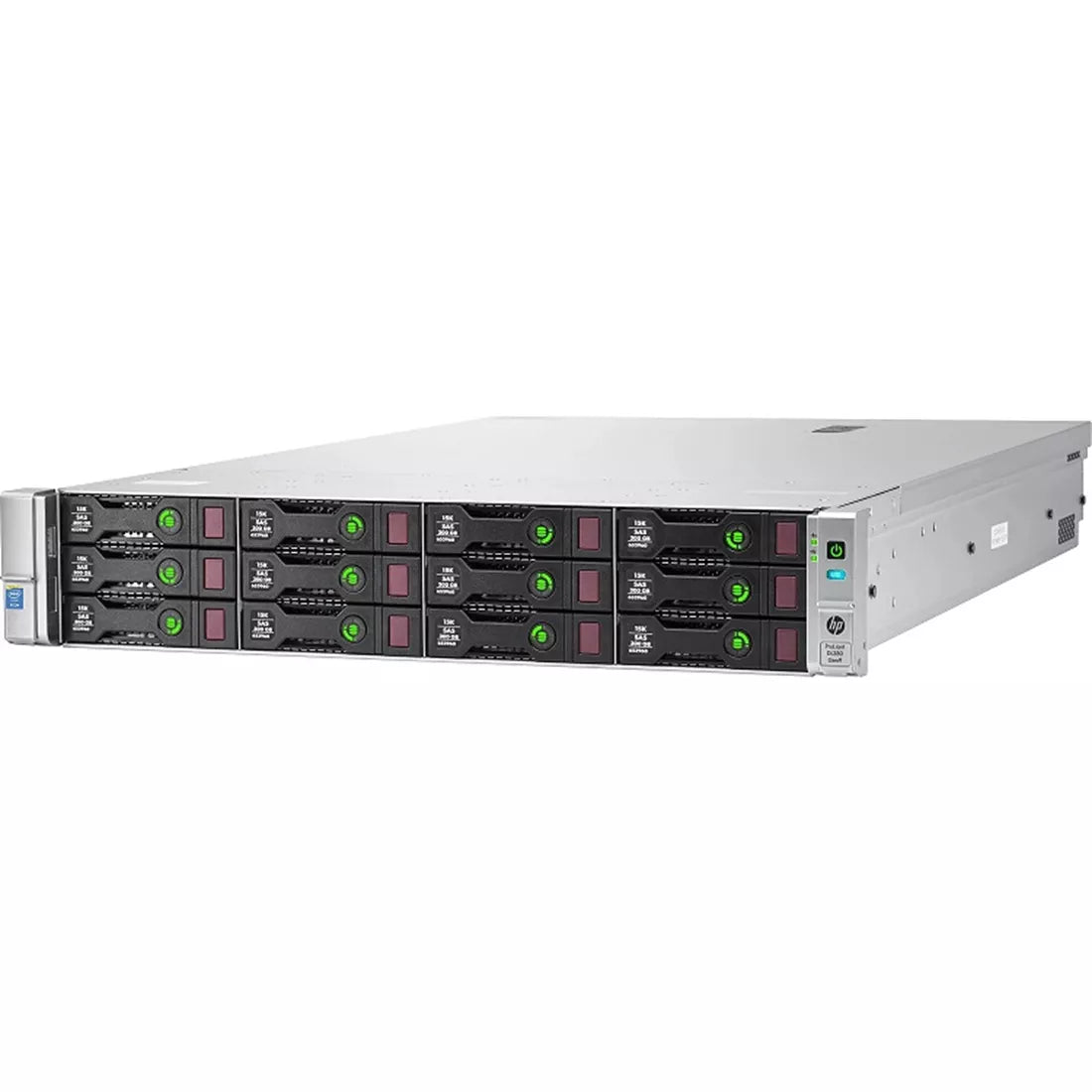

HPE 826683-B21 ProLiant DL380 G9 E5-2620V4/2.1GHz 16GBR 2U Rack Server | USED

HPE 826683-B21 ProLiant DL380 G9 E5-2620V4/2.1GHz 16GBR 2U Rack Server | USED

Part Number: 826683-B21

Condition: Used

#### HPE 826683-B21 Proliant Dl380 G9 Base Model - 1x Intel Xeon 8-core E5-2620v4/2.10ghz, 16gb(1x16) Ddr4 Sdram, HPE Flexible Smart Array P840ar/4g Controller, 12lff Hdd Bays, HPE Embedded 1gb Ethernet 4-port 331i Adapter, 2x 800w Ps, 2u Rack Server

**General Information :**

Manufacturer : HPE

Manufacturer Part Number : 826683-B21

Manufacturer Website Address : WWW.HPE.COM

Product Name: Proliant Dl380 G9 2u Rack Mountable Server (base Model)

**Processor & Chipset :**

Cpu : Intel Xeon E5-2620v4 / 2.10 Ghz

Number Of Cores : 8-core

Max Turbo Speed : 3.0 Ghz

Install Cpu Qty : 1

Max Cpu Qty : 2

Cpu Upgradability : Upgradable

Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2

**Cache Memory :**

Cache Memory Type : Smart Cache

Installed Size : 20mb

Cache Per Processor : 20mb

**Memory :**

Installed Size : 16 Gb / 384 Gb (max)

Technology : Ddr4 Sdram - Advanced Ecc

Memory Speed : 2133 Mhz

Memory Specification Compliance : Pc4-17000

Form Factor : Dimm 288-pin

Features : Registered, Online Spare Memory, Dual Rank, Quad Channel Memory Architecture, Hp Smartmemory

Configuration Features : 1 X 16 Gb

Ram Supported : Pc4-17000 - 384 Gb - Registered ¶ Pc4-17000 - 1.5 Tb - Load-reduced

**Storage :**

Hard Drive : None Ship Standard Include 12 Lff Hdd Bays

Optical Drive Type : None.

**Storage Controllers :**

Storage Controller Name : Smart Array P840ar/4g Controller

**Display & Graphics Controllers :**

Graphics Controller Type : Integrated Matrox G200eh2

Video Memory : 16 Mb

**Network & Communication :**

Ethernet Ports : 2 X 10 Gigabit Ethernet, 4 X Gigabit Ethernet

Ethernet Controller : Hp 331i

Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet

Remote Management Controller : Integrated Lights-out 4

Features : Wake On Lan (wol), Pxe Support

compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab

**Power Description :**

Device Type : Power Supply - Hot-plug

Power Redundancy : Yes

Power Redundancy Scheme : 1+1

Installed Qty : 2

Max Supported Qty : 2

Nominal Voltage : Ac 120/230 V

Power Provided : 800 Watt

80 Plus Certification : 80 Plus Platinum

efficiency : 94%

**Expansion/ Connectivity :**

expansion Bays Total (free) :

12 (total) / 12 (free) X Hot-swap 3.5lff

expansion Slots Total (free) :

2 (total) / 1 (free) X Cpu

24 (total) / 23 (free) X Dimm 288-pin

2 (total) / 2 (free) X Pcie 3.0 X16 - Half-length, Full-height ( X8 Mode )

2 (total) / 2 (free) X Pcie 3.0 X8 - Half-length, Full-height

1 (total) / 1 (free) X Microsd Card (internal)

2 (total) / 2 (free) X Pcie 3.0 X16 - Full-length, Full-height

interfaces & Ports :

4 X Lan (gigabit Ethernet)

1 X Hp Ilo

2 X Vga ( 1 Front, 1 Rear )

5 X Usb 3.0 ( 1 Front, 2 Rear, 2 Internal )

2 X Lan (10gigabit Ethernet)

2 X Usb 2.0 ( 2 In Front )

**Dimensions & Weight :**

Width : 17.5 Inch

Depth : 26.7 Inch

Height : 3.4 Inch

Weight : 32.5 Lbs
