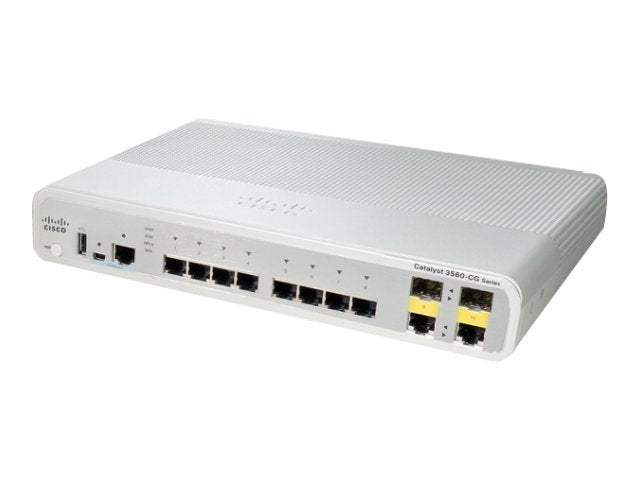

Cisco Catalyst Compact WS-C3560CG-8TC-S Managed Switch 8 Port | USED

Cisco Catalyst Compact WS-C3560CG-8TC-S Managed Switch 8 Port | USED

Part Number: WS-C3560CG-8TC-S

Condition: Used

**CISCO - Catalyst Compact 3560cg-8tc-s Managed Switch - 8 Ethernet Ports & 2 Shared Sfp Ports (WS-C3560CG-8TC-S).**

**Specifications :**

Device Type : Switch - 8 Ports - Managed

Enclosure Type : Desktop - 1u

Ports : 8 X 10/100/1000 + 2 X Shared Sfp

Performance : Forwarding Performance (64-byte Packet Size) : 13.2 Mpps Forwarding Performance : 10 Gbps

Capacity : Virtual Interfaces (vlans) : 255

Jumbo Frame Support : 9018

Routing Protocol : Ospf, Rip-1, Rip-2, Bgp, Ospfv2, Ospf For Ipv6

Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Http, Cli

Authentication Method : Kerberos, Secure Shell (ssh), Radius, Tacacs+

Features : Dhcp Support, Auto-negotiation, Bootp Support, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Syslog Support, Diffserv Support, Broadcast Storm Control, Ipv6 Support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (stp) Support, Dhcp Snooping, Dynamic Trunking Protocol (dtp) Support, Port Aggregation Protocol (pagp) Support, Trivial File Transfer Protocol (tftp) Support, Access Control List (acl) Support, Quality Of Service (qos), Dynamic Arp Inspection (dai), Stp Root Guard, Uni-directional Link Detection (udld), Fanless, Dhcp Relay, Remote Switch Port Analyzer (rspan)

Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ae, Ieee 802.1ab (lldp), Ieee 802.3at

Ram : 128 Mb

Flash Memory : 64 Mb

**Expansion / Connectivity :**

Interfaces : 10 X 10base-t/100base-tx/1000base-t - Rj-45 - Poe Usb : 1 X 4 Pin Usb Type A 1 X Console - Mini-usb Type B - Management 1 X Rs-232 - Rj-45 - Management 2 X Sfp (mini-gbic)

**Power :**

Power Device : Power Supply - Internal

Voltage Required : Ac 120/230 V ( 50/60 Hz )
