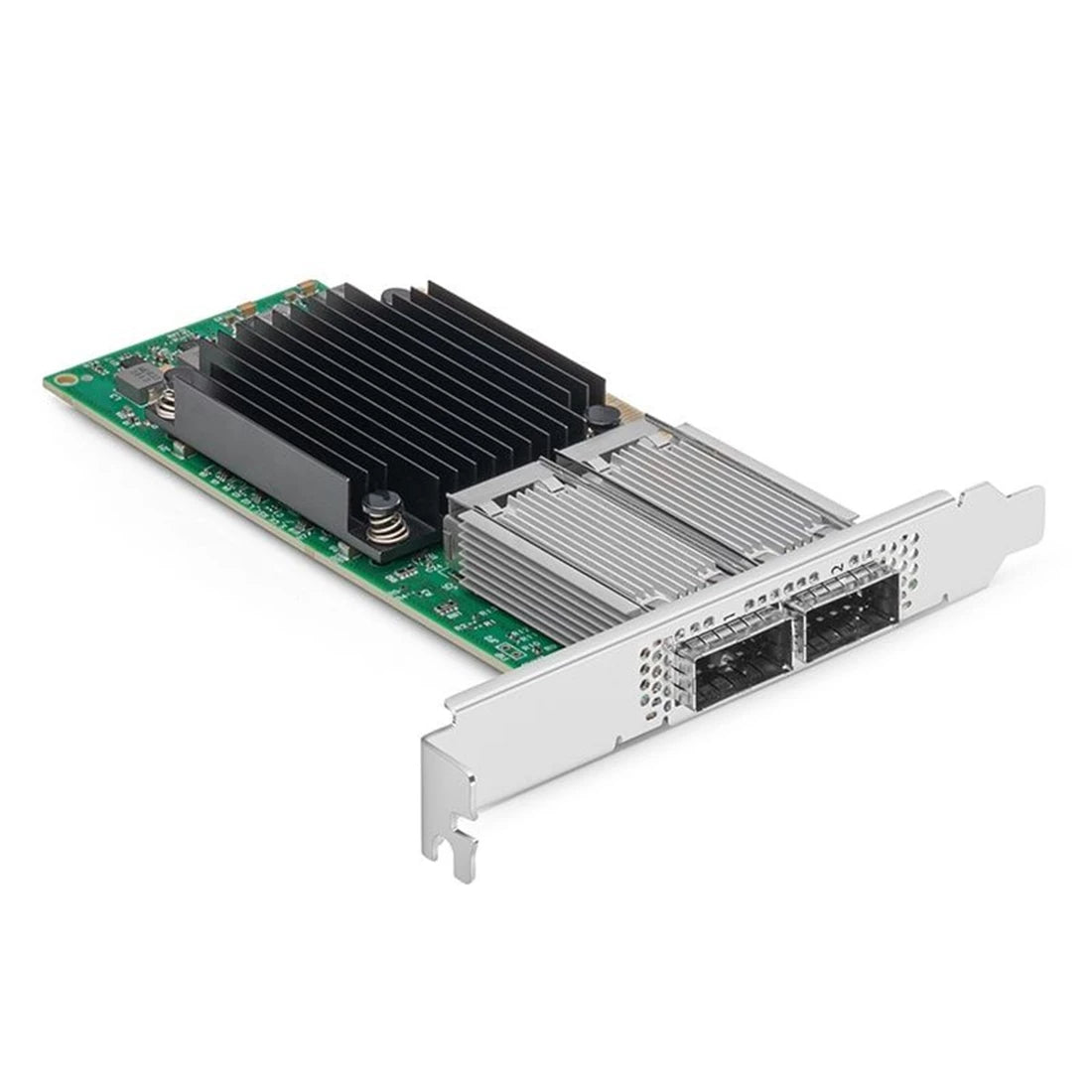

Dell 540-BCIU Mellanox MCX516A-CDAT ConnectX-5 Ex EN Network Interface Card 100GbE Dual-Port QSFP28 PCIe4.0 x16 ROHS R6 New | USED

Dell 540-BCIU Mellanox MCX516A-CDAT ConnectX-5 Ex EN Network Interface Card 100GbE Dual-Port QSFP28 PCIe4.0 x16 ROHS R6 New | USED

Part Number: 540-BCIU

Condition: Used

**DELL 540-BCIU Mellanox Mcx516a-cdat Connectx-5 Ex En Network Interface Card 100gbe Dual-port Qsfp28 Pcie4.0 X16 Rohs R6/b>**

**Features & Design:**

**The Connectx-5 Maximizes Performance With High Bandwidth, Low Latency, And Remarkable Computational Efficiency, Perfectly Suited For High-performance, Data-intensive, And Scalable Compute And Storage Platforms.**

**Adaptive Routing On Reliable Transport**
**Back-end Switch Elimination By Host Chaining**
**Embedded Pcie Switch**
**Industry-leading Throughput, Low Latency, Low Cpu Utilization, And High Message Rate**
**Maximizes Data Center Roi With Multi-host Technology**
**Innovative Rack Design For Storage And Machine**
**Intelligent Network Adapter Supporting Flexible Pipeline Programmability**
**Cutting-edge Performance In Virtualized Networks Including Network Function**
**Enabler For Efficient Service Chaining Capabilities**
**Efficient I/o Consolidation, Lowering Data Center Costs And Complexity**

**Tech Specifications:**

**Form Factor: Plug-in Card**

**Device Type: Network Adapter**

**Interface (bus) Type: Pci Express 4.0 X16**

**Pci Specification Revision: Pcie 4.0**

**Ports: 100 Gigabit Qsfp28 X 2**

**Data Transfer Rate: 100 Gbps**

**Connectivity Technology: Wired**

**Network / Transport Protocol: Tcp/ip, Udp/ip, Iscsi**

**Compliant Standards: Ieee 802.1q, Ieee 802.1p, Ieee 802.3ad (lacp), Ieee 802.3ae, Ieee 802.3ap, Ieee 802.3az, Ieee 802.3ba, Ieee 802.1ax, Ieee 802.1qbb, Ieee 802.1qaz, Ieee 802.1qau, Ieee 802.1qbg, Ieee 1588v2, Ieee 802.3bj, Ieee 802.3bm, Ieee 802.3by**

**Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet**

**Features: Auto-negotiation, Vlan Support, Quality Of Service (qos), Jumbo Frames Support, Rdma Support, Pxe Support, Large Send Offload (lso), Large Receive Offload (lro), Receive Side Scaling (rss), Uefi Support, Transmit Side Scaling (tss), Rdma Over Converged Ethernet (roce), Extended Reliable Connected Transport (xrc), Dynamically Connected Transport (dct), On Demand Paging (odp)**

**Interfaces: 2 X 100gb Ethernet - Qsfp28**

**Compliant Standards: Rohs**

**Depth: 5.6 In**

**Height: 2.7 In**
