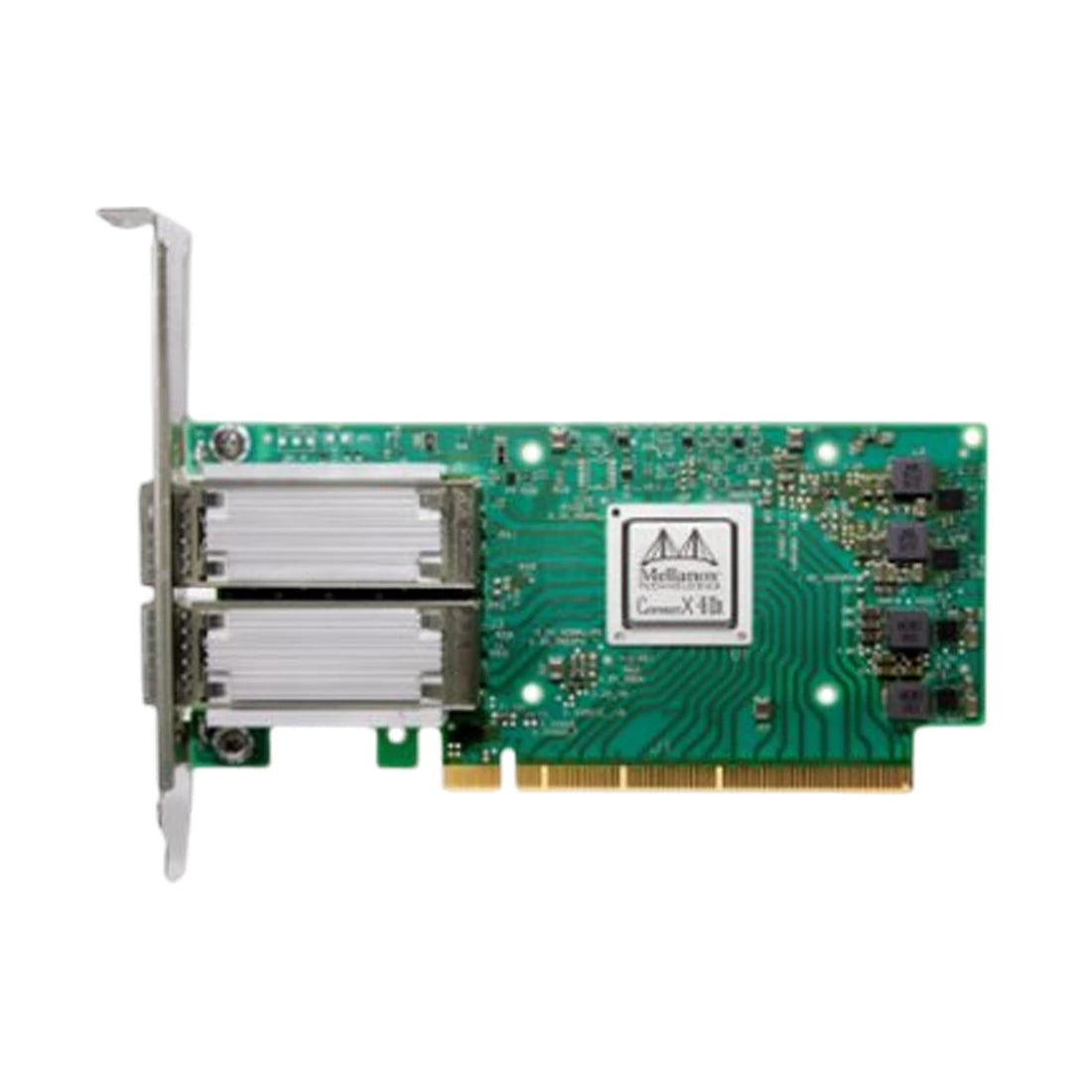

Dell Y53CK Mellanox ConnectX-6 Dx MCX623106AN-CDAT Network Adapter PCIe 4.0 x16 100 Gigabit QSFP56 x 2 | USED(MELLANOX GENERIC)

Dell Y53CK Mellanox ConnectX-6 Dx MCX623106AN-CDAT Network Adapter PCIe 4.0 x16 100 Gigabit QSFP56 x 2 | USED(MELLANOX GENERIC)

Part Number: Y53CK

Condition: Used(MELLANOX GENERIC)

**DELL Y53CK Mellanox Connectx-6 Dx Mcx623106an-cdat Network Adapter Pcie 4.0 X16 100 Gigabit Qsfp56 X 2**

**Overview:** Nvidia Connectx-6 Dx Is A Highly Secure And Advanced Smart Network Interface Card (smartnic) To Accelerate Mission-critical Data Center Applications, Such As Security, Virtualization, Sdn/nfv, Big Data, Machine Learning, And Storage. It Provides Up To Two Ports Of 100gb/s Or A Single-port Of 200gb/s Ethernet Connectivity And The Highest Roi Of Any Smartnic

Connectx-6 Dx Is Powered By Leading 50gb/s (pam4) And 25/10 Gb/s (nrz) Serdes Technology And Novel Capabilities That Accelerate Cloud And Data Center Payloads.

**Specifications**

**Device Type:** Network Adapter

**Form Factor:** Plug-in Card

**Interface (bus) Type:** Pci Express 4.0 X16

**Pci Specification Revision:** Pcie 1.1, Pcie 2.0, Pcie 3.0, Pcie 4.0

**Ports** 100 Gigabit Qsfp56 X 2

**Connectivity Technology** Wired

**Data Link Protocol:** 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet

**Data Transfer Rate** 100 Gbps

**Network / Transport Protocol** Tcp/ip, Udp/ip, Ipsec, Smb

**Features** Firewall Protection, Mpls Support, Dos Attack Prevention, Firmware Upgradable, Quality Of Service (qos), Pxe Support, Large Send Offload (lso), Large Receive Offload (lro), Receive Side Scaling (rss), Uefi Support, Single Root I/o Virtualization (sr-iov), Energy Efficient Ethernet, Advanced Error Reporting (aer), Checksum Offload Support, Extended Message-signaled Interrupts (msi-x), Iscsi Remote Boot, Ethernet Remote Boot, Transmit Side Scaling (tss), Rdma Over Converged Ethernet (roce), Network Controller Sideband Interface (nc-si), Virtual Extensible Lan (vxlan), Network Virtualization Using Generic Routing Encapsulation (nvgre), Link Aggregation, Tlp Processing Hint (tph), Software Defined Networking (sdn), Message Signaled Interrupts (msi), Data Plane Development Kit (dpdk), Iscsi Extensions Over Rdma (iser), Vlan Tagging, Accelerated Switching And Packet Processing (asap), Mctp Over Smbus, Network Function Virtualization (nfv), Geneve Support, Nvme Over Fabrics (nvme-of)

**Compliant Standards** Ieee 802.1q, Ieee 802.1p, Ieee 802.3ad (lacp), Ieee 802.3ae, Ieee 802.3ap, Ieee 802.3az, Ieee 802.3ba, Ieee 802.1ax, Ieee 802.1qbb, Ieee 802.1qaz, Ieee 802.1qbg, Ieee 1588v2, Ieee 802.3bj, Ieee 802.3by, Ieee 802.3cd

**Encryption Algorithm** Tls, 256-bit Aes-gcm, 128-bit Aes-gcm, Aes-xts
