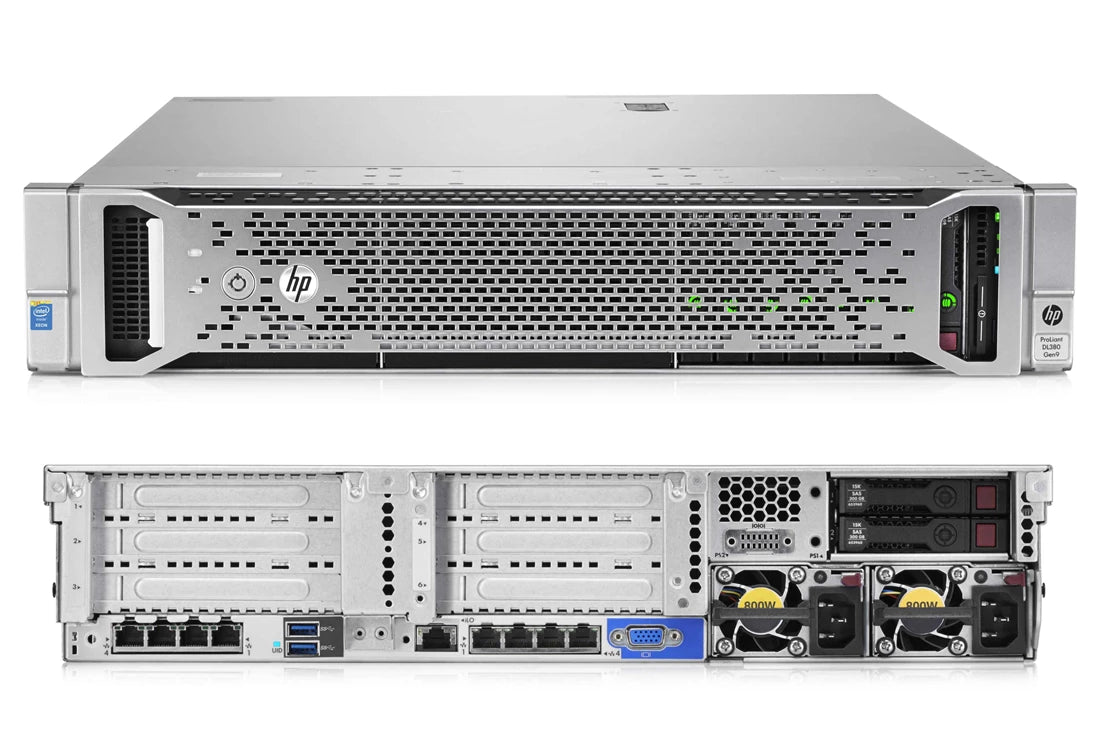

HPE 852432-B21 DL380 Gen9 E5-2660v4 2P 64GB-R P440ar 8SFF 361T 2x800W Perf Server NEW | USED

HPE 852432-B21 DL380 Gen9 E5-2660v4 2P 64GB-R P440ar 8SFF 361T 2x800W Perf Server NEW | USED

Part Number: 852432-B21

Condition: Used

**General Information :**

Manufacturer : Hewlett Packard Enterprise

Manufacturer Part Number : 852432-B21

Manufacturer Website Address : WWW.HPE.COM

Product Name: Proliant Dl380 G9 - 2u Rack Mountable Server ( Performance Model)

**Processor & Chipset :**

Cpu : Intel Xeon E5-2660v4 / 2 Ghz

Max Turbo Speed : 3.2 Ghz

Number Of Cores : 14-core

Cpu Qty : 2

Max Cpu Qty : 2

Cpu Upgradability : Upgradable

Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2

Cache Memory :

Cache Memory Type : Smart Cache

Installed Size : 70 Mb

Cache Per Processor : 35 Mb

**Memory :**

Installed Size : 64 Gb / 768 Gb (max)

Technology : Ddr4 Sdram - Advanced Ecc

Memory Speed : 2133 Mhz

Memory Specification Compliance : Pc4-17000

Form Factor : Dimm 288-pin

Features : Registered, Online Spare Memory, Quad Channel Memory Architecture, Hp Smartmemory

Configuration Features : 4 X 16 Gb

Ram Supported : Pc4-17000 - 768 Gb - Registered ¦ Pc4-17000 - 1.5 Tb - Load-reduced

**Storage & Storage Controller :**

Hard Drive : None.

Optical Drive Type : Dvd-rw - Sata.

**Storage Controllers:**

Storage Controller Name : Smart Array P440ar

Buffer Size : 2 Gb

Disk Drive : 12gb/s Sas / 6gb/s Sata

Sas Port Link Rate : 12gb/s Per Physical Link Supported

Pcie Link Rate : Pci Express 3.0 X8 (pcie3 X8)

Physical Drives : Up To 26 Drives

Logical Drives Supported : Up To 64 Logical Drives

Raid Support : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm

**Display & Graphics Controllers :**

Graphics Controller Type : Integrated Matrox G200eh2

Video Memory : 16 Mb

**Network & Communication:**

Ethernet Ports : 2 X 10 Gigabit Ethernet, 4 X Gigabit Ethernet

Ethernet Controller : Hp 331i

Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet

Remote Management Controller : Integrated Lights-out 4

Features : Wake On Lan (wol), Pxe Support

Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab

**Expansion/ Connectivity :**

Expansion Bays Total (free) :

8 (total) / 8 (free) X Hot-swap 2.5 Sff

1 (total) / 0 (free) X External 5.25

Expansion Slots Total (free) :

2 (total) / 0 (free) X Cpu

24 (total) / 20 (free) X Dimm 288-pin

2 (total) / 2 (free) X Pcie 3.0 X16 - Half-length, Full-height ( X8 Mode )

2 (total) / 2 (free) X Pcie 3.0 X8 - Half-length, Full-height

1 (total) / 1 (free) X Microsd Card (internal)

2 (total) / 2 (free) X Pcie 3.0 X16 - Full-length, Full-height

Interfaces & Ports :

4 X Lan (gigabit Ethernet)

1 X Hp Ilo

2 X Vga ( 1 Front, 1 Rear )

5 X Usb 3.0 ( 1 Front, 2 Rear, 2 Internal )

2 X Lan (10gigabit Ethernet)

2 X Usb 2.0 ( 2 In Front )

**Power Description :**

Device Type : Power Supply - Hot-plug

Power Redundancy : Yes

Power Redundancy Scheme : 1+1

Installed Qty : 2

Max Supported Qty : 2

Nominal Voltage : Ac 120/230 V

Power Provided : 800 Watt

80 Plus Certification : 80 Plus Platinum

Efficiency : 94%

**Dimensions & Weight :**

Width : 17.5 Inch

Depth : 26.7 Inch

Height : 3.4 Inch

Weight : 32.5 Lbs

**Availability : In Stock**
