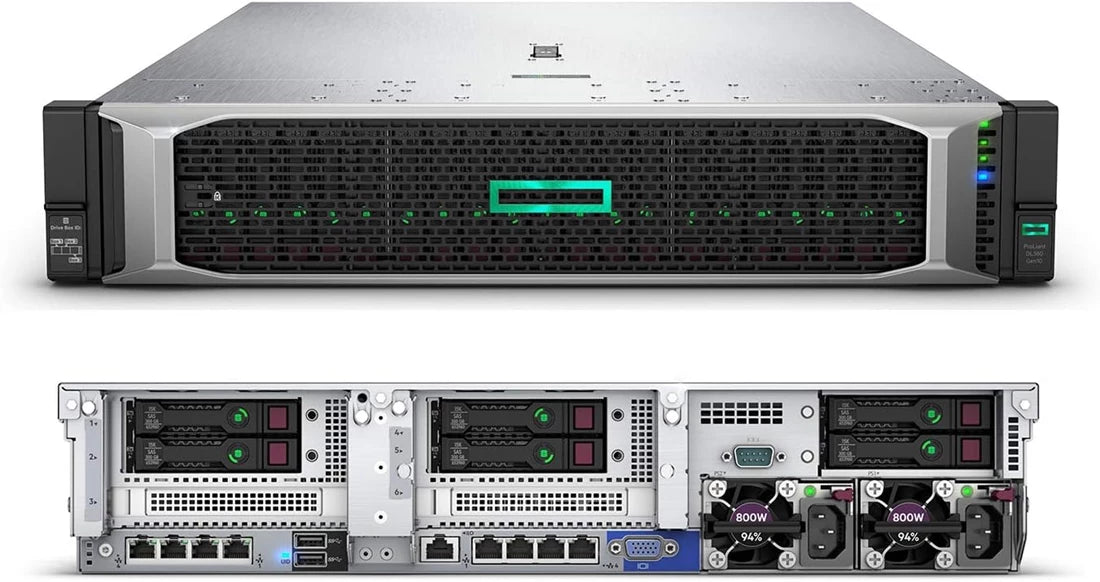

HPE 875765-S01 DL380 Gen10 6132 2P 64GB-R P408i-a 8SFF 2x800W PS Server/S-Buy | USED

HPE 875765-S01 DL380 Gen10 6132 2P 64GB-R P408i-a 8SFF 2x800W PS Server/S-Buy | USED

Part Number: 875765-S01

Condition: Used

**General Information :**

Manufacturer : Hewlett Packard Enterprise

Manufacturer Part Number : 875765-S01

Manufacturer Website Address : WWW.HPE.COM

Product Name : Proliant Dl380 Gen10 - 2u Rack Mountable Server ( Smb Nc Model)

**Processor & Chipset :**

Cpu : 1st Gen Intel Xeon Gold 6132 / 2.6 Ghz

Max Turbo Speed : 3.7 Ghz

Number Of Cores : 14-core

Cpu Qty : 2

Max Cpu Qty : 2

Cpu Upgradability : Upgradable

Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2

Cpu Socket : Fclga3647 Socket

Chipset Type : Intel C621

Cache Memory :

Installed Size : L3 Cache - 38.5 Mb

Cache Per Processor : 19.25 Mb

**Memory :**

Installed Size : 64 Gb / 768 Gb (max)

Technology : Ddr4 Sdram

Effective Memory Speed : 2666 Mhz

Rated Memory Speed : 2666 Mhz

Memory Specification Compliance : Pc4-20800

Form Factor : Dimm 288-pin

Slots : 24 (total) / 20 (empty)

Features : Registered, Dual Rank, Hp Smartmemory, 6-channel Memory Architecture

Configuration Features : 4 X 16 Gb

Ram Supported : Pc4-20800 - 768 Gb Registered Pc4-20800 - 1.5 Tb Load-reduced

**Storage Controllers:**

Type : 1 X Raid

Controller Interface Type : Sata 6gb/s / Sas 12gb/s

Storage Controller Name : HPE Smart Array P408i-a

Channel Qty : 8

Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm

Buffer Size : 2 Gb

**Graphics Controller :**

Video Memory : 16 Mb

Video Interfaces : Vga

**Network & Communication:**

Ethernet Ports : 4 X Gigabit Ethernet

Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet

Remote Management Protocol : Snmp 3, Ipmi 2.0, Smash Clp

Remote Management Controller : Integrated Lights-out 5

Features : Wake On Lan (wol), Pxe Support

**Expansion / Connectivity :**

Bays :

1 (total) / 1 (free) X External

8 (total) / 8 (free) X Hot-swap 2.5 Sff

Slots :

2 (total) / 0 (free) X Cpu

24 (total) / 20 (free) X Dimm 288-pin

1 (total) / 1 (free) X Flexiblelom

2 (total) / 2 (free) X Pcie 3.0 X16 - Half-length, Full-height

4 (total) / 4 (free) X Pcie 3.0 X8 - Half-length, Full-height

1 (total) / 1 (free) X Microsd Card (internal)

Interfaces :

4 X Lan (gigabit Ethernet) - Rj-45

1 X Hp Ilo - Rj-45 (1 Rear)

1 X Vga (1 Rear)

8 X Sata-600 / Sas 3.0

1 X Hp Ilo - Type A (1 In Front)

5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal)

**Miscellaneous :**

Included Accessories :

HPE Easy Install Rails

6 X Standard Hot Plug Fans

High-performance Heatsink

Compliant Standards :

Aes, Fips 140-2, Ipv6 Ready, Pci Dss, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Acpi 6.1

Manufacturer Selling Program :

HPE Smart Buy

**Power Description :**

Device Type : Power Supply - Hot-plug

Power Redundancy : Optional

Power Redundancy Scheme : 1+1 (with Optional Power Supply)

Installed Qty : 2

Max Supported Qty : 2

Nominal Voltage : Ac 120/230 V (50/60 Hz)

Power Provided : 800 Watt

80 Plus Certification : 80 Plus Platinum

**Dimensions & Weight :**

Width : 17.5 In

Depth : 26.7 In

Height : 3.4 In

Weight : 32.85 Lbs
