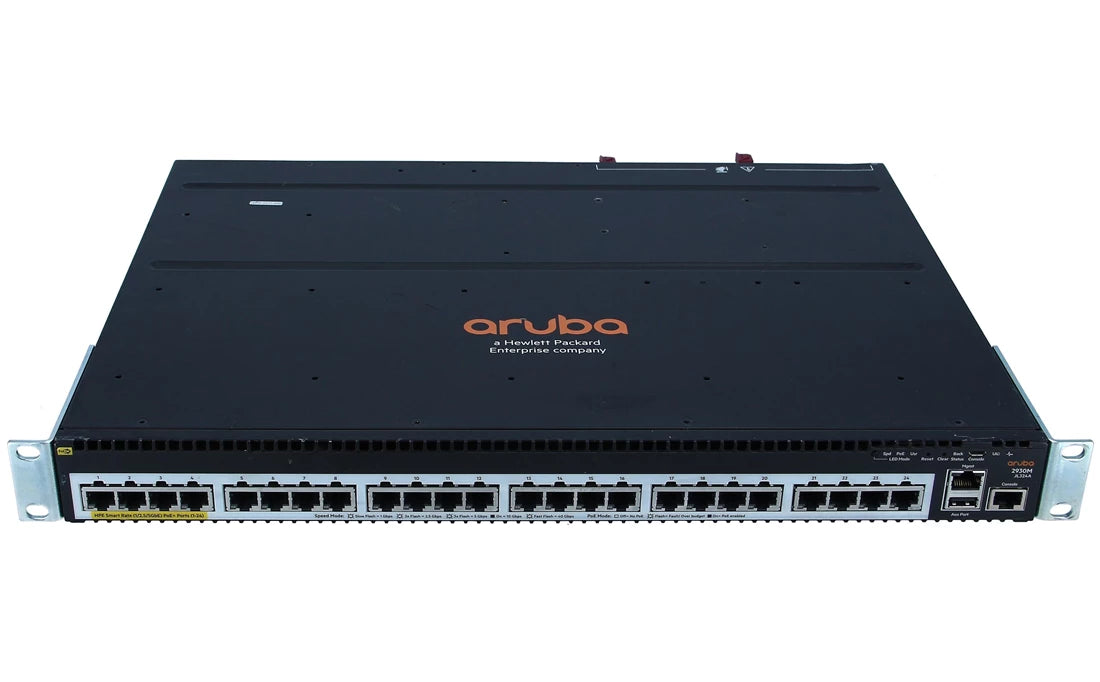

HPE JL324A\#ABA Aruba 2930M 24p Smart Rate PoE+ 840W 1-Slot Switch NEW | USED

HPE JL324A\#ABA Aruba 2930M 24p Smart Rate PoE+ 840W 1-Slot Switch NEW | USED

Part Number: JL324A

Condition: Used

**HPE JL324A#ABA Aruba 2930m 24 Smart Rate Poe+ 1-slot - Switch - L3 - Managed - 24 X 1/2.5/5gbase-t Poe+ - Rack-mountable - Poe+ (860 W) (no Psu):**

**Key Features :**

Device Type : Switch - 24 Ports - L3 - Managed - Stackable

Enclosure Type : Rack-mountable 1u

Subtype : 5 Gigabit Ethernet

Ports : 24 X 1/2.5/5gbase-t Poe+

Power Over Ethernet (poe) : Poe+

Poe Budget : 860 W

Performance : Latency (1 Gbps): 3.1 Μs ¦ Latency (2.5 Gbps): 6.5 Μs ¦ Latency (5 Gbps): 4.2 Μs ¦ Latency (10 Gbps): 3.4 Μs ¦ Throughput: 112 Mpps ¦ Stacking Bandwidth: 100 Gbps ¦ Switching Capacity: 320 Gbps

Capacity : Ipv4 Routing Table Entries: 2000 ¦ Ipv6 Routing Table Entries: 1000 ¦ Ospf Routes: 200 ¦ Rip Routes: 10000 ¦ Static Routes: 256

Mac Address Table Size : 32768 Entries

Jumbo Frame Support : 9220 Bytes

Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Igmpv2, Igmp, Ospfv2, Static Ip Routing, Igmpv3, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ecmp, Ripng, Mld, Cidr

Remote Management Protocol : Snmp 1, Snmp 2, Rmon 1, Snmp, Telnet, Snmp 3, Snmp 2c, Http, Ssh, Ssh-2, Cli, Xrmon

Encryption Algorithm : Md5, Ssl, Tls

Authentication Method : Radius, Pap, Chap, Tacacs, Tacacs+, Secure Shell V.2 (ssh2), Extensible Authentication Protocol (eap)

Features : Flow Control, Full Duplex Capability, Dhcp Support, Bootp Support, Arp Support, Vlan Support, Igmp Snooping, Syslog Support, Diffserv Support, Ipv6 Support, Sntp Support, Sflow, Spanning Tree Protocol (stp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Dhcp Server, Mld Snooping, Stp Root Guard, Uni-directional Link Detection (udld), Lldp Support, Link Aggregation Control Protocol (lacp), Management Information Base (mib), Mac Address Lockout, Dynamic Arp Protection, Dhcp Protection, Dynamic Vlan Support (gvrp), Multiple Vlan Registration Protocol (mvrp), Neighbor Discovery Protocol (ndp), Class Of Service (cos), Type Of Service (tos), Openflow Support, Cpu Protection, Internet Control Message Protocol (icmp), Icmp Router Discovery Protocol (irdp), Virtual Extensible Lan (vxlan), Management Information Base (mib) Ii, Lldp-med, Stp Bpdu Guard

Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ad, Ieee 802.1v, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.1ax, Ieee 802.3bz

Processor : 1 X Arm Cortex-a9: 1.016 Ghz

Ram : 1 Gb Ddr3 Sdram

Flash Memory : 4 Gb

**Expansion / Connectivity :**

Interfaces :

24 X 1/2.5/5gbase-t Poe+

1 X Serial (console)

1 X Usb Type B

1 X 1000base-t Management

Expansion Slots :

1 (total) / 1 (free) X Stacking Module Slot

1 (total) / 1 (free) X Expansion Slot

**Power :**

Power Device : Internal Power Supply (not Installed)

Max Supported Qty : 2

Voltage Required : Ac 120/230 V (50/60 Hz)
